Reverb Bump
Brand New
About This Listing
Package includes:
• (6) PM-16 Personal Monitor Mixers
• (1) IM-16A Digital Input Module
• (6) PM16PS Power Supplies
• (6) 25' CAT5e Cables
• (1) 200' CAT5e Cables
The
PM16-CORE-DIGITAL packages contain everything needed to setup and
operate a complete in-ear monitoring system using a digital console’s
ADAT digital outputs to control channel assignments. The immensely

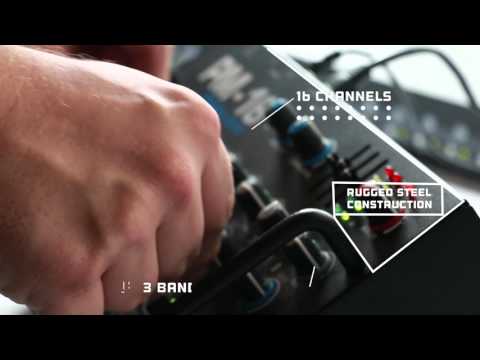

popular PM-16 mixer features sixteen channels with dedicated volume and
pan knobs, master volume and EQ, an ambient microphone, and much more.
The
PM-16 features volume and pan control plus a signal present LED for all
sixteen channels. A personal ambient microphone is built into each
mixer as well as a graphic EQ, compressor, and master volume. Neutrik
Ethercon connectors and full rack mount functionality insure that the
Elite Core system will make its way to pro stages worldwide. Dan
Garrett, president of Pivitec and Co-Founder at Aviom, said “This mixer
embodies everything that the market has longed for in personal mixers.
The feature set and build quality is substantial and impressive.”
Features:
• Ambient Mic
• Compression
• 3 Band Master EQ
• Individual Volume and Pan Knobs per channel
• Signal present LED per channel
• Steel Construction
• Neutrik etherCON Cat-5e connections
• Power over Ethernet (PoE) or Local power
• Optional Rack Kit or Mic Stand Mount
• Made in the USA
The
IM-16A is a 16-channel ADAT to PM-16 Interface. Use the IM-16A to
convert signals from ADAT optical sources such as mixing consoles,
microphone preamps, Analog to Digital converters, and DAW interfaces.
The data received by the two 8 channel ADAT optical inputs are combined
and sent to the audio network as a single 16 channel Elite Core PM-16
data stream.
Features:
• 2 x ADAT Optical Inputs
• Network Out feeds PM-16 Systems
• Word Clock Sync
• Rugged aluminum chassis with black anodized finish
• Power from external 48VDC supply or PoE (802.3af)
• Made in the USA
Dimensions:
1..2 x 4.06 x 6.64 inches
Power:
802.3af PoE or 48VDC/.63A Adapter
Sampling Frequency:
48kHz
Audio Data Format:
24 bit
Connectors:
RJ45 Network Connector
2 x ADAT Optical Connectors
Network:
Ethernet 10/100 network interface
• (6) PM-16 Personal Monitor Mixers
• (1) IM-16A Digital Input Module
• (6) PM16PS Power Supplies
• (6) 25' CAT5e Cables
• (1) 200' CAT5e Cables
The
PM16-CORE-DIGITAL packages contain everything needed to setup and
operate a complete in-ear monitoring system using a digital console’s
ADAT digital outputs to control channel assignments. The immensely
popular PM-16 mixer features sixteen channels with dedicated volume and
pan knobs, master volume and EQ, an ambient microphone, and much more.
The
PM-16 features volume and pan control plus a signal present LED for all
sixteen channels. A personal ambient microphone is built into each
mixer as well as a graphic EQ, compressor, and master volume. Neutrik
Ethercon connectors and full rack mount functionality insure that the
Elite Core system will make its way to pro stages worldwide. Dan
Garrett, president of Pivitec and Co-Founder at Aviom, said “This mixer
embodies everything that the market has longed for in personal mixers.
The feature set and build quality is substantial and impressive.”
Features:
• Ambient Mic
• Compression
• 3 Band Master EQ
• Individual Volume and Pan Knobs per channel
• Signal present LED per channel
• Steel Construction
• Neutrik etherCON Cat-5e connections
• Power over Ethernet (PoE) or Local power
• Optional Rack Kit or Mic Stand Mount
• Made in the USA
The
IM-16A is a 16-channel ADAT to PM-16 Interface. Use the IM-16A to
convert signals from ADAT optical sources such as mixing consoles,
microphone preamps, Analog to Digital converters, and DAW interfaces.
The data received by the two 8 channel ADAT optical inputs are combined
and sent to the audio network as a single 16 channel Elite Core PM-16
data stream.
Features:
• 2 x ADAT Optical Inputs
• Network Out feeds PM-16 Systems
• Word Clock Sync
• Rugged aluminum chassis with black anodized finish
• Power from external 48VDC supply or PoE (802.3af)
• Made in the USA
Dimensions:
1..2 x 4.06 x 6.64 inches
Power:
802.3af PoE or 48VDC/.63A Adapter
Sampling Frequency:
48kHz
Audio Data Format:
24 bit
Connectors:
RJ45 Network Connector
2 x ADAT Optical Connectors
Network:
Ethernet 10/100 network interface
$2,529.99
Free Shipping
As low as $82/month with
1
2 in stock
