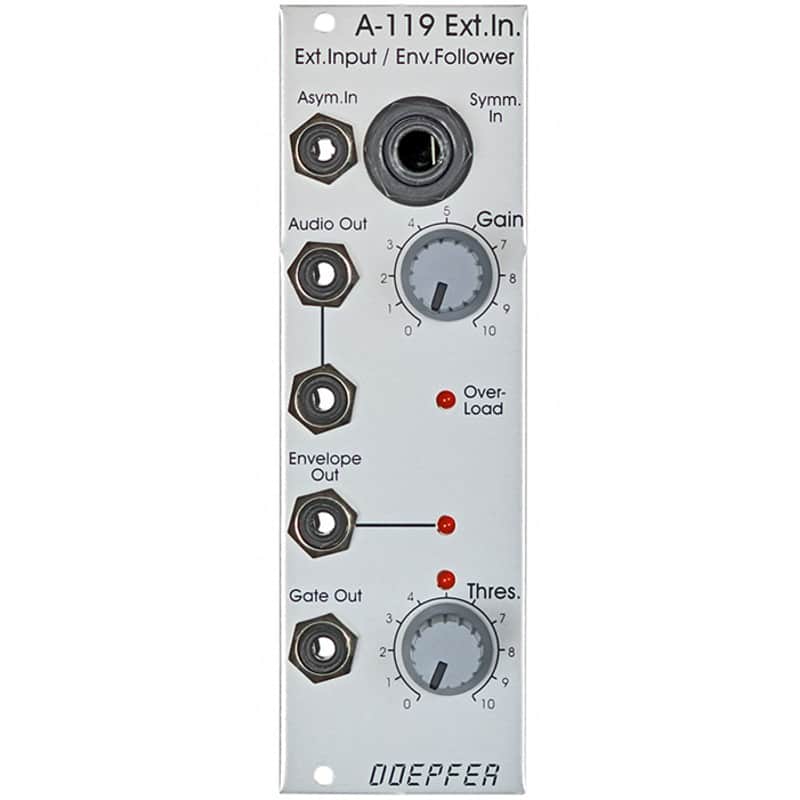

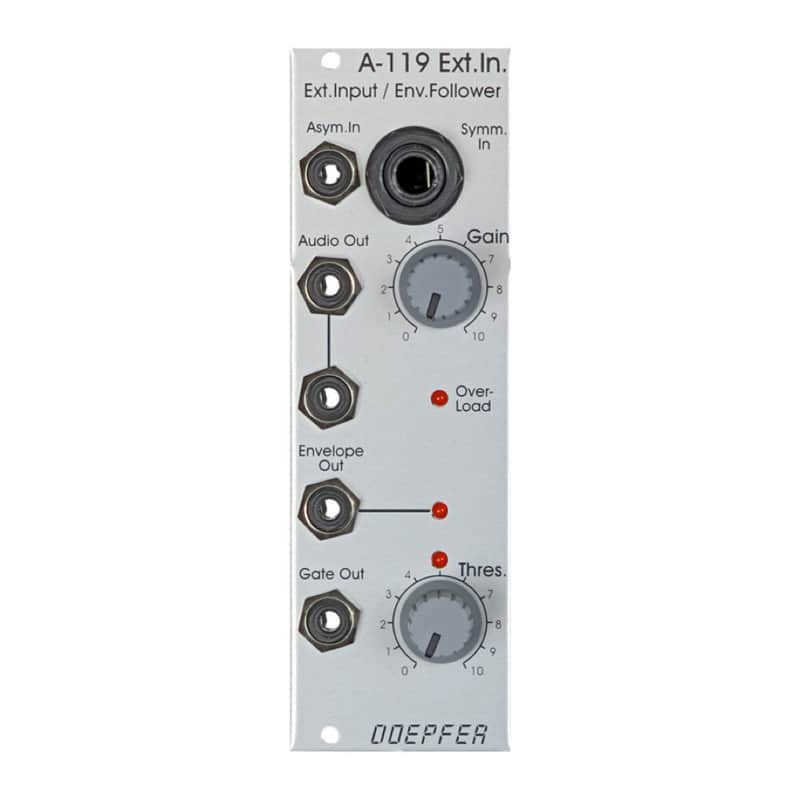

MAY NOT COME WITH BOXManufacturer Description: module a-119 (external input / envelope follower) is designed to allow external audio signals to be integrated into the system a-100. it comprises a pre-amp, envelope follower, and comparator. the pre-amp has two inputs: an unbalanced input for line level signals, with a gain factor of from 0 to 20, and a balanced input with a gain factor of from 0 to 500, for insertion of low level signals, for instance from a microphone or electric guitar. the envelope follower reads the signal level of the input, and puts out a proportional voltage as an envelope at its own output. the comparator generates a gate signal whenever the input goes above an adjustable trigger threshold. three leds help you keep track of overload, the envelope, and the gate signal. this module has a maximum current draw of 30ma. it requires 8 te/hp worth of space to fit in a eurorack frame.
Price€106.37
Incl. VAT
+ Shipping
