SIMPLY SOPHISTICATED

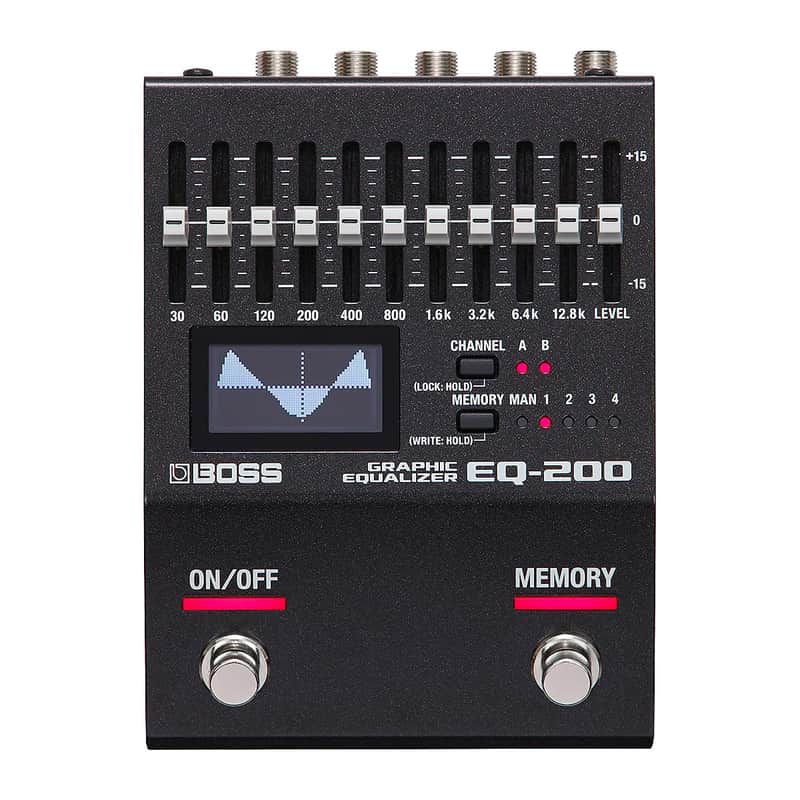

The EQ-200 is the most flexible compact EQ ever created for guitar and bass. It features two wide-ranging 10-band EQ channels, plus an onboard graphic display that shows the current EQ curve at a glance. Selectable signal flow structures configure the channels for stereo, parallel, or series operation, and it’s even possible to patch in external pedals for deep pre/post tone shaping. Going further, the frequency centers of all 10 bands can be set to three different types, letting you optimize the EQ-200’s performance for different instruments.
More
Dual 10-Band EQs with Adjustable RangeWith its refined design, 32-bit/96 kHz engine, and ultra-low noise specs, the EQ-200 delivers precision tonal control with superior audio quality. Up to 15 dB of cut or boost is available on each band, and each channel has a level slider for balancing with the bypass sound or kicking in a solo boost when needed. The center frequency configuration of the bands can also be set to one of three types, letting you optimize the EQ-200’s equalization for all types of instruments, from electric and acoustic guitars to bass, keyboards, and beyond.Flexible Signal Flow and Pre/Post FX InsertThe EQ-200’s variable signal flow structure offers an uncommon level of versatility in sculpting sounds. The A and B channels can be linked together or used independently, and you can also patch in an external pedal (or a chain of pedals) for pre-EQ and/or post-EQ processing.
Save and Recall Your Favorite SetupsThe EQ-200 features 127 user memories plus a real-time panel setting, giving you 128 total setups to choose from. Any range of consecutive memories and the panel setting can be assigned for scrolling access from a footswitch.Deep Real-Time ControlBy default, the EQ-200’s footswitches control EQ bypass and memory scrolling, but you can reassign them to turn channels on/off, select specific memories, and more. Control is also possible via external footswitches, and these are freely assignable as well. Alternately, you can connect an expression pedal to control A or B channel levels, or even the overall output (a handy stand-in for a volume pedal).
Features
Class-leading sound quality with 32-bit AD/DA, 32-bit floating point processing, and 96 kHz sampling rate
Dual 10-band EQs that can be used in stereo, parallel, or series
Insert function for processing external effects with pre and/or post tone shaping
Three different range settings: 30 Hz to 12.8 kHz, 32 Hz to 16 kHz, and 28 Hz to 14 kHz
15 dB boost/cut on each band, plus overall level control for each channel
Stereo link function for operating both EQ channels together
Intuitive interface with hands-on sliders and graphic EQ display
Access 128 user setups from the panel or MIDI program change
Recall consecutive memories plus real-time panel setting via footswitch or dedicated panel button
Panel Lock function disables controls to prevent unwanted changes
Two onboard footswitches with customizable assignments
Support for expanded control via external footswitches, an expression pedal, or MIDI
Full MIDI I/O provided with mini TRS jacks (BMIDI-5-35 adaptor cable available separately)
Micro USB jack for firmware updates
Runs on PSA-series AC adaptor or three AA-size batteries
Specs
Sampling Frequency: 96 kHz
AD/DA Conversion: 32 bits
Processing: 32-bit floating point
Memory: 127 + Manual
Nominal Input Level: INPUT A/MONO, B: -10 dBu
Maximum Input Level: INPUT A/MONO, B: +7 dBu
Input Impedance: INPUT A/MONO, B: 2 M ohm
Nominal Output Level: OUTPUT A/MONO, B: -10 dBu
Maximum Output Level: OUTPUT A/MONO, B: +7 dBu
Output Impedance: OUTPUT A/MONO, B: 1 k ohms
Recommended Load Impedance: OUTPUT A/MONO, B: 10 k ohms or greater
Bypass: Buffered bypass
Controls: ON/OFF switch, MEMORY switch, 30--12.8 k sliders, LEVEL slider, A/B button, MEMORY button
Display: Graphic LCD (64 x 32 dots, backlit LCD)
Indicator: A/B indicator, MEMORY (MAN, 1--4) indicators
Connectors: INPUT (A/MONO, B) jacks, OUTPUT (A/MONO, B) jacks: 1/4-inch phone type, CTL 1, 2/EXP jack: 1/4-inch TRS phone type, MIDI (IN, OUT) jacks: Stereo miniature phone type, DC IN jack, USB port: USB micro-B type (program update only)
Power Supply: Alkaline battery (AA, LR6) x 3, AC adaptor (sold separately)
Current Draw: 170 mA
Expected Battery Life Under Continuous Use: Alkaline: Approx. 7 Hours, * These figures will vary depending on the actual conditions of use.
Accessories: Owner's Manual, Leaflet "USING THE UNIT SAFELY", Alkaline battery (AA, LR6) x 3, Rubber foot x 4
Options (sold separately): AC adaptor: PSA-S series, Footswitch: FS-5U, Dual footswitch: FS-6, FS-7, Expression pedal: FV-500H, FV-500L, EV-30, Roland EV-5, TRS/MIDI cable: BMIDI-5-35
Width: 101 mm, 4 inches
Depth: 138 mm, 5-7/16 inches
Height: 60 mm, 2-3/8 inches
Height (including rubber foot): 62 mm, 2-1/2 inches
Weight: 630 g, 1 lb 7 oz
Weight (including battery):700 g, 1 lb 9 oz
