About this listing

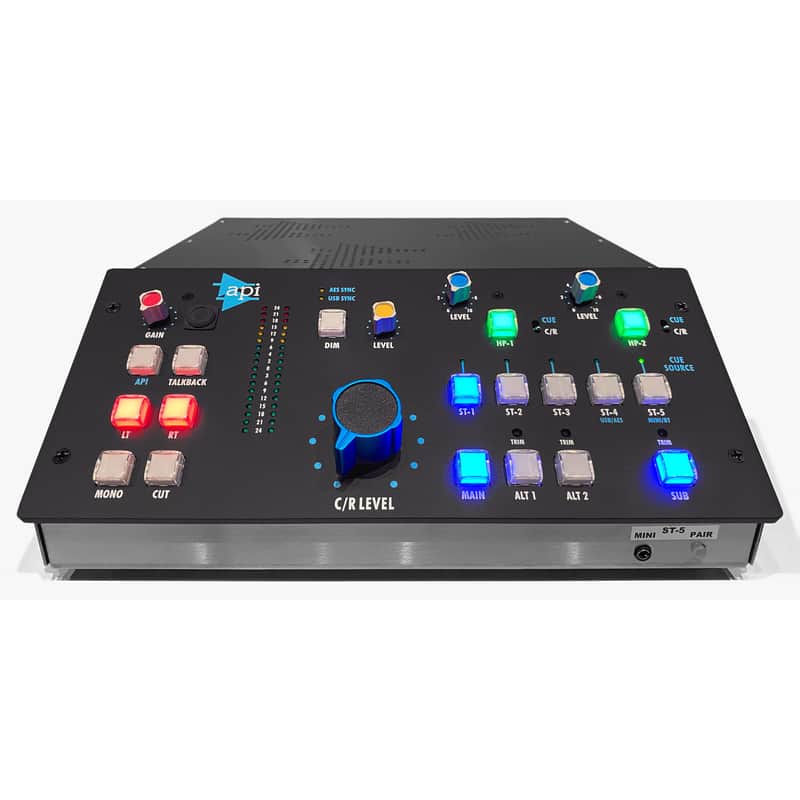

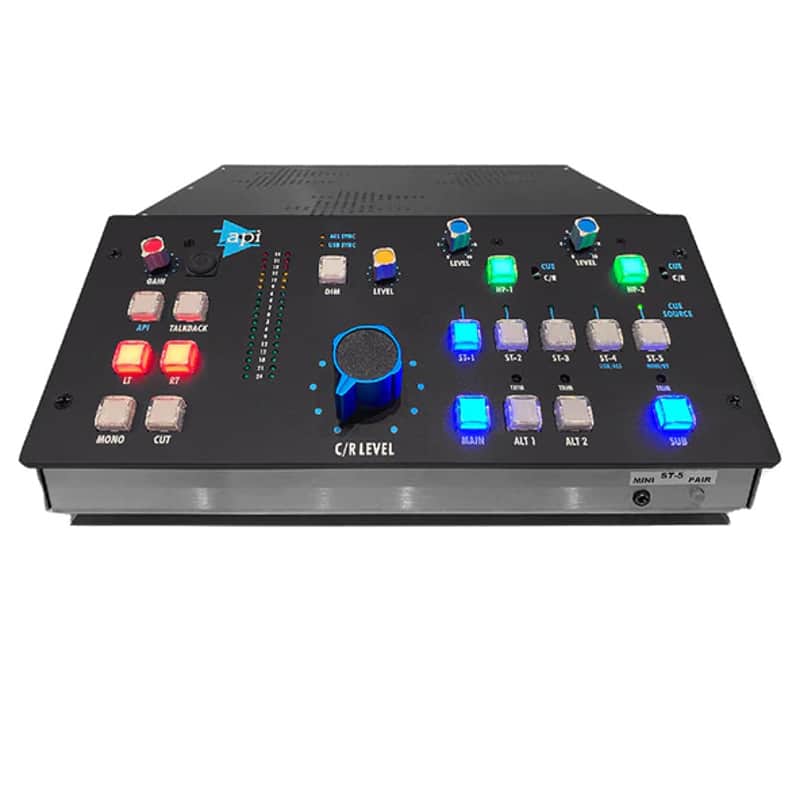

Get a Professional Monitoring Solution With the API MC531
Featuring the same level of craftsmanship found throughout API's entire product line, the MC531 offers a stand-alone version of the monitoring functionality built into the center section of API's legendary analog consoles. Specifically designed to include fully-featured monitor control for DAW workflows, the MC531 can integrate seamlessly into any audio production environment where functionality, ease of use and an accurate reference of each audio source is required.
Drawing inspiration from the monitor control modules of all API consoles, the MC531 features a Main and two Alternate stereo outputs, the latter having individual trims for speaker level matching. Programmable subwoofer integration allows the user to link the Sub with the Main and/or either of the Alternate outputs. With a total of seven selectable stereo input sources (three analog line level inputs, AES, USB, plus 3.5mm and Bluetooth), the MC531 can meet the monitoring needs of almost any studio setup. Two independent Headphone outputs and a built-in Talkback mic complement the feature set. Of course, the classic API 41-detent Control Room Knob is right at your fingertips.
3 stereo balanced line level analog audio inputs
Digital audio input, selectable between AES3 or USB
3.5 mm input on front and rear panel
Bluetooth connectivity
All 5 inputs are buffered with the API 2510 Op Amp
3 stereo balanced line level outputs with individually adjustable trim levels
Mono balanced line level output for feeding a subwoofer with adjustable trim level
Independently assignable SUB output
Stereo outputs include full mute, mono, and DIM controls
2 stereo headphone outputs
Headphone source selection toggle switch for C/R or CUE SOURCE
CUE SOURCE selectable from any of the 5 inputs
Built-in Talkback Mic with gain control and activation button
18 segment stereo LED meter
Balanced unity level meter output for connecting to an external meter system
External power supply
SPECIFICATIONS
Input Connections
ST-1, ST-2, ST-3: 0.25" Balanced Analog, 30 kOhm Input Impedance
ST-4: Digital Input, USB Type-B, XLR female AES3
ST-5: Bluetooth, Mini Jack front and rear in parallel
Output Connections
Control Room Outputs: XLR, selectable electronic or transformer balanced, 75 Ohms
Meter Output: 0.25" Balanced
Headphone: 0.25" Stereo
Maximum Input Level: +28 dBu
Maximum Output Level: +28 dBu
Frequency Response: 20 Hz to 50 kHz, +/- 0.5 dB
Signal to Noise Ratio: 115 dB
Power Consumption: 16 W
Unit Size: 11 x 12.75 x 4 inches
Shipping Size: 14.5 x 13.5 x 8.5 inches
Unit Weight: 8.5 lb
Shipping Weight: 12 lb
Manufacturer: Automated Processes IncModel: MC531SKU: I687933-N-1-WHXB
Price$2,370.25
Free Shipping
Free Shipping
from Cheshire, CT
Only 1 left
Grab it before it's gone
