About this listing

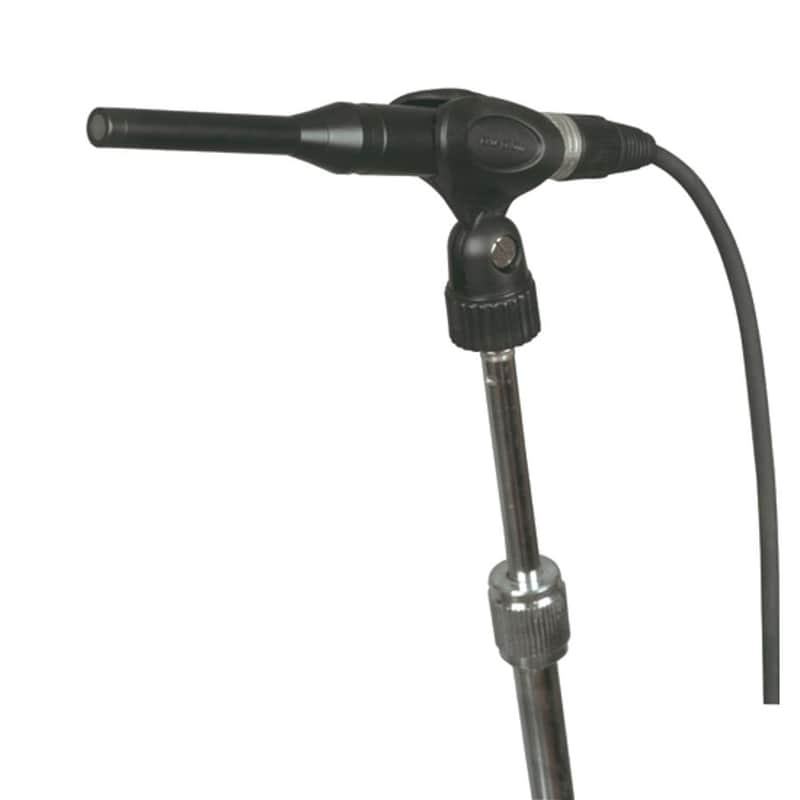

The APEX 220 Measurement Microphone delivers linear frequency response and omnidirectional polar pattern that allows you to carry out measurement and alignment tasks with ease and precision.
The APEX 220 Measurement Microphone is the ideal for use with any real-time analyzer or other audio test equipment. The APEX 220's rugged construction ensures years of reliability. A linear measurement microphone is, by design, meant to have a very flat frequency response and may not yield the best results when used as an audio source microphone for live or recording applications.
APEX 220 Measurement Microphone Features
Omnidirectional condenser microphone
Extremely linear frequency response
Designed for use with real time analyzers, test equipment, audio analysis software
APEX 220 Measurement Microphone Applications
Room Acoustical Analysis
Audio Test Equipment
Reverberation and EQ Analysis
Time Alignment
System Setup & Tuning
APEX 220 Measurement Microphone Specifications
Element: Back Electret Condenser
Polar Pattern: Omnidirectional
Frequency Response: 20Hz - 20kHz
Sensitivity: -63dB +/- 3dB
Impedance:
Operating Voltage: 15V - 48V DC Phantom Power
Max SPL: 105dB
S/N Ratio: >67dB
Equivalent Noise: (IEC 268 - 4 - A Weighted) 24dB
Dimensions: 5.75 x .375 in / 14.6 x 10 mm
Weight: 3.7 oz / 105 g
APEX 220 Measurement Microphone Includes
APEX 220 Measurement Microphone
Mic Clip
Manufacturer Warranty
Price$49.99
+ $9.99 Shipping
Free shipping when combined
Only 1 left
Grab it before it's gone
14-Day Return Policy
Enjoy peace of mind with your new gear
