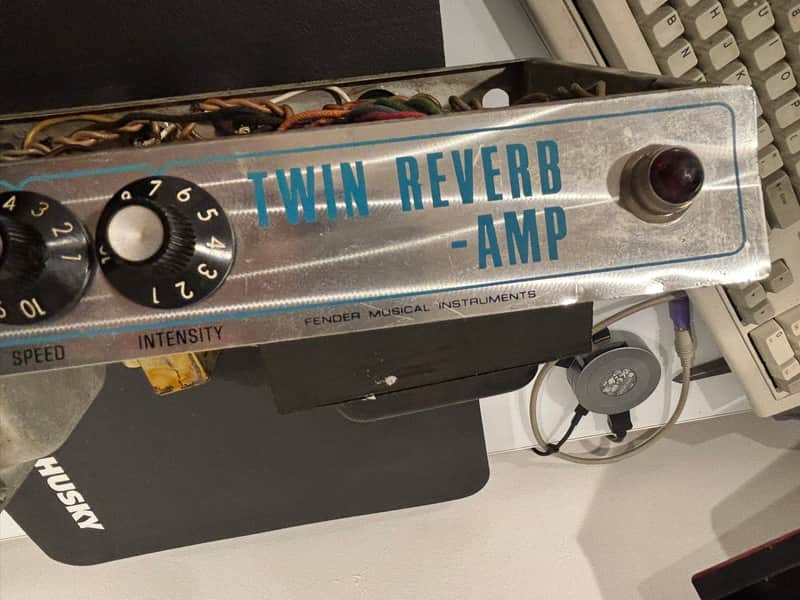

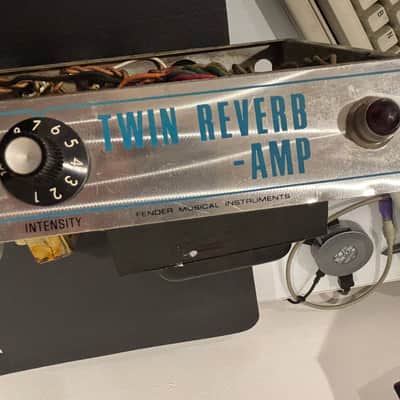

Fender Twin Reverb Chassis only with preamp tubes

No power tubes

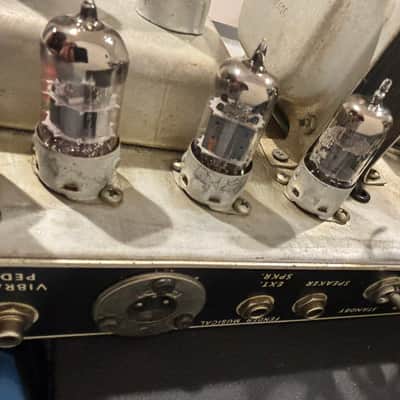

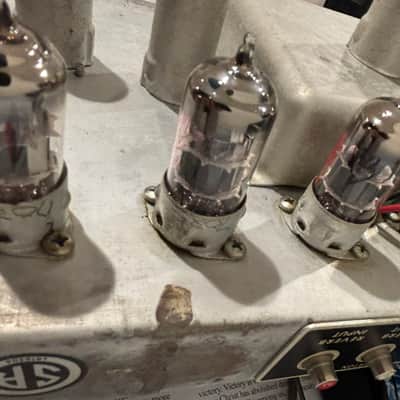

Includes preamp, vibrato, reverb, phase inverter tubes but

does not include power amp tubes.

No reverb tank,

No cabinet,

No speakers.

I am the second owner.

I have had this amp for 20 years and never gigged with it.

Less that 3 hours running time on all tubes

Very Good functional condition, no issues.

I am the second owner.

I have had this amp for 20 years and never gigged with it.

I have the history from the prior owner (see below). That history

includes certain mods or fixes and so does the history of the amp

since I acquired it.

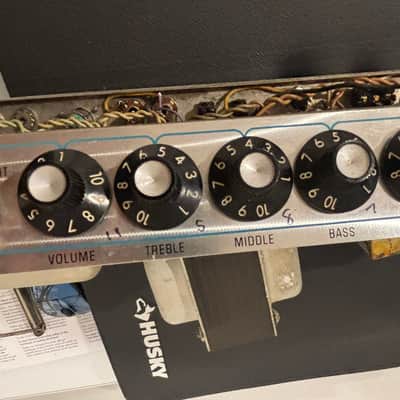

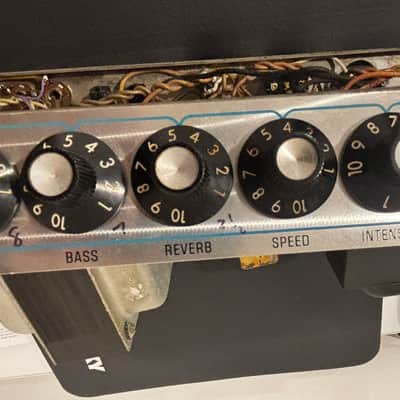

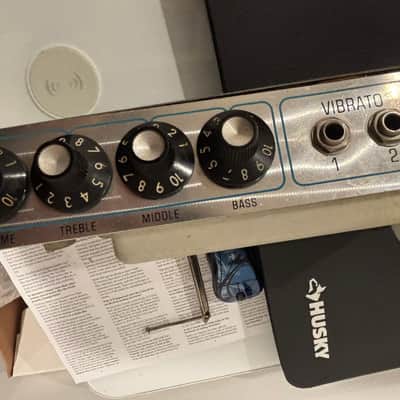

Note the previous owner marked up the silverface dials hashmarks with numbers.

I have not tried to remove these marks.

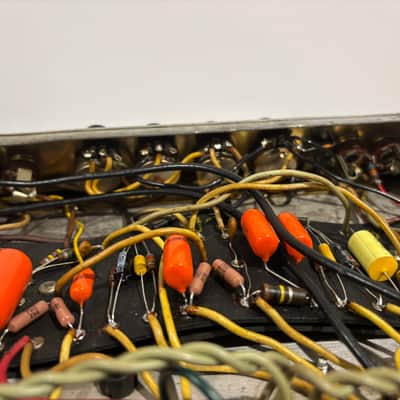

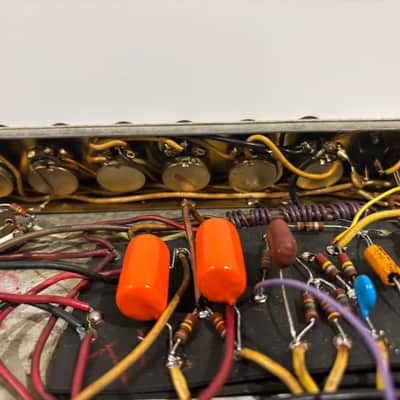

Various caps, resistors, electrolytics have been replaced to spec

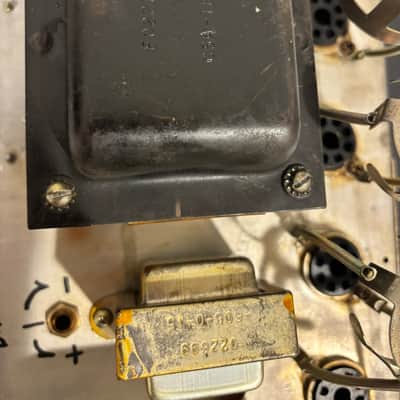

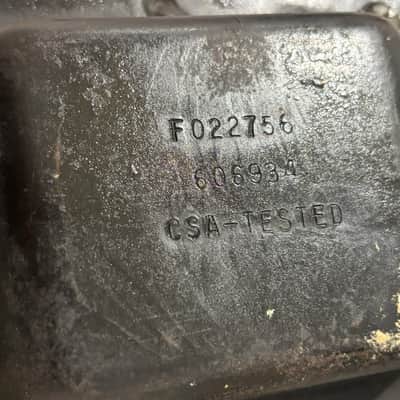

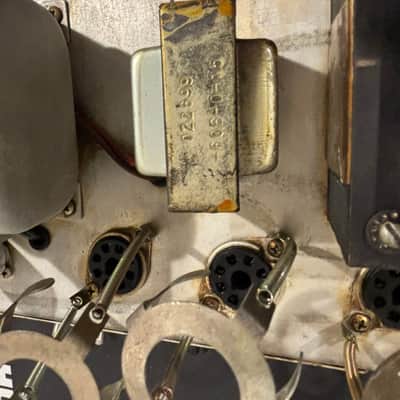

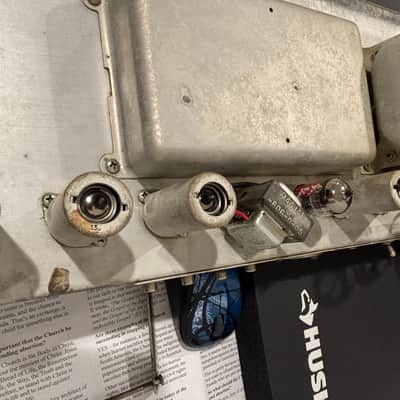

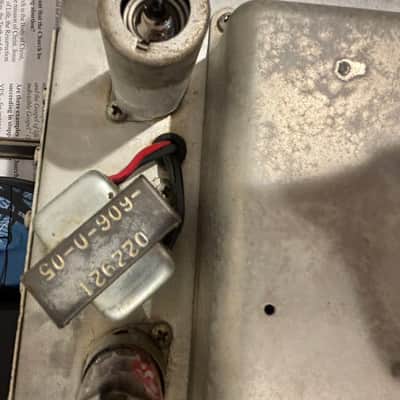

Transformers are original, (Fender Schumacker 022756 power transformer) and other

than the mods or replacements described below, it is original. All components

have been replaced to spec, and Dan Lurie made some fixes and minor

(Jerry Garcia resistor and capacitor ) mods in 2020 (see below)

History:

I bought it in 2002 from the original owner who purchased in early '72.

Before that, the old owner had made the following changes:

-Bright switch replaced 2002

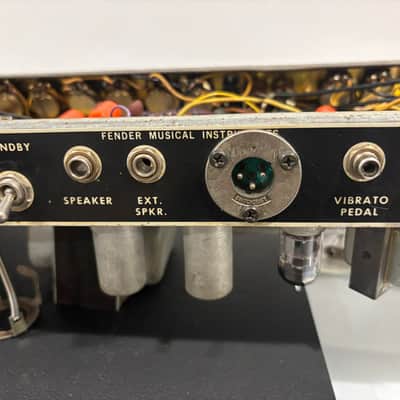

-XLR output added. I presume this was done for a direct output to mixer. I never

used this and have never tested it ***In 2020 when I sent this amp to Dan Lurie he said

he would remove it if it caused issues but it did not and the xlr remained.

Mods made in 2020 by Dan Lurie / FYD amps:

(this is directly from our emails)

Fixed some things the original amp had from the previous owner:

Found NFB disconnected,

Missing cap in tone stack of normal channel.

Broken parts in the trem circuit fixed.

Death cap replaced instead of eliminated.

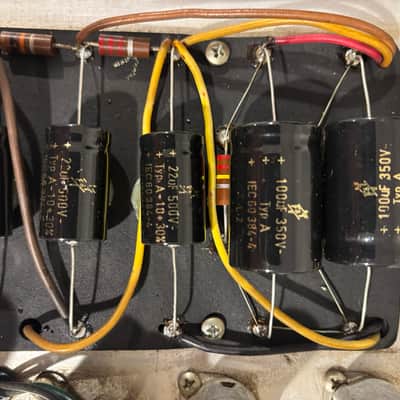

Replaced resistors and capacitors in the power supply filter cap circuit and power amp.

Found three bad preamp tubes.

Replaced 3 bad preamp tubes.

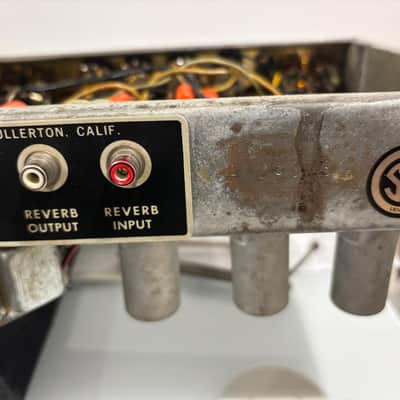

Reverb pan fix to jacks.

Wired Vibrato channel to Jerry mods. Jerry Garcia mods ( certain resistor and cap changes)

Wired Normal channel to have reverb and tremolo.

Rebuilt power supply, bias supply, phase inverter, tremolo, and both channels.

Cleaned all pots, jacks and tube sockets.

Tightened all grounds.

Reverb / Tremolo on both channels.

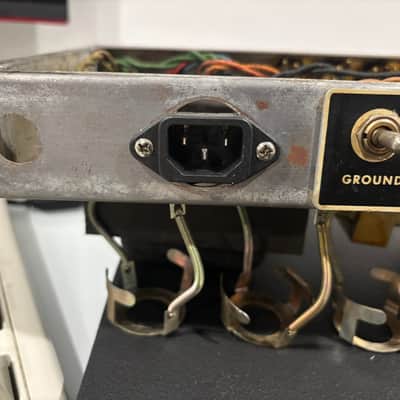

IEC power cord jack installed

Rearranged all tubes for best tone/quiet operation.

Cleaned up circuit.

Set bias.

Burnt in.
