PedalPCB Module 8 Multi Effects Pedal

Handmade with love in beautiful Akron, Ohio!

From the PCB designer:
The PedalPCB Module8 is an FV-1 based digital multi-modulation pedal. Select between eight digital modulation effects.
Three digital control parameters, analog dry signal path with wet/dry mix, and adjustable output volume capable of up to 6db boost.

Features

• Includes pre-programmed EEPROM
  The PedalPCB Module 8 project includes the required Arachnid PCB and pre-programmed EEPROM.
• Updated mix control
  Updated mix control allows 100% wet, 100% dry, and anything in between with less volume drop in the middle.
• Improved signal path for lower noise floor
  Improved filtering in the digital signal path lowers the noise floor without impacting tone.

Included Algorithms

• Phaser (Rate, Depth, Regeneration)
• Flanger (Rate, Depth, Regeneration)
• Chorus (Rate, Depth, Voice 2)
• Harmonic Tremolo (Rate, Depth, Spectrum)
• Pulse Tremolo (Rate, Depth)
• Ring Modulation (Carrier #1, Mix, Carrier #2)
• Pitch Modulation (Rate, Depth)
• Auto-Filter (Rate, Depth, Low-Pass / High-Pass)

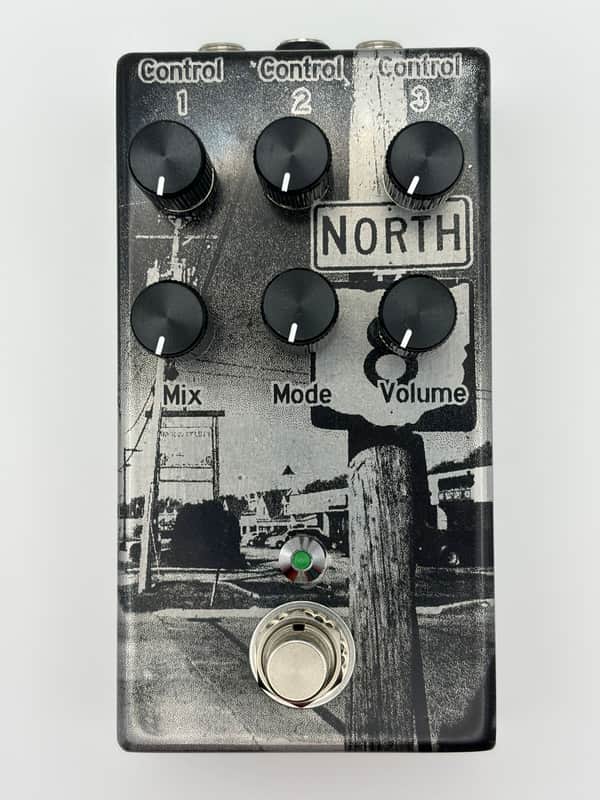

Controls

• Control 1 – Digital parameter control
• Control 2 – Digital parameter control
• Control 3 – Digital parameter control
• Mix – Adjusts the Wet/Dry mix
• Mode – Selects the active algorithm
• Volume – Controls the overall output volume

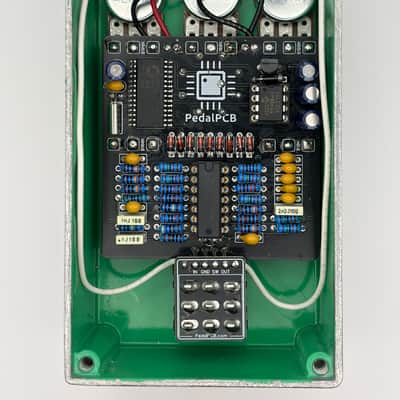

As always, this super clean build inside and out features high quality components including Lundberg power & audio jacks, Alpha pots, lead free solder, and genuine TI ICs. The EEPROM is socketed so that you can mix and match other chips to swap out effects.
