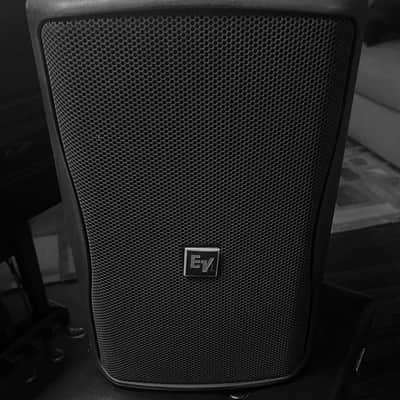

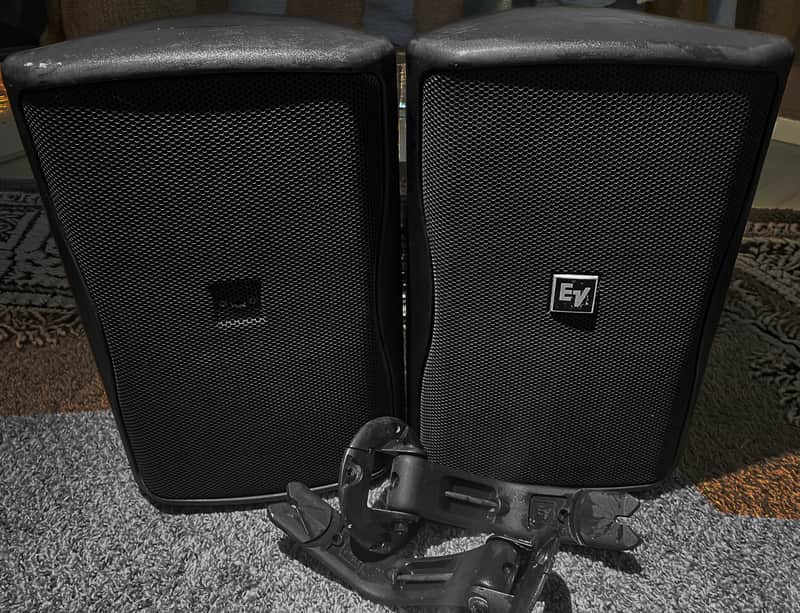

800W 8-inch 2‑way Passive Full‑range Install Speaker - Black with hanging bracket

TWO AVAILABLE - PRICE SHOWN IS FOR THE 2

  • Ideal for mains, floor or side-fill monitors
  • Velocity-compensated port for exceptional LF performance
  • Rotatable 90° x 50° horn for flexible coverage
  • EV8L woofer and DH2005 titanium HF compression driver

Specifications

  • Frequency Response: 60Hz - 20kHz
  • Axial Sensitivity: 94 dB (1W/1m)
  • Maximum Calculated SPL: 123 dB
  • Horizontal Coverage: 90° or 50°
  • Vertical Coverage: 50° or 90°
  • System Power Handling: 200W continuous, 400W program, 800W Peak
  • LF Transducer: EV8L, 8" Driver
  • HF Transducer: DH2005, 1" Exit Compression Driver
  • Nominal Impedance: 8 ohms
  • Pole Mount: Capable
  • Connectors: Two screw terminal NL4 input Connectors (use adapter for 1/4")
  • Overload Protection: Full protection - all modes
  • Built-in Monitor Angle: Yes
  • Dimensions (H x W x D): 17.75" x 11.12" x 10.35"
  • Weight: 18.5 lbs

TWO AVAILABLE - PROVIDE OFFER FOR THE 2

This item is sold As-Described

This item is sold As-Described and cannot be returned unless it arrives in a condition different from how it was described or photographed. Items must be returned in original, as-shipped condition with all original packaging.Learn More.

Promoted similar listings













Listed9 days ago
ConditionGood (Used)
Good condition items function properly but may exhibit some wear and tear.Learn more
Brand
Model
  • ZX1-90 8" 2-Way Full Range Passive Speaker
Finish
  • Black
Categories
Year
  • 2006 - Present
Made In
  • United States
