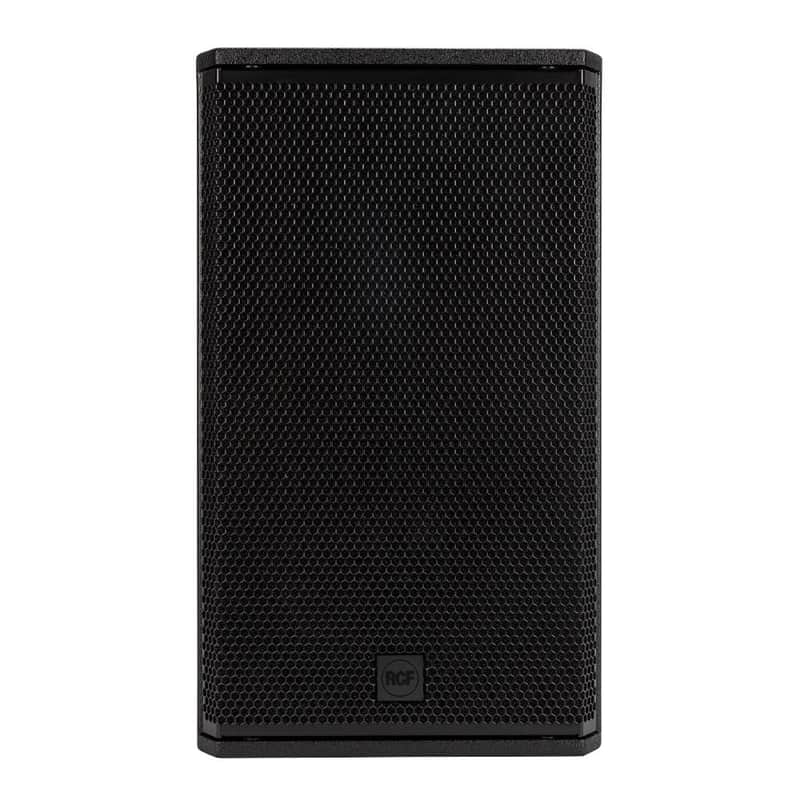

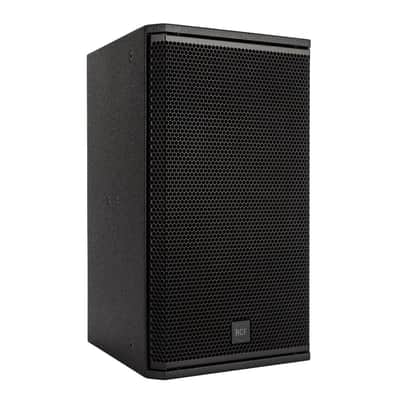

RCF COMPACT M 12 TWO-WAY PROFESSIONAL SPEAKER

Features

• 300 W RMS power handling
• 129 dB max SPL
• 55 ÷ 20000 Hz frequency range
• 90° x 70° constant directivity coverage angle, rotatable horn
• 1 x 12" high power woofer
• 1 x 1.4" voice coil compression driver
• High quality plywood cabinet
• Steel front grille with clothing
• Installation points available on rear, top and bottom panels
• 4 pole EUROBLOCK connector (audio input and parallel link output)

COMPACT M 12 is a multipurpose two-way full-range speaker system, suitable for a wide range of applications. Its balanced sound is a big asset in near-field applications for the best intelligibility. The M 12 features high sensitivity, typical of professional audio cabinets thanks to the use of oversized magnets and a HI-FI sound quality, with smooth and wide frequency response, thanks to the wave-guided compression driver. The SPL level of low-distortion audio the M 12 can provide goes far beyond expectations of such a compact solution. The elegant and compact design with accurate finishing makes M 12 suitable for almost any environment, even with architectural constraints. Optional mounting accessories allow using M 12 on wall or ceiling installations.

Part number:

13000596
COMPACT M 12
Black - RAL 9005, EAN 8024530017811

13000724
COMPACT M 12 W
White - RAL 9003, EA

Acoustical specificationsFrequency Response (-10dB)55 Hz - 20000 HzMax SPL @ 1m129 dBHorizontal coverage angle90°Vertical coverage angle70°Directivity index Q9System Sensitivity98 dBPower sectionAmplificationFull RangeNominal Impedance8 ohmPower Handling300 WPeak Power Handling1200 W PEAKProtectionsDynamic active mosfetCrossover Frequencies1800 HzRecommended AmplifiersXPS 16K, XPS 16KD, QPS 10K, QPS 6.0K, IPS 5.0K, IPS 2.5K, IPS 1.5K, DMA 504TransducersCompression Driver1 x 1.0'', 1.4'' v.cWoofer1 x 12'', 2.5'' v.cInput/Output sectionInput connectorsEuroblockOutput connectorsEuroblockStandard complianceSafety agencyCE compliantPhysical specificationsCabinet/Case MaterialPlywoodHardware8 x M8, 8 x M10GrilleSteel with clothingColorBlack - RAL 9005, White - RAL 9003Size / WeightHeight620 mm / 24.41 inchesWidth362 mm / 14.25 inchesDepth404 mm / 15.91 inchesWeight22 kg / 48.5 lbsShipping informationPackage Height655 mm / 25.79 inchesPackage Width442 mm / 17.4 inchesPackage Depth400 mm / 15.75 inchesPackage Weight25.5 kg / 56.22 lbs
