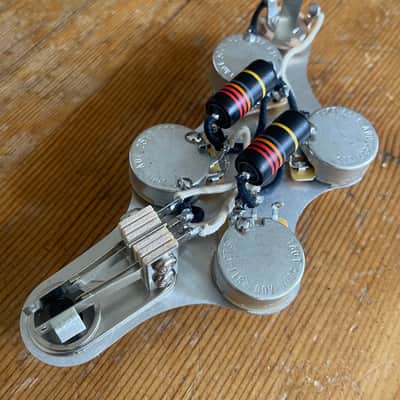

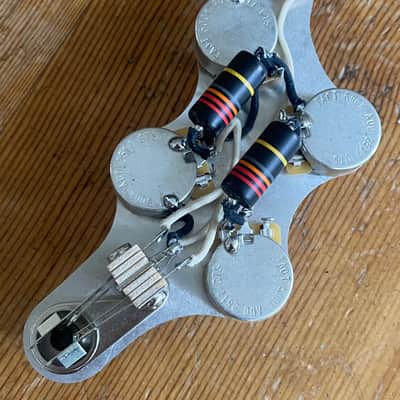

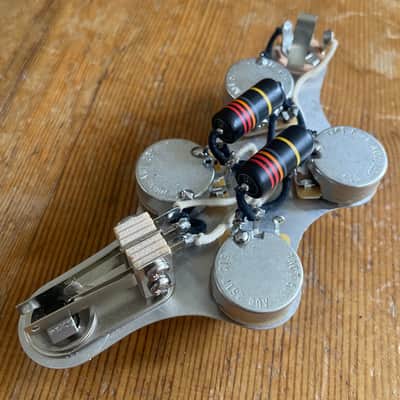

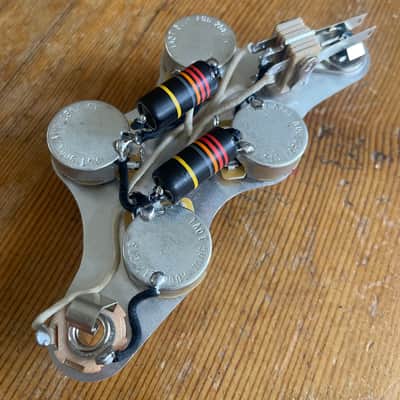

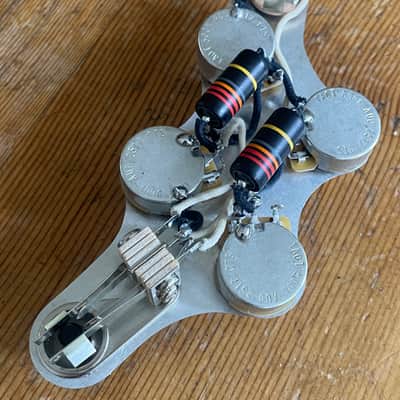

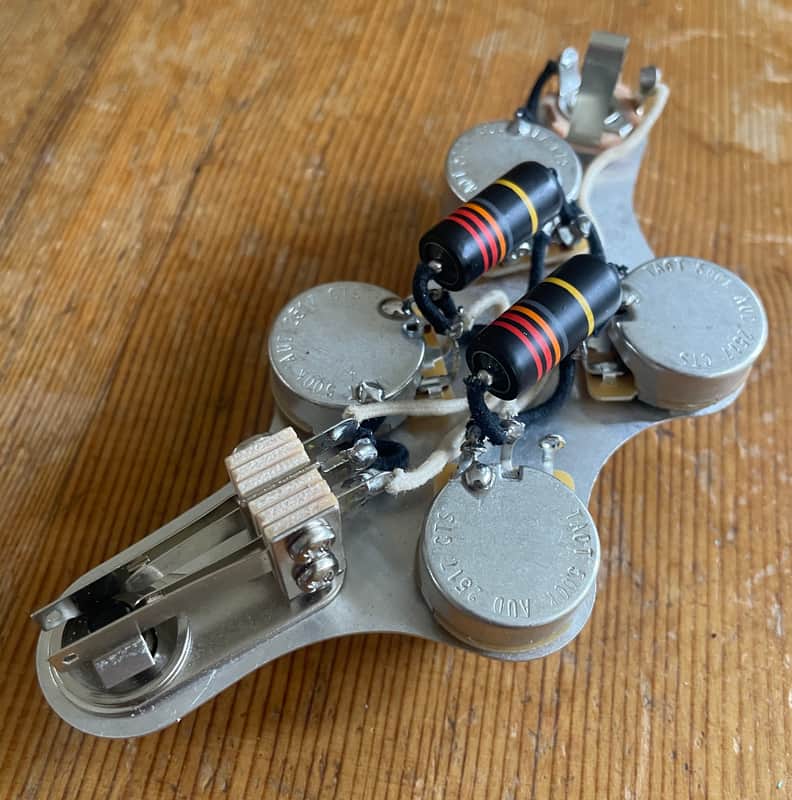

Gibson SG 50's LP Wiring 500k CTS Brass Shaft Pots .022 USA Emerson Bumblebee Caps Switchcraft 3-Way Toggle

What is it?

-Gibson SG wiring harness upgrade with Les Paul 50's style wiring. The LP 50's style wiring allows you to maintain more high end and clarity with less treble loss when rolling back on the volume.

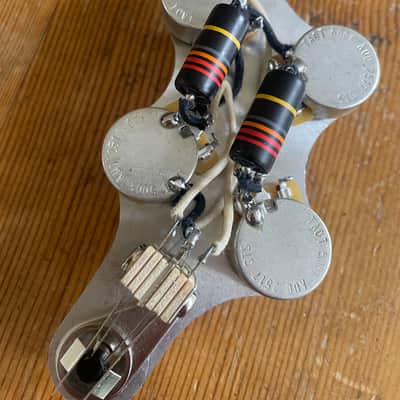

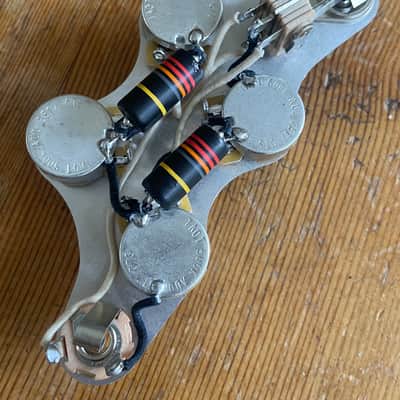

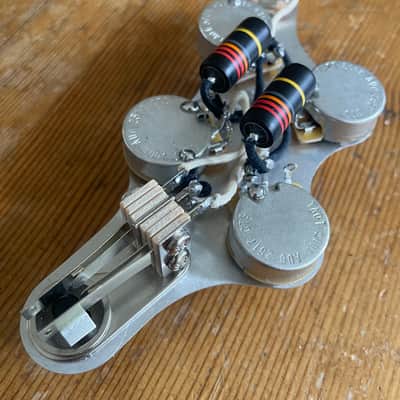

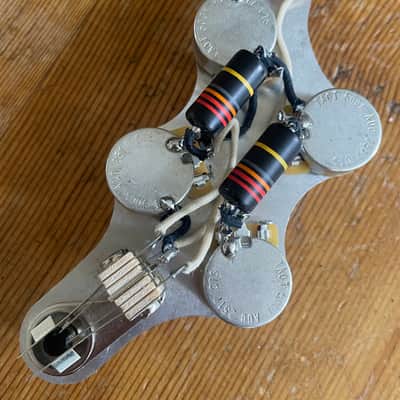

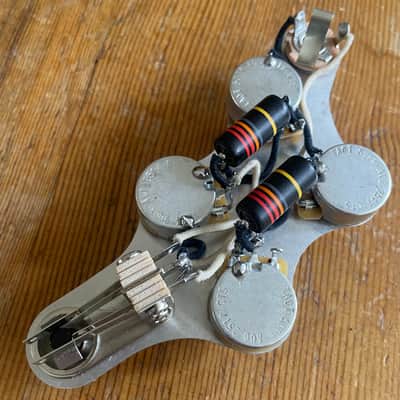

-The harness features 500k CTS short brass shaft pots and .022 USA made Emerson Bumblebee Capacitors.  When compared to the .047 caps, the .022 controls a narrower frequency range.  The result is sharper and clearer tone with a more detailed high end.

-Hand wired with the highest quality parts and cleanest solder connections.  This wiring harness will give you the clearest signal possible with even and balanced volume/tone roll off.

Ingredients

-4 x matched CTS 500k short split brass shaft pots. 3/8" threaded bushing.

-2 volume 2 tone

-2 x .022 USA made Emerson Bumblebee Capacitors

 -Vintage style pull back cloth wire (7 strand 22 gauge wire for the strongest grounding connection)

-Switchcraft 3 Way right angle switch with black tip.  (creme available on request)

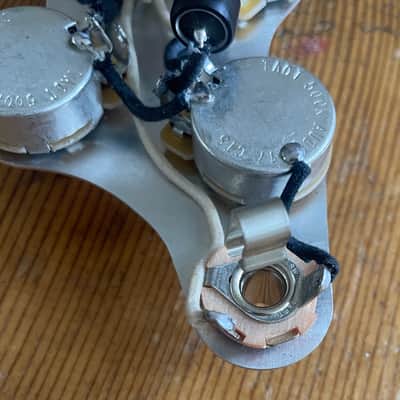

-Switchcraft 1/4" jack long 3/8" threaded bushing

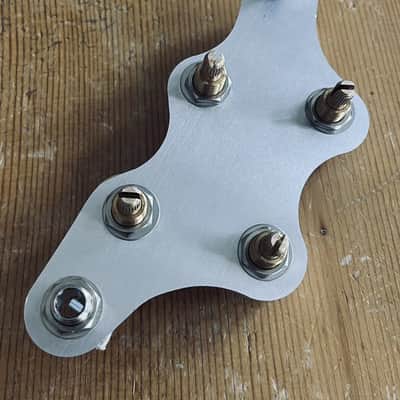

-Custom aluminum ground shielding plate

-Wiring diagram included

NOTE: If you are replacing the electronics on an Epiphone SG, you will need the short straight 3 way toggle. The right angle toggle will not fit most Epiphone SG's. Please send us a message if you need the short straight toggle. You may also need to widen the potentiometer holes on the guitar and need new plastic knob covers to fit the full size CTS pots.  Most Epiphones come stock with smaller pots.

About Smokey B's

I am a guitar electronic specialist and tone enthusiast based in Oak Grove, Oregon. My custom wiring has been installed in over 13,000 guitars world wide. I was a lead tech and artist rep for many years with Seymour Duncan. I have helped guitar and bass players from bands like The Foo Fighters, Guns N' Roses, Slash, Ozzy, Joe Walsh, Weezer, 311 and many more in search for their perfect tone. More than anything else, I am a guitar exploring sound surfer. Always chasing the new. I feel honored to be able to do what I love and share it with so many. My main goal is to help you fall in love with your guitar again.  I offer pre-wired set ups for most any guitar.  Check my Reverb store for more pre-wired set ups.  Custom orders are welcome!
