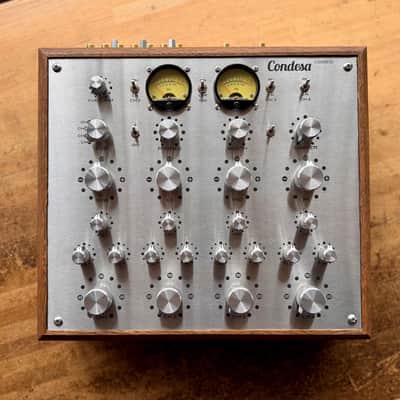

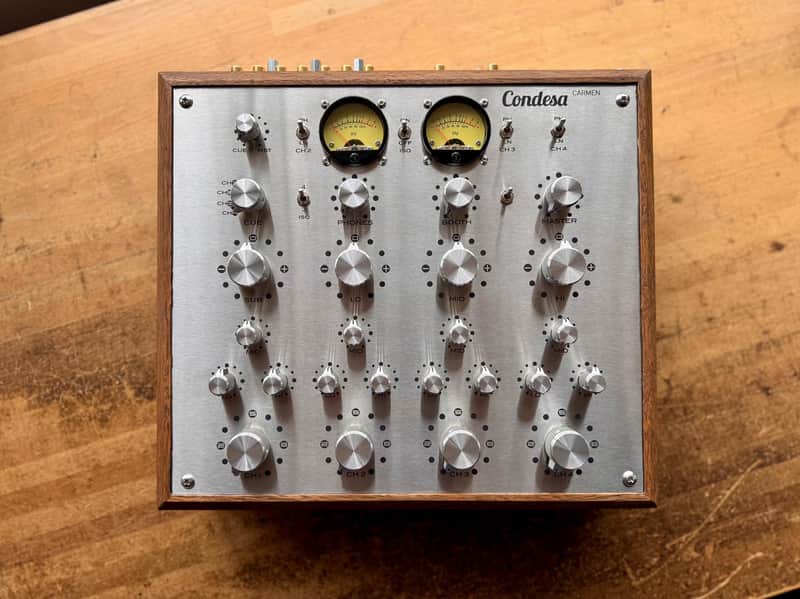

Condesa Carmen V (2025, Brushed Stainless) – Custom Rotary Mixer w/ CH ISO Mod + Flight Case (New in Box)

New in Box – This is being sold at below cost!

A unique rotary mixer painstakingly designed in collaboration with Condesa Electronics, Australia, beginning in April 2024 – sadly no longer needed in my setup by the time of completion.
It underwent rigorous testing prior shipping out July 2025.

HIGHLIGHTS:

• Never opened, factory-sealed
• Rare 3-way Channel ISO mod
• Includes hard shell flight case
• Power cable not included – ask if you need guidance (country-specific)


CUSTOM MODIFICATIONS:

This is a 4 channel rotary mixer built on the Carmen V platform for DJs and sound designers who value warmth, clarity, and surgical precision in analog mixing. With modifications modeled after other high-end units like the Varia RD-40, this unit expands Condesa’s world-class discrete analog build to allow 7-band independent control for high-precision blending

Dual Isolator Architecture with 3-way Channel ISO

• Lo, Mid, Hi EQ circuits replaced by a set of three 2-pole isolators (full kill) on each channel
• Tuned to work similar to an EQ as to avoid clashing with the Master ISO cut off points

3/4-Way Master ISO (switchable) w/ True Bypass

• Sub, Low, Mid, and High bands with surgical 24dB cuts
• Bypass offers kill switch functionality for Sub bass

FX Insert Mod

Master FX Send/Return modded to support true Insert-style signal path

• Allows dynamic use of external analog processors in-line (e.g. compressors, expanders, harmonic enhancers)
• Return triggers signal reroute, allowing Send to alternatively function as a standalone unbalanced output

SPECIFICATIONS:

4 Analog Stereo Channels

Channels 2–4: discrete phono preamps

3-Way Channel Isolators (per channel)

+12dB boost per band, Mid +16dB
Low (10–140Hz), Mid (140Hz–6kHz), High (6kHz–20kHz)

4-Way Master Isolator

Sub (10–80Hz), Low (80–280Hz), Mid (280Hz–4kHz), High (4–20kHz)

Insert Master FX

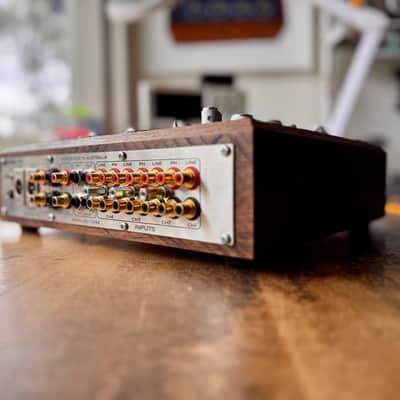

Separated 1/4" TS jacks per channel (Left/Right) for Send and Return layout (rather than integrated TRS jack)

Chassis

Analog VU Meters
Unlabeled Cue/Master selector switch (fully functional) for VU meter was added in error
UREI-style anodized silver knobs
Distressed Australian Blackwood panels
Hard-shell flight case

Power Cable

Not included. Condesa sends region-neutral units – message me if you’d like help sourcing the correct cable for your country.

ADDITIONAL INFO:

Serious inquiries only – I’m happy to provide additional info (e.g. User Manual) to prospective buyers
Ships insured and in its original packaging, sealed.
