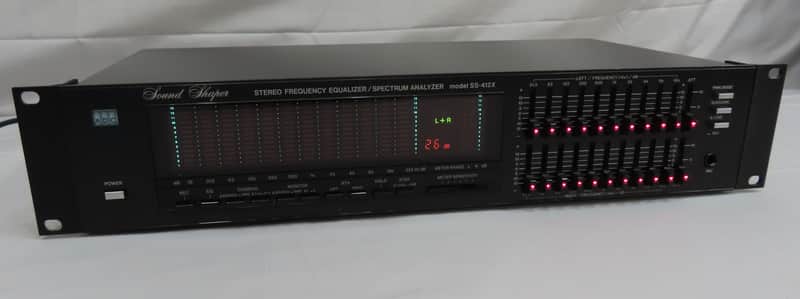

ADC Sound Shaper SS-412X 10 Band Equalizer (EQ) 12 Band Spectrum Analyzer
This listing has ended
See similar gear from other Reverb sellers
Our users rate Reverb
ADC Sound Shaper SS-412X 10 Band Equalizer (EQ) 12 Band Spectrum Analyzer]
Fully tested and 100% functional; the SS-412X is a superb choice to be your stereo system EQ. Cosmetically, it is very good exhibiting only minor wear.
Audio Dynamics Corporation (ADC) is proud to provide the ultimate value in design and development of a 10 band graphic equalizer with a 12 band real time frequency spectrum analyzer, the Sound Shaper SS-412X for your superior sound analysis.
The SS-412X uses a fluorescent indicator tube which has 156 separate segments plus 26 segments average response indicator for display to analyze sound source frequencies and room acoustics.
Specifications
- Input Sensitivity: 1V (5V max)
- Output Level: 1V (5V max)
- Gain: ± 1dB
- Frequency response: 5Hz to 100kHz
- Signal to Noise Ratio: 100dB
- Total harmonic distortion: 0.008%
- Control Range: ± 15dB
- Frequency Bands: 31.5, 63, 125, 250, 500, 1K, 2K, 4K, 8K, 16KHz
- Dimensions: 435 x 88 x 222mm
- Weight: 4.8kg
