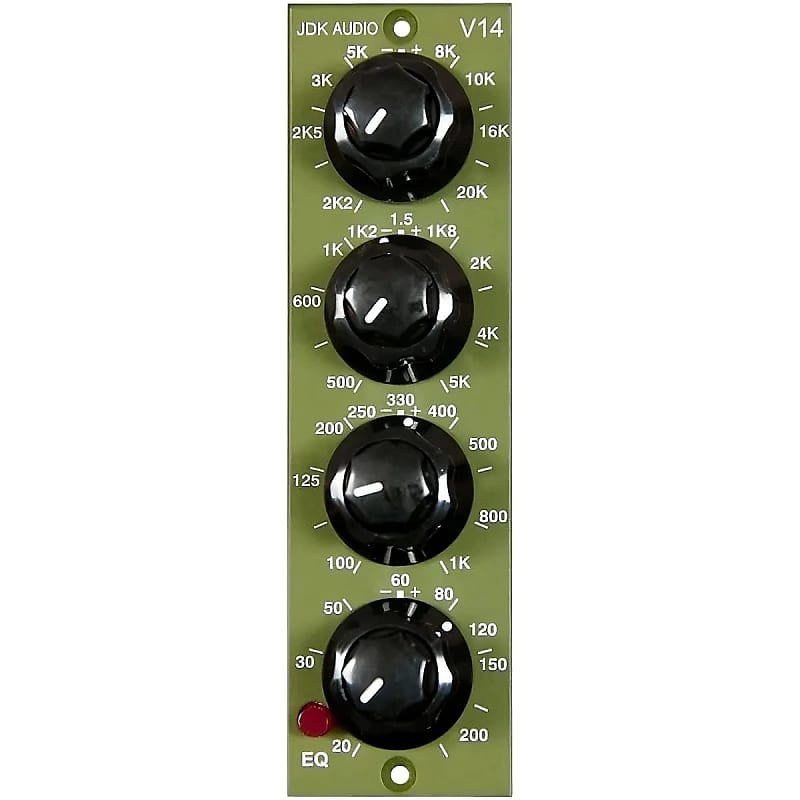

The JDK Audio V14 is an extremely high quality, single channel 4-Band Equalizer designed for the popular API VPR500 Rack format.

The eq features continuously variable adjustment of frequency and gain on dual concentric pots, with an eq in/out switch.

Features:

• 4 bands of equalization modeled after the classic APSI model 562 EQ
• Each band offers continuously variable control of frequency and gain
• 12 dB of boost/cut per band
• All 4 bands are peak/dipping parametric configuration
• Custom transformer balanced output
• High headroom +24 dB clip level
• Designed to fit API's 500 VPR Rack or Lunchbox®

JDK Audio's V14 offers a single channel of professional signal equalization in the popular 500 VPR format. Modeled after the circuitry of classic high end EQ's, the V14 delivers an affordable combination of rugged construction and solid performance. The V14 also features EQ in and out switch, plus dual concentric knobs which provide continuously variable control of boost/cut and frequency selection.

Specifications

I/O: Balanced Input and Output through VPR Rack (All measurements with 600 Ohm output load)

Bandwidth: +/- 0.5 dB, 20 Hz - 50 kHz

THD+N @ 1 kHz, +4 dBu: 0.01%

Maximum Level: +24 dBu

Signal-to-Noise Ratio: -102 dB

EQ Bands: 4 bands, all +/-12 dB Peak/Dip type

Lo: 20 Hz - 200 Hz

Lo-Mid: 100 Hz - 1 kHz

Hi-Mid: 500 Hz - 5 kHz

Hi: 2.2 kHz - 20 kHz

Current: 30 mA, 3.4 VoltAmps

Input Impedance: 12K Ohms

Output Impedance: 300 Ohms Transformer Balanced

Dimensions

Fits: 1 VPR Alliance Slot

Size: 1.5" X 5.25" X 7.75" Deep
