Renkus-Heinz IC8-R LINE ARRAY SPEAKER SYTEM

iCONYX BY: RENKUS-HEINZ LINE ARRAY SPEAKER SYSTEM

POWERED BY 8- 50W AMPS

24 SPEAKERS

SEE YOUTUBE LINK FOR MORE INFO.

GENTLY UDSED

RHAON SOFTWARE INCLUDED

POWER CORD

CAT CABLE

PROGRAMABLE SPEAKER SYSTEM

ANY ACOUSTIC ENVIRONMENT,

CHURCHES,CLUBS,ARENAS,PUBLIC BROADCASTING, AIRPORTS, WAREHOUSE,ETC.

COBRA CONNECTION

RHAON BEAM TECH. AND SOFTWARE INCLUDED.

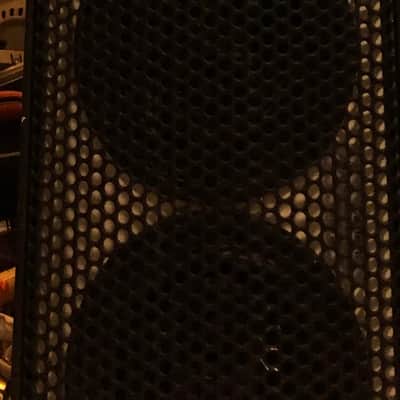

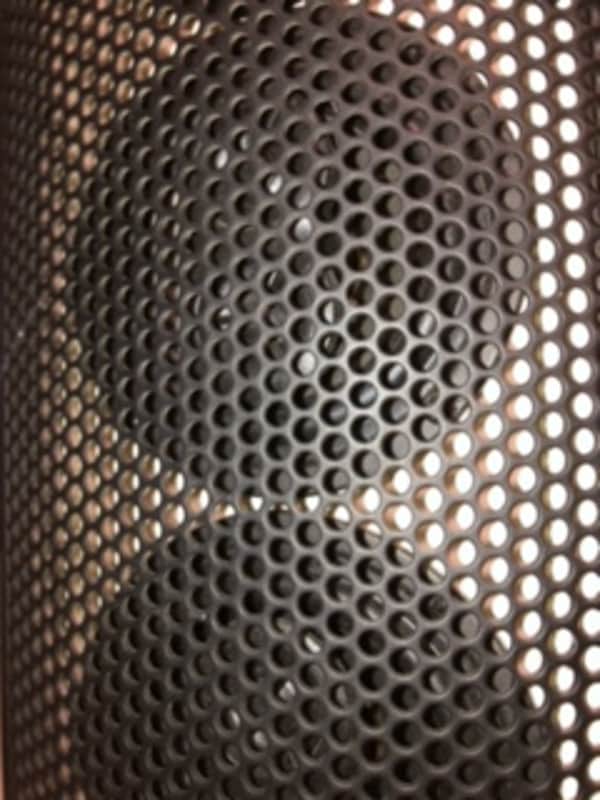

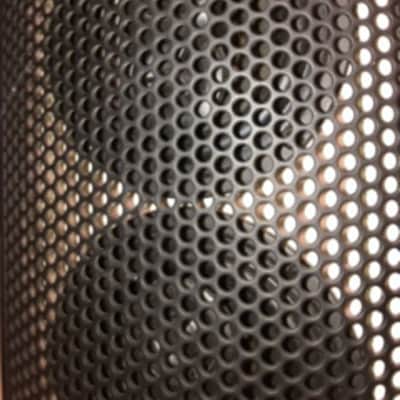

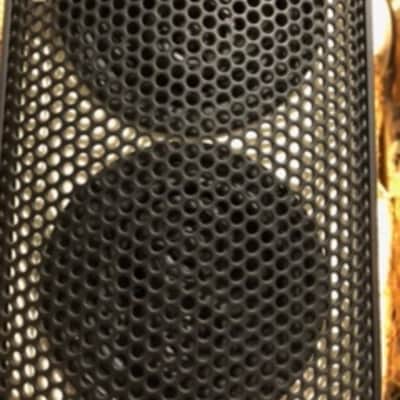

• 8x 4″ Coaxial Transducers each with three HF tweeters
• 8x Amplifier and DSP channels
• Beam control effective down to 800Hz
• Multiple beams and multiple acoustic beam centers
• Multiple Configuration Presets
• RHAON Network
• Slim, Low-Profile Design

ICONYX technology gives sound system designers the power to create a system to cover even the most problematic spaces. Up to four steerable beams can be individually shaped and aimed from a single IC8-R column using the powerful software-controlled DSP.

Multichannel audiophile amplifiers power arrays of purpose-designed coaxial transducers, each with its own triple tweeter high frequency array. This triple tweeter “array within an array” design reduces the distance between HF sources for greatly improved high frequency performance with consistent, broad horizontal dispersion.

Technical InformationSensitivity:1.0 V (for rated power output)Freq. Range:120 Hz to 18 kHzMax SPL:96 dB peak, @ 100 Ft. (30.5 meters); (3-octave bandwidth centered at 2 kHz)Horiz. Dispersion:150° up to 3 kHz; 120° above 3 kHzVert. Opening Angle:20°, 25° and 30°Vert. Aiming Angle:Adjustable from -30° to +30°Typical Throw:66 Ft. (20 meters)Beam Control:Effective down to 800 HzNo. Transducers:8 coaxial transducers, each having DOUBLE tweeters

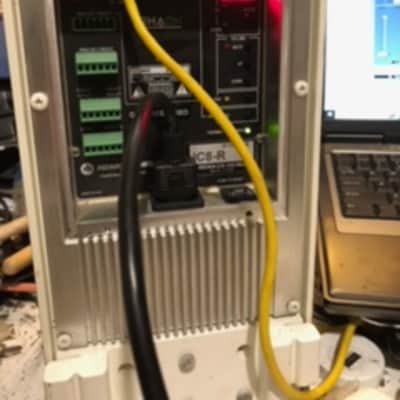

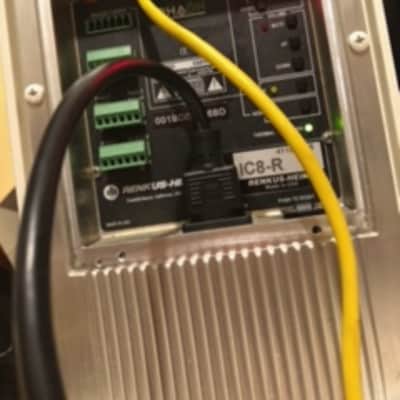

No. Amp. Channels:8Transducers:Coaxial with a 4” woofer and DOUBLE 1” tweeters, RH model SSL4-7; 25 W RMS, 50 W PgmInputs:Analog Audio: 2 inputs (primary & secondary),
Phoenix 6-pin connectors (looping 3-in, 3-out)
CobraNet: Dual RJ45 connectors (for CAT5 cable)
Fiber Optic Input for primary CobraNet input available as an option
AES/EBU: Phoenix ConnectoControls (Rear Mounted):Mute button, Up & Down Output Level buttons
10 dB pad (on Analog 1 input)
Push-To-Reset circuit breaker
Preset Configuration Selector (10 configurations)Computer Controls:Gain, Mute On/Standby Input Selection
Compression
8-Band Parametric EQ
Shelving &
Rolloff Filters
Delay
Preset Configuration SelectionStatus Indicators:Power
Signal
Overdrive
Thermal
Mute
Input Pad
Preset Configuration Selection ReadoutHanging Method:2-point hinges or Metric M6 thread eye-boltsEnclosure:Extruded Aluminum with perforated steel grilleFinish:BLACKpaint standard
Optional finishes: black and
custom color paint
Weather resistantWeight:36 Lbs (16.3 kg) NetDimensions:37 5/8” H x 6 1/8” W x 6 7/8 D
(96 cm x 15.5 cm x 17.5 cm)
(includes Mounting Hinges
