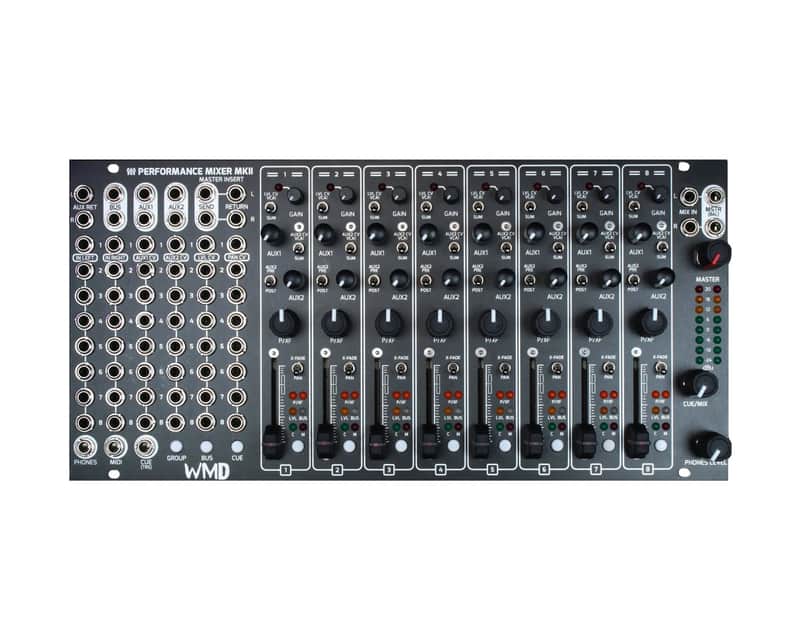

WMD Performance Mixer MKII - Black

The WMD Performance Mixer MKII is a serious upgrade, with feature enhancements and engineering improvements affecting every bit of the design.
The original Performance Mixer changed the eurorack landscape when it first came out, it made mixing much more intuitive and instant, it allowed people to ditch the heavy outboard mixer, and keep their system patched while they travelled. It made using individual drum modules and multiple voices easy to keep straight in a packed dark room.

• Open tab
• 8 Stereo or Dual Mono Inputs
• 2x Stereo Auxes
• Balanced (TRS) Main Outputs
• Soft Mute Per Channel
• Group Button for Simultaneous Cue/Mute/Bus routing Changes
• Pan/Crossfade Switch for dual mono inputs per channel (panned center)
• Second Bus for Submixing (and/or operation)
• Stereo Cue Mix Bus (TRS Output Jack)
• 3.5mm Headphone Jack with Cue/Mix pot
• MIDI output sends CCs for Pan, Level, Aux1, Aux2 positions - Capture your mix in your DAW
• Rear Headers for Pre and Post Fader/Pan outputs to DB25/3.5mm Jacks
• Clip Indicator on Input Gain Pot
• LEVEL and AUX2 CV can SUM or operate as VCAs
• AUX2 can be Pre Fade or Post Fade
• Channel strips are field replaceable if a pot or fader fails.
• Expandable up to 24 Stereo Channels
• Returns Expansion adds 3x AUX return stereo inputs
• CV control over Pan, Level, Aux1, and Aux2
• CV flows to MIDI
• Channel Inserts: Rear cables per channel allow for future insertable effects
• Firmware update via Memory Card
• Integrated Soft Start on Power Up

• 52 HP 36 mm deep
