Great module, but I have to make some tough cuts to keep my system small.

Will ship with the module, power cable, 4 knurled, and the original box.

Feel free to message me with any questions.

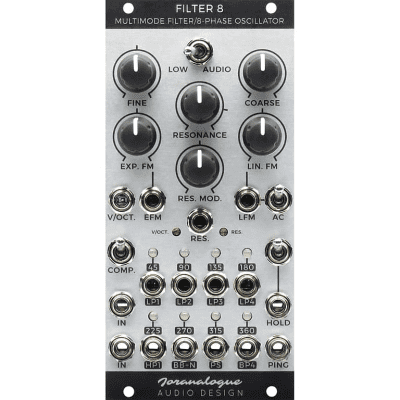

From the manufacturer:

  • Analogue 'OTA style' cascaded 4-pole lowpass VCF with self-oscillation capability.
  • Filter outputs: 1-through-4 pole lowpass, 1-pole highpass, band boost+notch, phase shifter, 4-pole bandpass.
  • Self oscillation: 8-phase sine waves, separated by 45°.
  • Accurate temperature-stable sine wave VC(LF)O with fine and coarse tuning.
  • Simultaneous exponential and linear FM, including depth polarisers, dedicated 1 volt/octave input and LFM AC-coupling switch.
  • Unique voltage controlled resonance topology: all outputs resonate with absolutely no loss of low frequency response, unlike common 'bass compensation' methods.
  • Resonance compensation gain switch: adjusts output gains for equal amplitude self-oscillation (10 Vpp).
  • LF mode for slew modifier or LFO use. Ultra-wide total frequency range: 2.8 mHz (6 minutes) to 27 kHz, a range of nearly 10,000,000:1!
  • Dual signal inputs increase patching flexibility.
  • Impedance-compensated outputs with dual-colour LEDs.
  • Voltage hold feature 'freezes' the filter core. Pause LFO modulations, or create pulse-width-sensitive sync sounds at audio rates. Also useful as clickless output mute. Manual or gate control.
  • Dedicated ping trigger input: 'strike' the filter core using any trigger or gate signal and easily create percussive sounds with 8 different timbres.
  • Trim potentiometers accessible from the front panel.
  • Precision-milled 2 mm anodised aluminium front panel with high-resolution, non-erasable graphics.
  • Bullet-proof design: polarised power header and MOSFET protection circuit.
  • Includes 16-to-10-pin Eurorack power ribbon cable.
  • Premium mounting hardware: black screws, black nylon washers and matching hex key.
  • High-quality components and assembly; designed and made in Belgium.

Reverb Buyer Protection

Reverb has your back if your item is lost, damaged, or doesn't match its description. Simply report any issues within 7 days and we'll help you get a full refund.Learn more about Reverb Buyer Protection.

Promoted similar listings













Listed2 months ago
ConditionExcellent (Used)
Excellent items are almost entirely free from blemishes and other visual defects and have been played or used with the utmost care.Learn more
Brand
Model
  • Filter 8
Categories
Synth Module Function
  • Oscillator
  • Filter
Polyphony
  • 1 Voice
Modular Synth Format
  • Eurorack
Horizontal Pitch
  • 12HP
Analog / Digital
  • Analog
