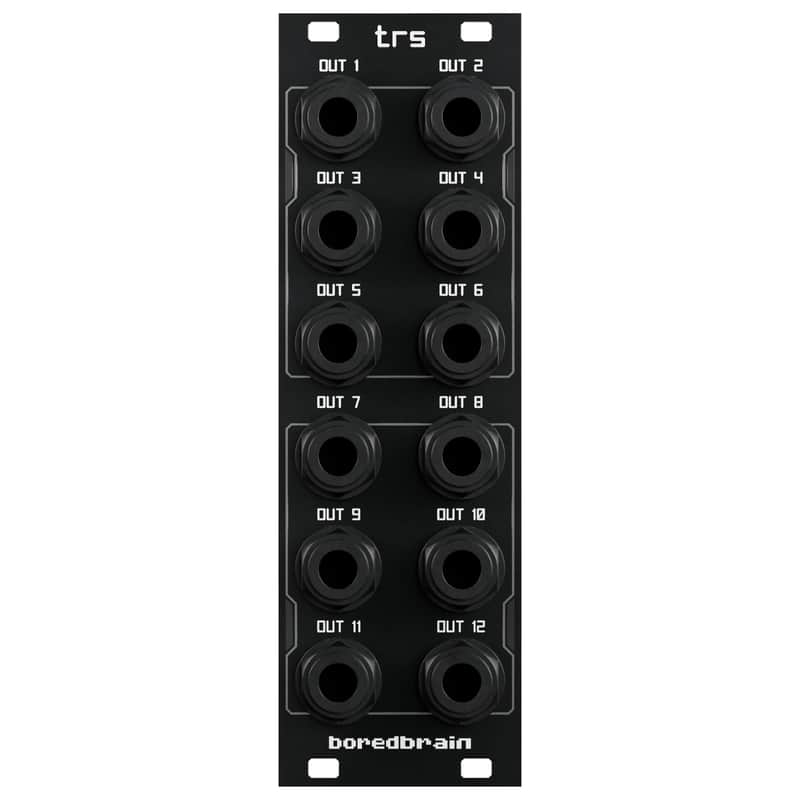

Boredbrain TRS 12-Channel Direct Output Eurorack Module

Direct multi-channel expansion

TRS is part of Boredbrain’s direct multi-channel audio series of modules, which interconnect to provide a multitude of audio outputs to eurorack systems. TRS can interface with the IO module and/or Xcelon mixer for twelve balanced audio outputs, or up to twenty-four using two TRS modules.

FEATURES

• Connects to IO module to provide twelve balanced audio outputs
• Connects to Xcelon mixer and expanders for six stereo direct outputs
• Balanced line-level audio outputs on ¼-inch TRS jacks
• Low-noise signal path with isolated channel circuitry

SPECIFICATIONS

• Width: 8 HP
• Depth: 1.38 in (35 mm)
• Weight: 3.1 oz (88 g)
• Output Impedance: 50 Ω
• SNR: > 102 dB
• Power: +12 V 90 mA, -12 V 90 mA
