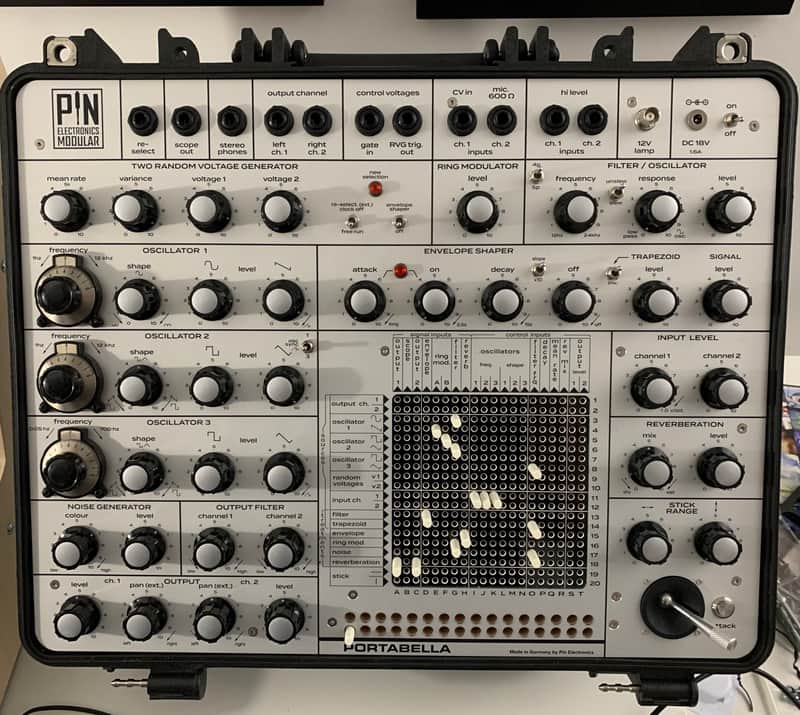

*Weekend Sale* PIN Electronics Portabella MkIII (w/1969 filter)

*Dropping the price for this weekend* Mint condition, from a late 2023 batch. This is the MK3 version and it includes the improved the 1969 filter, so the only thing it's missing from the current MK3e version shown on the PIN site is the lack of sync control via matrix and the chrome knobs.

OSCILLATOR 1
Range: 1Hz – 12KHz
Outputs: sine/ramp
Modifications: shape control via matrix (sine only)

OSCILLATOR 2
Range: 1Hz – 12KHz
Outputs: square/pulse,
Modifications: OSC Sync switch, shape control via matrix

OSCILLATOR 3 / LFO
Range: 0.016Hz – 700KHz
Outputs: square/pulse

NOISE GENERATOR
White and Coloured

RING MODULATOR
Transformerless integrated circuit

MATRIX
20×20 Ghielmetti Matrix 621
including 16 x 2k7 pins (white)

RANDOM VOLTAGE GENERATOR
Outputs: 2 random voltages
V1 & V2 and trigger
Range 0.2 – 20Hz
VC Selection (socket)

FILTER / OSCILLATOR
A multi-purpose filter & sine oscillator
Range: 20 Hz – 20KHz
Modifications: slew/unslew switch
18dB / 24dB switch
New 1969 filter design

SPRING REVERB
Decay time: 1.75 – 3.0 sec.
Springs: 3
Voltage control of mix “wet/dry” via matrix.

ENVELOPE GENERATOR
Attack: 2ms – 1 sec
On time 0 – 2.5 sec
Decay: 2.7ms – 18 sec
Repeat/Off: 10ms – 7sec. (max. rate 60Hz)
Trigger: +4V
Modifications: attack/decay time extension, inverter switch

INPUTS
2 x 2.5 VDC (max) 50Kohm) (CV Ins)
2 x 5 mVAC into 600 ohms (Mic. Input)

OUTPUTS
2 x Mono sockets
1 x Headphones
1 x RVG TRIG out (10V spikes)
1 x Scope out

INPUT CONTROLS & CV/GATE
1 x RVG re-select socket
1 x CV/ via CH1 pre-calib.1V/oct.
1 x Gate socket

DIMENSIONS
474 x 415 x 149mm

FRONT PANEL
Alu black/silver anodized

WEIGHT
17lb / 8kg

EXT. POWER SUPPLY
18 V/DC 1670 mA 30W 90-240V

LAMP CONNECTOR
12V DC BNC max.100mA
