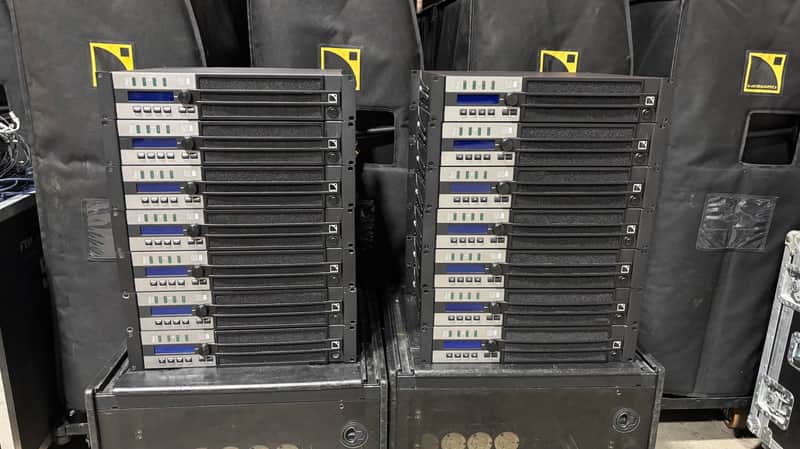

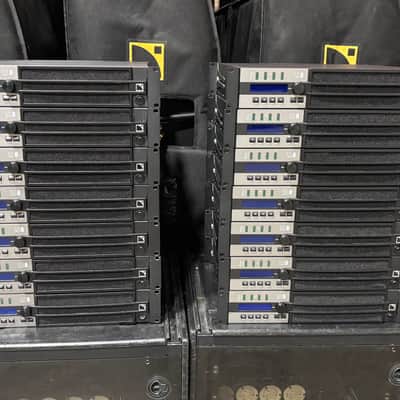

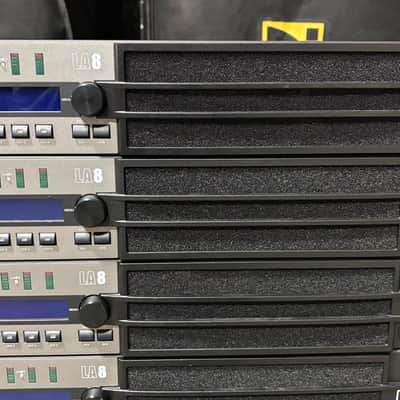

L Acoustics LA8 4-Channel 1800 Watt Audio Amplifier (16 available. Price per unit. $3500 each)
The LA8 amplified controller belongs to the generation of high-end integrated controllers entirely dedicated to the comprehensive operation of L-ACOUSTICSĀ® loudspeaker systems. The LA8 combines in a 2U lightweight chassis the resources of a 2 x 4 DSP engine driving four channels of amplification delivering up to 1800 watts each, a comprehensive library of factory presets, a user-friendly front panel interface, two I/O Ethernet connection ports for network remote control, a connection panel for audio inputs and speaker outputs, and an AES/EBU input board.
Features:
- L-ACOUSTICSĀ® preset library for LA8
- K1, K1-SB, KUDO
- KARA, ARCS II
- SB18, SB28
- 115XT HiQ
- Legacy products: V-DOSC, dV-DOSC, dV-SUB, ARCS, SB118, SB218
- Full system drive capability
- Factory presets for active and passive modes.
- Flexible I/O matrix routing between the two inputs and the four amplified outputs
- 32-bit floating point DSP, 96 kHz sampling rate
- 24-bit cascaded A/D converters, 130 dB dynamic range
- Combined IIR/FIR algorithms
- Adjustable input and output delays
- Section dedicated to system equalization using LA NETWORK MANAGER
- L-DRIVE excursion and temperature real-time control
- Fixed Latency = 3.8 ms
- 4-channel amplifier
- Universal switched mode power supply, 120 / 230 V (or 100 / 200 V for Japan)
- 4 x 1100 W / 8 Ī© at 1% THD, all channels driven (4 x 1300 W peak)
- 4 x 1800 W/4 or 2.7 Ī© at 1% THD, all channels driven (4 x 2500 W peak)
- Amplifier gain = 32 dB
Specifications:
- Audio specifications
- Frequency response: 10 Hz ā 30 kHz, -1.5/+0 dB at 8 Ī©
- Output noise: -67 dBV (20 Hz ā 20 kHz, A-weighted)
- Output dynamic range: 107 dB (20 Hz ā 20 kHz, A-weighted)
- Max input level: +22 dBu (balanced, THD 1%)
- Channel separation: > 85 dB (1 kHz)
- Input impedance: 22 kĪ©, balanced
- AES/EBU input board: refer to the LA-AES3 spec sheet
- Dimensions
- H x W x D: 88 (2U) x 483 x 420 mm 3.5 (2U) x 19 x 16.5 in
- Weight (net): 12.2 kg 26.9 lbs.
- Finish: black and anthracite gray
