920D Custom Seymour Duncan P-Rails HH Trembucker On Bridge Treble Bleed Loaded Strat Pickguard - Tortoise Shell/Aged White

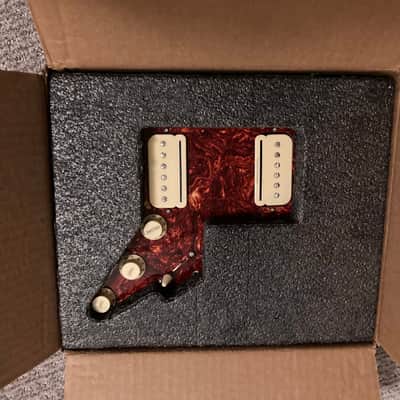

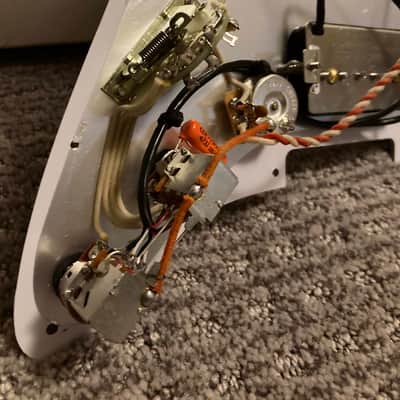

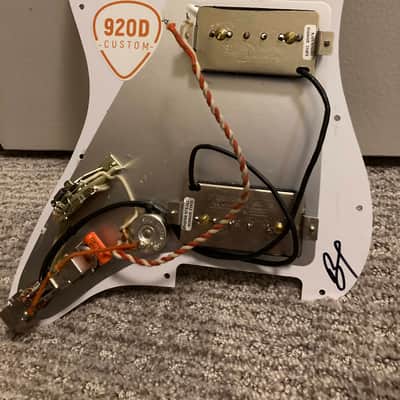

I bought this loaded pickguard here on Reverb in 2019 & only used it a few times to get a wide variety of tones when recording. I recently switched back to single coil pickups so I’m offering this great loaded pickuard for sale. The wiring is neat & clean as a whistle! You will need the 11 pickguard screws from your current pickguard as no screws are included here.

You will need to:

• Ensure your S-style body pickup route is deep enough or be prepared to enlarge it. (I had to deepen the swimming pool pickup route of a 1980s American Standard S-style guitar.)
• Make sure your pickguard holes are standard 11-hole pattern.
• Solder jack lead wires to your guitar jack.

920D Custom and Seymour Duncan combine again to make a sick 5-way HH loaded pickguard that will rock the house no matter where you're playing it. Check out the details below.

Seymour Duncan P-Rails Pickups

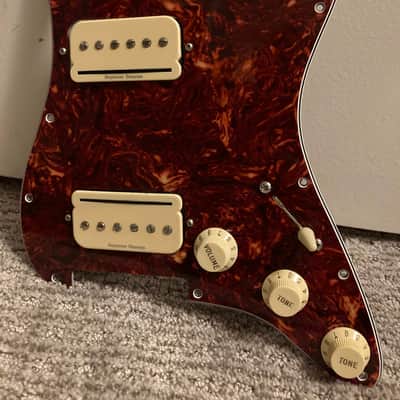

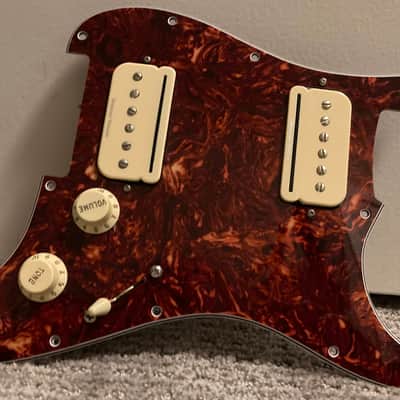

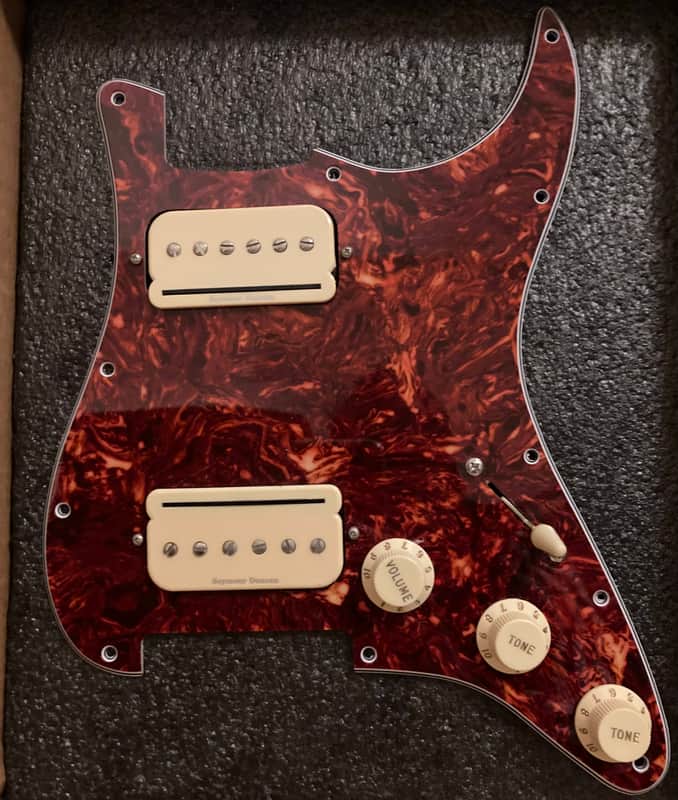

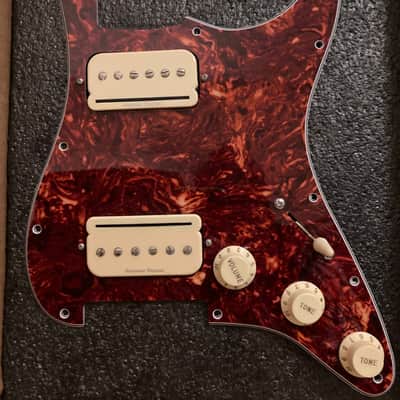

920D Custom 11-Hole 3-Ply Pickguard
Push/Pull Controlled Pickups
Plastic Skirted knobs
920D Custom 500K Pots
Bourns 500K Push/Pull tone pots
3-way Switch with Switch Tip
Orange Drop .022uF Cap
Gavitt Vintage Style Cloth Wiring

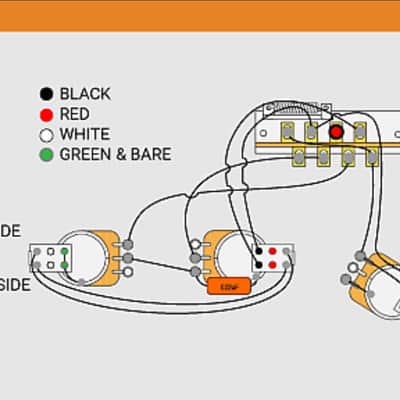

The push/pull tones work together to select the modality of the P-Rails pickups. With both tone knobs pulled up the P-Rails pickups are in parallel mode. With both tone knobs pushed down the P-Rails are in series mode. With one tone knob up and the other down you have the P90 side of the pickups selected. Reverse those tone knob settings to get the Rail mode of the pickups.

The bridge pickup is a P-Rail Trembucker and the neck P-Rail is standard size. The Push/Pulls control the functionality of the P-Rails pickups. The pickups can be used in rail, P-90, series humbucking, or parallel humbucking modes depending on the combination of how the Push/Pulls are set. The master volume potentiometer is 500K as well as the separate tone controls for each pickup.

Seymour Duncan P-Rails

Ground breaking, patent pending design allows a full-size humbucker to split to either a real deal P-90 or a traditional single coil. Perfect for a wide variety of styles including country, pop, surf, jazz, blues, classic rock, and heavy rock. Until now, if you wanted humbucker, P-90, and vintage tones, you'd have to haul three guitars to the gig. Enter P-Rails. It's a full-size humbucker that splits to either a full-size P-90 or a special Alnico-powered single-coil Rail pickup. The humbucker sound is full and expansive, owing to the mis-matched coil configuration. The P-90 is a super fat. And the Rail coils, when used together, sound like the 2 and 4 positions of a classic 5-way guitar.

*Continental US buyers only.*

**No returns on this loaded pickguard as it is ready to be enjoyed immediately by it’s next owner.**
