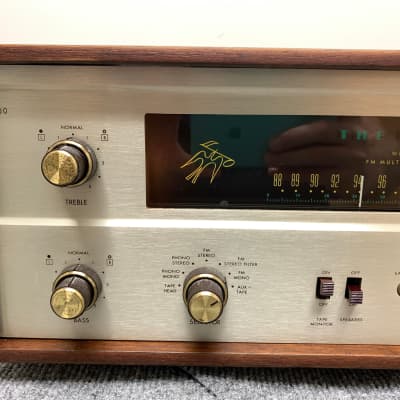

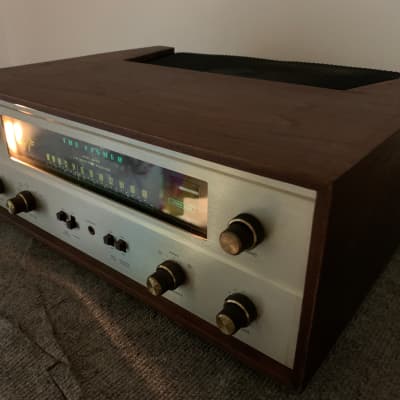

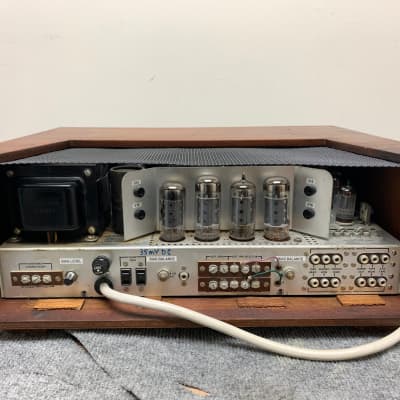

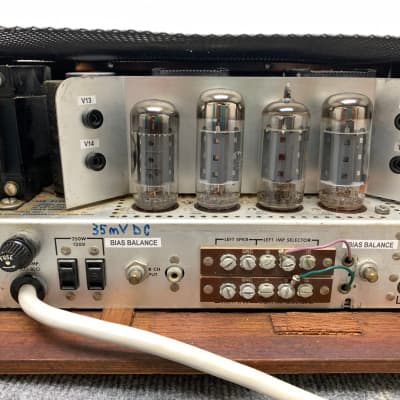

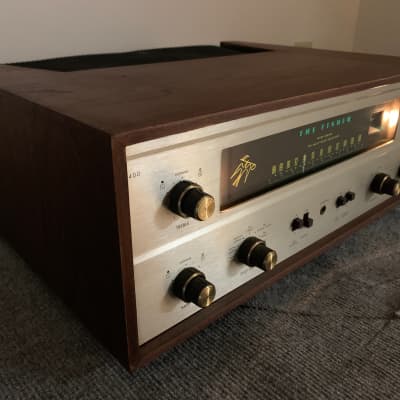

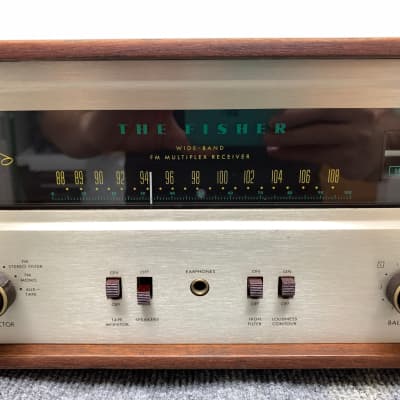

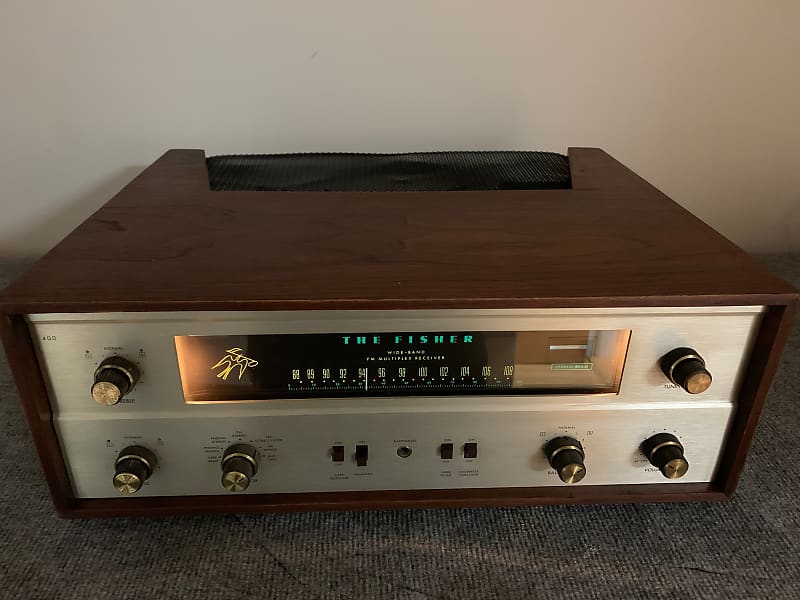

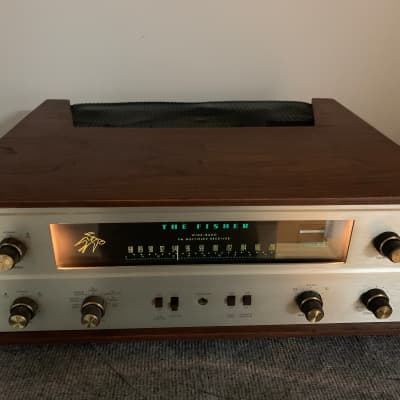

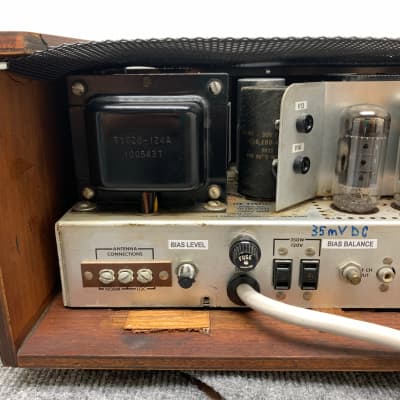

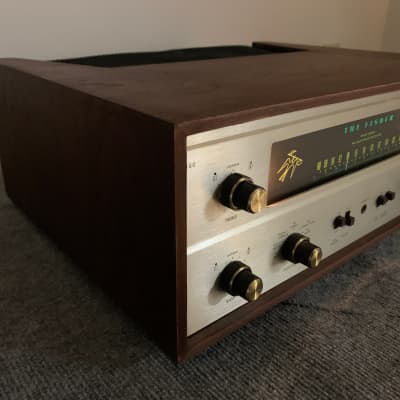

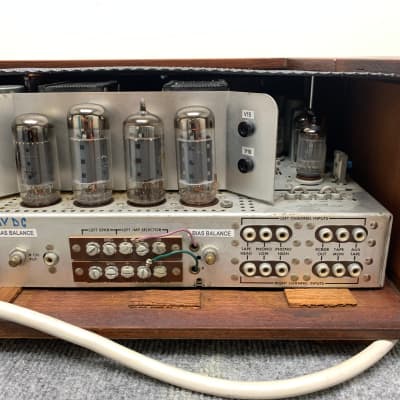

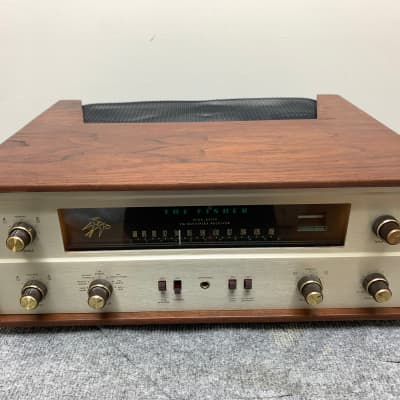

The Fisher 400 Tube Stereo Receiver * Rebuilt from A to Z * Immaculate and perfect Unit *

Hello and welcome to The Turntable Store  We are a brick and mortar store located in Manheim, PA and we specialize in Vintage Audio, mainly 70's and 80's, and Vintage Records. Please note that ALL OUR LISTINGS are for Serviced and in FULL WORKING ORDER ITEMS ( Unless specifically indicated as an AS IS, for PARTS or REPAIR ) Please also note that accessories ( ie Remotes) if available, will be included in the photos and mentioned in the description. Please do not assume availability. All our items are guaranteed to work and are covered by a 14 days full warranty  ( see our website for details ) Please contact Max at (717) 340-3810 for any question. Cheers :)  NO SHIPPING * LOCAL PICKUP ONLY Fisher 400

FM Vacuum Tube Stereo Receiver (1963-65)

Description

The new Fisher 400 incorporates on a single chassis a highly sensitive FM multiplex tuner, a master audio control with a full complement of controls and features, and a dual channel, 60 watt power amplifier with ample reserve power for full room volume with any pair of loudspeakers.

Many new advances in the technology of music reproduction have been included in the 400 design.

The front end for example is of the new Fisher Golden Synchrode design, employing a specially developed RF amplifier tube combined with three tuned circuits for maximum selectivity, sensitivity and rejection of unwanted signals.

Three wideband IF stages are used, followed by a radio detector that is linear over an extremely wide range.

The multiplex converter is the superior time-division type, utilising two balanced diode bridges and a synchronous oscillator acting together as electronic switches.

The circuit reduces noise and distortion to the theoretical minimum and achieves the greatest possible stereo separation.

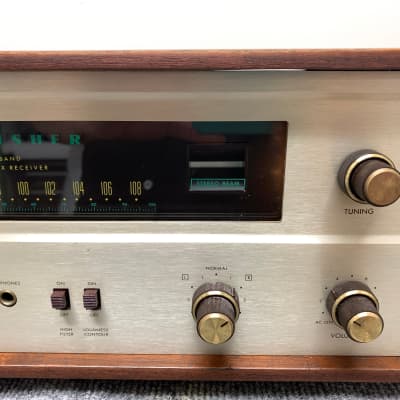

The famous Stereo Beam indicator signals instantly whenever a station transmits a multiplex stereo program.

Specifications

Tuning range: FM

Power output: 25 watts per channel into 8Ω (stereo)

Frequency response: 25Hz to 25kHz

Total harmonic distortion: 0.8%

Input sensitivity: 4.4mV (MM), 440mV (DIN), 280mV (line)

Signal to noise ratio: 80dB (line)

Channel separation: 50dB (line)

Year: 1964

Price: USD $329.50 (1963)
