Epiphone Quick Connect End + 5 attached Thin Wires: white, green, red, black, bare, black - 5 pin hole connection (for 4 conductor pup) 2023 - QC End - white hard plastic, length of wires 1 & 1/2" - for 4 conductor pup (NO: pickup, control harness)

Up for grabs is ONE very lightly handled / very clean (never used) genuine Epiphone Quick Connect end for 4 conductor pickup (NO pickup included and NO control harness or control harness parts included). White hard plastic with 5 pin holes and it has 5 short wires attached to it (length of wires 1 and 1/2 inches - not counting the white hard plastic connector piece).

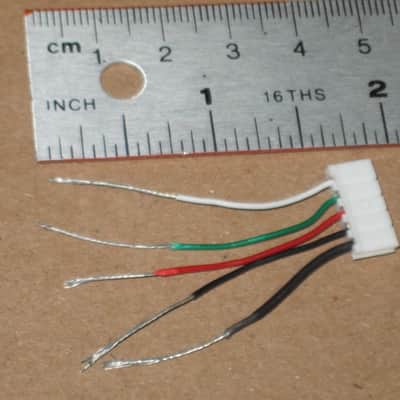

• SEE pictures # 7 to see measurement of the length of the wires - and to see the full length of the wires + the white hard plastic piece connector piece.

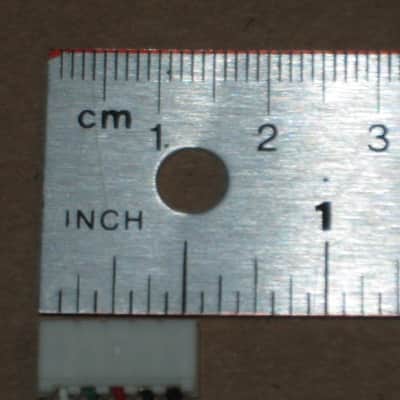

• See picture # 8 to see the horizontal measurement of the white hard plastic connector piece -- it's slightly more than 1/2 inch wide - which is 5/16" wide).
• Feel free to ask for more pictures.

NOTE: the outer black wire (which has a slightly thicker insulation that the other wires) is the bare / ground wire.

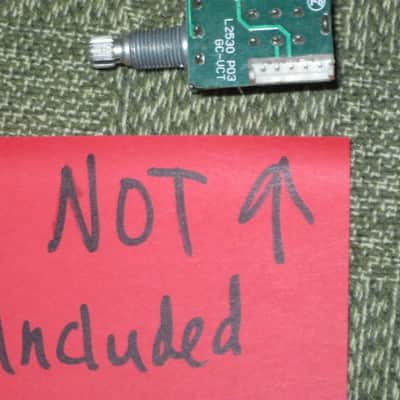

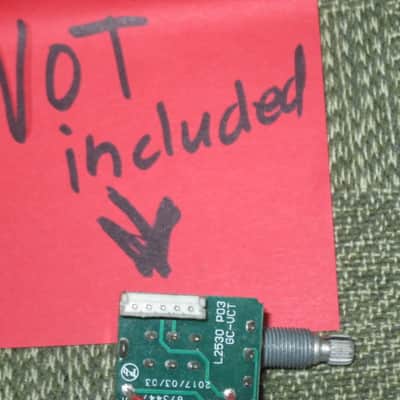

The control harness part(s) see in pictures # 9, # 10, # 12, and # 13 are ONLY shown as a reference. They are NOT included.

The five thin wires the have color insulation: white, green, red, black, & black. In case you don't know - one of the black wires is a ground and connects to the bare wire of your pickup wire. You connect green to green, red to red and so on....

You'll need electrical heat shrink tubing and a soldering iron to make the wire connections for your pickup to this Quick Connect part with wires. Or your guitar tech can do it for you. You can use the soldering iron to shrink the electrical heat shrink tubing - but you can use a heat gun. But you have more control with the soldering iron. You can go to YouTube to see people doing pickup projects...

The electrical heat shrink tubing is NOT included. But I have some on hand. Upon request (NO additional cost) I can include enough electrical heat shrink tubing for you to make the connections. Please message me if you need any electric heat shrink tubing. IT WILL ONLY BE INCLUDED IF YOU ASK FOR IT.

Two-thirds of each wire has the color insulation on. One-third of each wires is bare (I prepared this item to have the expose wire ends to make things easier for you 😉👍👍

5 pin hole connection (for 4 conductor pup)

This Quick Connect End + very short wires came off of a 2023 Epiphone Alnico Classic Pro ACPNHZCB-4 bridge humbucker pickup. NO pickup included. But I have it listed. Here's the link for it:

• https://reverb.com/item/85941353-one-new-old-stock-very-near-a-epiphone-acpnhzcb-4-alnico-classic-pro-bridge-humbucker-zebra-8-1k-alnico-v-solder-connection-4-conductor-screws-springs-from-2023-part-of-epiphone-s-pro-series-line-of-humbuckers-which-is-called-probuckers
• Please message me of you plane to purchase the pickup in addition to quick connect part with wires.
• On hand - NO listed yet -- available for sale upon request -- I have the same model & color pickup with the Quick Connect part still on and I have the matching neck position pickup too (also with the quick connect piece still on). Please message me if you want to check one or both of them out.

This listing is for one of this Quick Connect part with very short wires - I have five more on hand (in similar condition) available for sale - upon request.

• Please message me if you would like to purchase more than one. And I can respond with a couple of pictured.
• The shipping / packaging cost will not increase if more than one of this item purchased.

I took several pictures of this item. A few pictures show it next to a ruler. And a few pictures the type of connector it goes on to on the control harness (control harness NOT included / NO control harness parts included).

Feel free to ask for more pictures.

NOTE:  There may be a a few minor imperfections that I overlooked. There are a few imperfections that can be see in person that are not visible in the pictures (or that look a little different in person than they do in the pictures).  And - there are a few glares that show up in the pictures that aren't visible in person .

===

• Comes from a smoke free and pet free environment.
• Feel free to ask questions.
• Will discount shipping on combined purchases!!

• USA Shipping is with USPS First Class Mail (with tracking).  Please message me if you would like me to ship with USPS Priority Mail which costs $14
• International Shipping is with First Class Mail International (with tracking).
