Journey Instruments OF422 Collapsible Travel Guitar

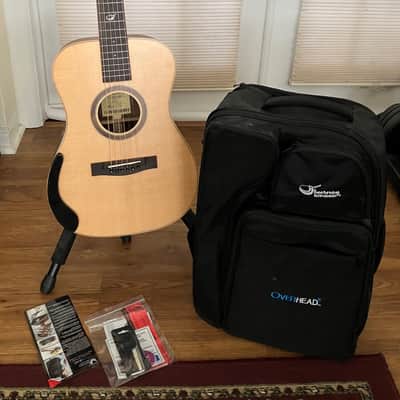

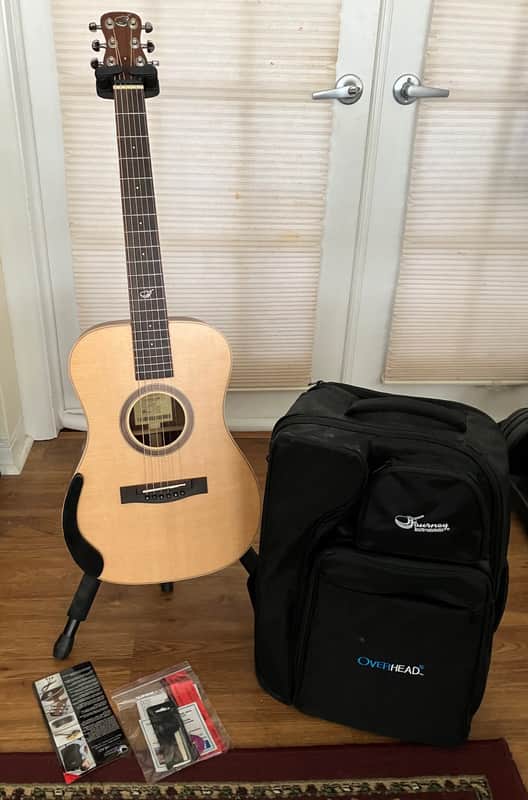

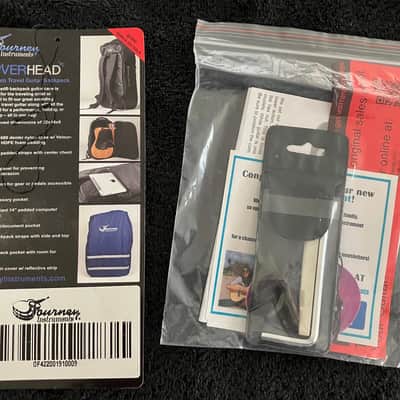

This Journey Instruments OF422 Collapsible Travel Guitar is in excellent condition and includes the case and all original documentation.

Description

The OF422 Overhead® collapsible acoustic travel guitar features a solid sitka top with solid Pau Ferro Rosewood back with a wider 13.25″ lower bout – and collapses to carry-on size of 22*14*9 inches! It assembles in 20 seconds with our patented detachable neck system that’s guaranteed for life. A full 24.5 inch scale, a versatile 1 3/4 nut width, locking 18:1 Journey Tuners , best-in-class components, and a wedged ergonomic design make this the most enjoyable guitar you’ll ever play! Tri-piezo pickup and a full-featured TSA compliant carry-on backpack included.

Designed for Travel

The Overhead travel guitar uses a patented collapsible neck system which allows for assembly/disassembly in a matter of seconds.

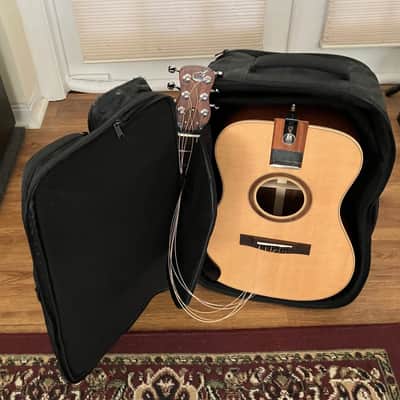

After packing in its travel backpack the Overhead travel guitar can be carried-on to most major airlines, easily fitting in the overhead bin compartment.

Travel backpack includes a TSA compliant laptop tablet fold-out panel which can be scanned by airport security without having to separately remove laptop.

Proprietary under-bridge transducer pickup system accurately amplifies the guitar and comes with all Overhead guitars.

Full Tone in a Travel Body

The wedge design gives a lower shoulder/bout depth that’s deeper than a dreadnought, allowing the smaller body size to deliver great volume and booming bass.

Bone nut, compensated bone saddle, and ebony bridge pins all help produce the the tone preferred by acoustic guitarists.

Traditional sound-hole design with forward-shifted, tapered X-bracing maximizes the resonance and volume of the soundboard.

Comfortable to Play

The wedge design angles the guitar into your body which places the guitar in a comfortable position for fingerboard access and viewing.

The dual-action steel truss-rod enables fine tuning of relief to suit any playing style.

Satin-finish low-c profile neck make this 24.5 inch scale super comfortable to play.

Guitar Specifications

Proprietary Body Design:

• Stylized 00 body shape
• Center sound hole with Pau Ferro rosette
• Wedge design for increased volume, comfort and efficiency
• Soundboard:
• Hand-selected Premium Solid Sitka Spruce

Back and Sides:

• Premium Solid Pau Ferro back, laminate sides
• Bracing:
• Forward-shifted tapered X-bracing
• Compound block for reduced weight and strengthened latch support
• Binding and Markings:
• MOP logo and position markings
• Maple binding

Scale:

24.5 in (622.3 mm)

Finish:

• Satin on soundboard, back, and sides

Bridge:

• Ovangkol, high break-angle
• Tuners:
• Grover® 18:1 or Journey 18:1 Locking Tuners
• Removable Neck Assembly:
• Stainless steel load-bearing components
• Push-button release latch under neck
• Large adjustment knob on back

Neck:

• Carbon fiber reinforced traditional C shape with two-way adjustable truss rod
• Solid African Mahogany
• Deep-slotted bone nut
• Neck width at nut: 1 ¾ in (44.5 mm)
• Neck width at 12th fret: 2.2 in (56 mm)
• 14 Frets to body
• 20 Frets total

Fret Board:

• 16 inch Radius, Ovangkol
• Medium brass fret wire
• String Spacing:
• 2 ¼ in (>57.2mm)
• Compensated bone saddle

Guitar Dimensions and Weights:

• Weight: 4.4 lbs (2.0kg)
• Weight With Case: 7.4 lbs (3.3kg)
• Maximum depth: 4.64 in (11.8cm)
• Minimum Depth: 3.5 in (8.9 cm)
• Body Length: 18 in (45.7cm)
• Total Length: 35.5 in (90cm)
• Lower Bout Width: 13.25 in (33.7 cm)

Travel Backpack Specifications

• Tech Travel Ready:
• TSA compliant 14-inch computer compartment for optimal airport security inspection
• Easy-access tablet pocket for up to 9.5 inch tablet devices
• All- Premium Material Construction:
• Extra-durable Ballistic Nylon external case with premium nylon and velour lining
• Extra-padded Body compartment with premium velour
• Internally-accessible padded neck compartment with premium velour and string slot
• Padded string panel with strings positioning tab
• Padded Top and Side handles
• Extra Compartments for Your Journey:
• Internal/externally accessible compartment for accessories
• Additional external topside pocket for additional accessories
• Additional elastic pockets in computer compartment
• Hideaway, reinforced padded backpack straps with padded back
• Maximum Case Dimensions: L*W*H: 22*14*9 in ( 55.9*35.5* 22.9 cm)
