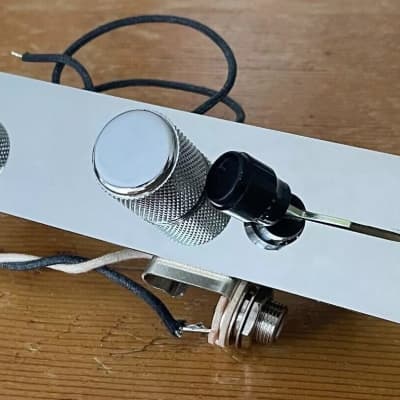

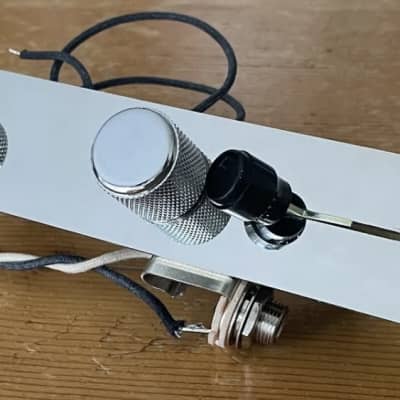

Fender Esquire Eldred Mod Wiring Harness Upgrade 250k CTS Pots .047 Orange Drop Cap Oak Grigsby Switch PLATE/KNOBS

What is it?

Pre-wired Esquire (one pickup) Eldred Mod wiring harness upgrade for American or Mexican Fender Esquire (one pickup, v/t). Hand wired with the highest quality parts and cleanest solder connections from a professional guitar tech. This wiring harness will give you the clearest signal possible with even and balanced volume/tone roll off.

Esquire Eldred Mod Switch Controls:

Switch position #1. This rear position is the same as on a standard Esquire. The pickup goes through the volume control only, with the tone control bypassed for a brighter more present lead sound with added treble.

Switch position #2. This middle position is also the same as on a standard Esquire, with the pickup going through both the volume and tone controls. It sounds a little warmer with less highs than position #1.

Switch position #3 In the front position of the Eldred Esquire wiring setup, the pickup goes through a single 0.0047uF capacitor and the volume control, with the tone control once again bypassed. It removes the fixed treble roll-off network and replaces it with the capacitor. This offers an extra dimension and more flexibility and gives what is popularly known as the "cocked-wah" effect.

Includes:

-CTS 250k solid shaft potentiometers. Master volume and master tone.

-Oak Grigsby 3 way Switch

-.047mfd Orange Drop Tone capacitor

-.0047uf Ceramic Disc Capacitor

-Switchcraft 1/4in jack

-Vintage style pull back cloth wire (7 strand 22 gauge wire for the clearest signal path)

-Telecaster control plate and knobs

-Wiring diagram included
