Description

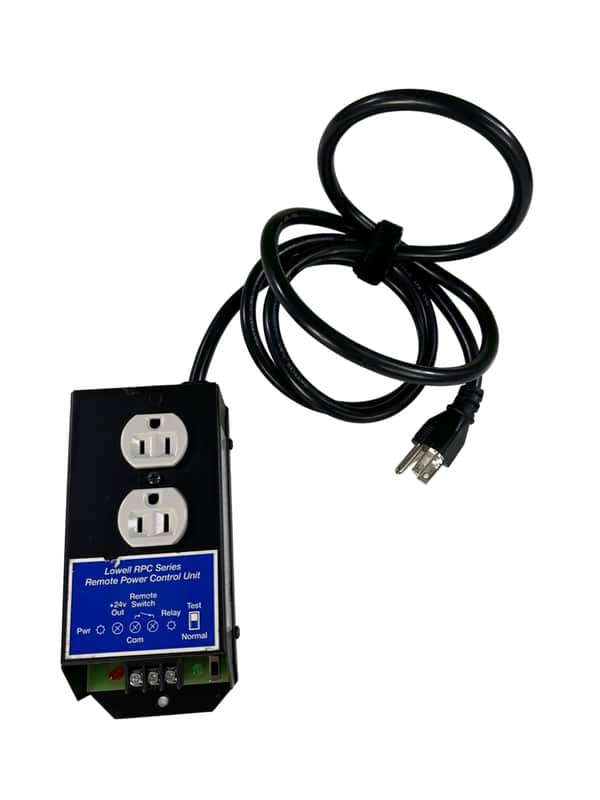

Lowell RPC-1 Series UL Listed remote power controls may be
combined with a variety of switches, modules, and/or sequential control devices (manufactured by Lowell or others) to provide a
versatile low-voltage method of turning specific equipment on
and off from a remote location. The ability to safely control AC
power distribution without directly accessing equipment
minimizes the potential for accidental or unauthorized system
modifications, adjustments, or vandalism. System integration
applications include commercial, educational, entertainment,
government, and religious facilities where remote power
control is required.
RPC-1 controls are typically installed in the rear of an equipment cabinet, in close proximity to the equipment that is to
be remotely switched. Low-voltage, 3-conductor cable is
then run from the RPC-1 terminal strip to a control switch
such as Lowell wall switch Model RPSW-P (figure 1) or rackmount panel switch Model RPSB-R. Systems may also be
configured with multiple RPC-1 controls activated by a single
switch (figure 1) or with one or more RPC-1 controls activated
by multiple switches (figure 2). RPC-1 controls are also a key
component in Lowell's modular sequential control systems for
installations where equipment must be activated in a
time/delay sequence (see SCS Series spec sheet # 1c-401).
Each RPC-1 assembly includes a power supply and relay
with selection of outlet and termination styles to meet application needs. All models are housed in a 7.5"L x 3.25"W x
2.75"H steel chassis finished in black powder epoxy.
Assemblies are UL Listed under Standard 813.
Condition: Pre-Owned Good
Excellent lightly used condition, fully working
| Listed | 2 years ago |
|---|---|
| Condition | Very Good (Used) Very Good items may show a few slight marks or scratches but are fully functional and in overall great shape.Learn more |
| Brand | |
| Model |
|
