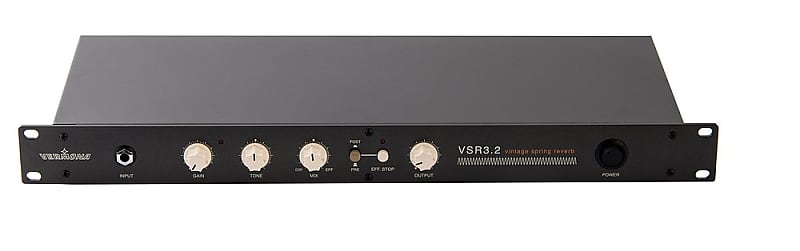

Proven reverberation classic for the future

With the VSR 3.2, we happily rely on the proven old mechanical way to create reverberation. Rightly, because the used reverberation spring by AccuBell (formerly Accutronics) creates that magic 60's reverb which is slightly metallic and dense at the same time.

Just like it predecessors, VSR 3.2 has a straight-forward and honest approach: signal in - spring reverb - vintage sound out.

VSR 3.2 is equipped with an equalizer that is exactly adapted to the springs' frequency response. In addition, there are controls to mix the dry and effect signal as well as controls for the input and output level. This way, VSR 3.2 simply exactly does what it was designed to do.

Designed for every situation

Although using a large spring (type 9), VSR 3.2 fits in a 19" housing with one rack unit – minimal space requirements. Thanks to its extremely solid chassis, VSR 3.2 is a reliable vintage-effect that cannot only be used in a controlled studio environment. On the contrary, it also serves fine when being used in straining live situations.

VSR 3.2 grants your sound an elegant touch of "good old times". Its simplicity makes it an unbelievable versatile companion.

Inputs

• 1/4"-jack input front
  • unbalanced
  • max. input sensitivity: –40 dBu
  • impedance: 1 MΩ
• 1/4"-jack input rear (1)
  • unbalanced
  • max. input sensitivity: 0 dBu
  • impedance: 100 kΩ
• 1/4"-jack input rear (2)
  • unbalanced
  • max. input sensitivity: –20 dBu
  • impedance: 10 kΩ

Outputs

• 1/4"-jack output (1)
  • unbalanced
  • max. output level: 0 dBu
• 1/4"-jack output (2)
  • unbalanced
  • max. output level: - 20 dBu

Signal-to-Noise Ratio

• direct: > 80 dBu
• effect: > 70 dBu

THD + Noise

• direct: < 0,1 %

Miscellaneous

• power supply: external DC-adapter with 12 V/1000 mA
• dimensions: 19“, 1 HE, ca. 190 mm deep
• weight: 2.5 kg
