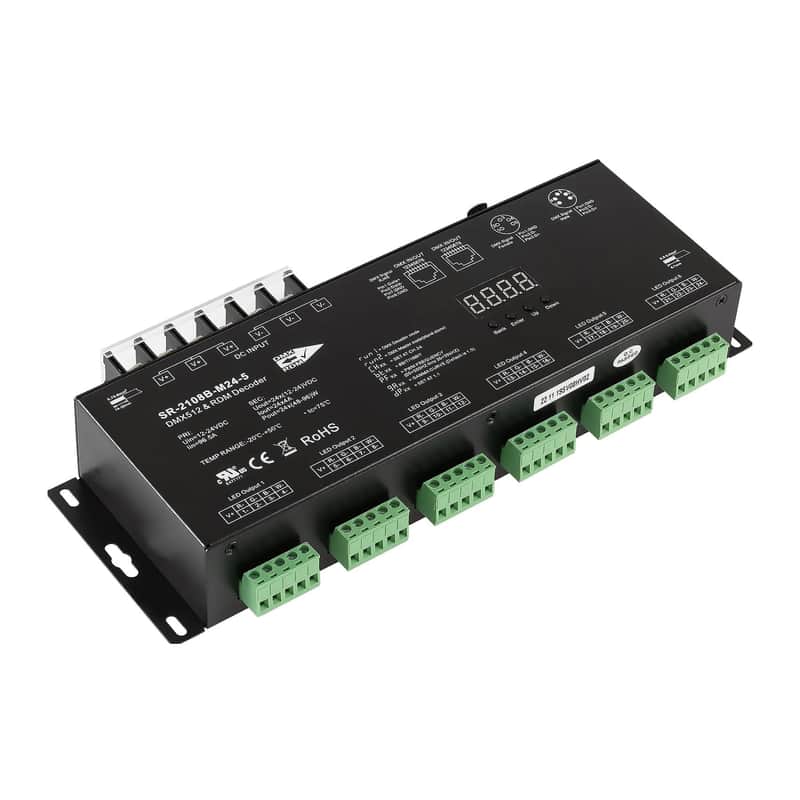

SIRS-E® LED DMX RDM Decoder 24 Channel RGB & RGBW Controller 4A/CH, 12-24V DC, 1152-2304W, UL Recognized

FEATURES

• Master & Slave Mode
• PWM DMX Decoder
• Selectable 8-Bit or 16-Bit PWM Ratios
• Easy to read Digital Display
• Meets DMX512/1990
• 256-levels of brightness, full color with driver controls
• Can achieve asynchronous color changes effects
• Capable of controlling LED light with 1-5 colors
• Freely set the DMX address 1-512
• Modularizing can be matched with different LED modules

TECHNICAL SPECIFICATIONS

• DMX512 LED Decoder
• Constant Voltage
• Selectable 1 to 24 Output Channels
• Input Voltage: 12~24V DC
• Output Current: 24 x 4A
• Output Power: 1152-2304W
• Output: To LED
• Flicker-Free: Adjustable Frequency - 500 Hz-30kHz
• Part Number: SR-2108B-M24-5
• Certifications: UL Recognized, RoHS, CE
• Warranty: 3 Year

BOX CONTENT

• DMX Decoder
• Datasheet

  SKU# SR-2108B-M24-5 The SIRS-E® DMX512 & RDM PWM Decoder 24 x 4A is a highly reliable and cost-effective product for LED lighting installations. This LED Decoder provides you with the freedom to control 1 to 24 channels of RGB / RGBW / RGBWW LED strips, and LED modules, and each channel provides you control from 1-256 levels of intensity.

  Downloadable Documentation:
  Datasheet
