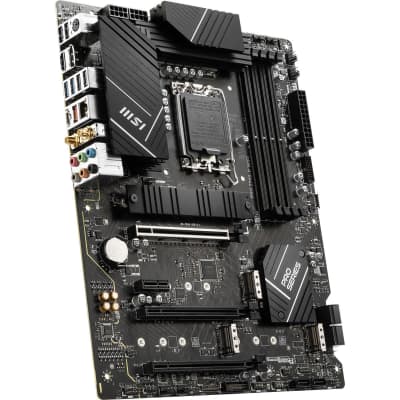

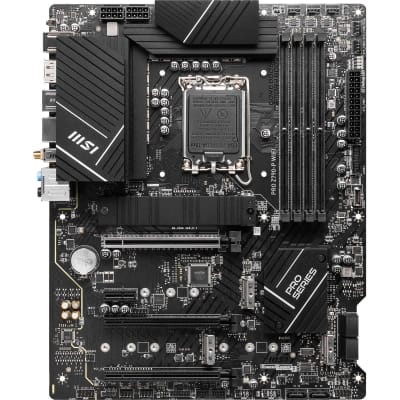

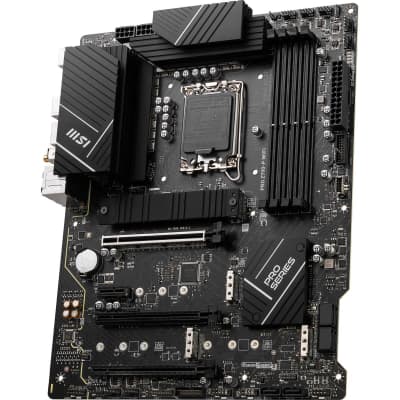

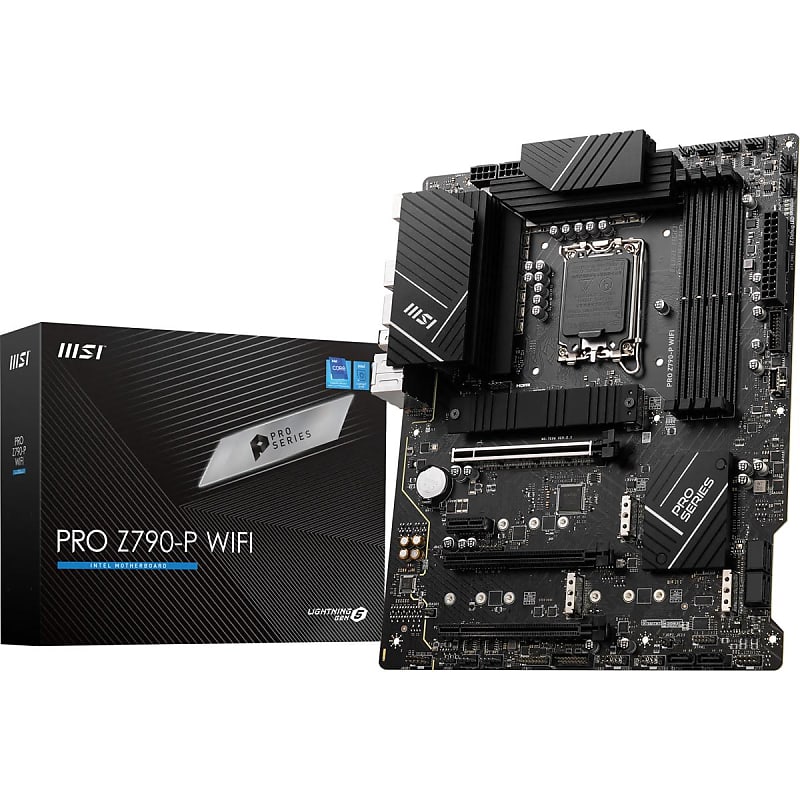

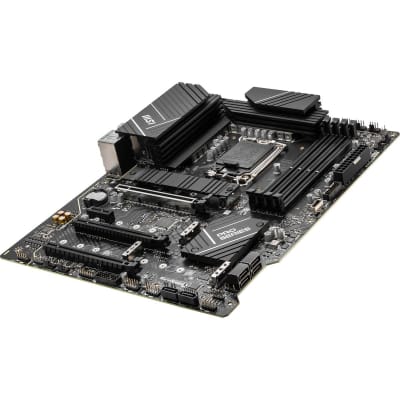

MSI PRO Z790-P Wi-Fi DDR5 LGA 1700 SATA 6Gb/s ATX Motherboard

With the PRO Z790-P Wi-Fi DDR5 LGA 1700 SATA 6Gb/s ATX Motherboard, experience superior computing power and efficiency. This high-quality motherboard is designed to support 12th and 13th Gen Intel Core Processors, Pentium Gold, and Celeron Processors, making it a reliable choice for advanced computing needs. The motherboard features Lightning Gen 5, the latest PCIe 5.0 solution, offering up to 128GB/s bandwidth for maximum transfer speed. It also supports the latest DDR5 memory and is equipped with MSI Memory Boost technologies to enhance your system's performance. For seamless connectivity, the PRO Z790-P Wi-Fi DDR5 LGA 1700 SATA 6Gb/s ATX Motherboard comes with Wi-Fi 6E that supports 6GHz spectrum MU-MIMO and BSS color technology, delivering speeds up to 2400Mbps. The built-in USB 3.2 Gen 2x2 port offers a 20Gbps transmission speed, which is four times faster than USB 3.2 Gen 1, ensuring efficient data transfer. The motherboard also features a premium 2.5G LAN for an improved network experience. Its extended PWM heatsink and enhanced circuit design ensure even high-end processors run at full speed. The built-in M.2 thermal solution keeps M.2 SSDs safe while preventing throttling, allowing them to run faster. The PRO Z790-P Wi-Fi DDR5 LGA 1700 SATA 6Gb/s ATX Motherboard also comes with Frozr AI Cooling that detects CPU and GPU temperatures and automatically adjusts system fan duty to a proper value. This advanced motherboard is also equipped with MSI Center Features like Gaming Mode, Smart Priority, Game Highlights, Mystic light, Ambient Devices, Frozr AI Cooling, User Scenario, True Color, Live Update, Hardware Monitoring, Super Charger, Devices Speed Up, Smart Image Finder, MSI Companion, System Diagnosis, System Info, Microsoft App, My Device, and MSI Display kit. The motherboard's thermal features include Heat-pipe Design, Extended Heatsink Design, M.2 Shield Frozr, K7 MOSFET thermal pad/Extra choke pad, and Fan headers (CPU + PUMP + SYSTEM). It also supports Core Boost, Dual CPU Power, Memory Boost, Lightning Gen 5 PCI-E, Lightning Gen 4 PCI-E/M.2 Slot, Front USB Type-C, Server Grade PCB, and 2oz Copper thickened PCB for enhanced performance. For DIY enthusiasts, the motherboard offers PCI-E Steel Armor, Pre-installed I/O Shield, Screwless M.2 Shield Frozr, EZ M.2 Clips, EZ DEBUG LED, EZ LED Control, and Flash BIOS Button. It also supports Audio Boost 5 RGB, Mystic Light, Mystic Light Extension (RGB), Mystic Light Extension (ARGB Gen2), and Ambient Devices Support. The motherboard comes with Click BIOS 5 for easy system management. In summary, the PRO Z790-P Wi-Fi DDR5 LGA 1700 SATA 6Gb/s ATX Motherboard is a durable, efficient, and advanced solution for your desktop computing needs. Includes: MSI PRO Z790-P Wi-Fi DDR5 LGA 1700 SATA 6Gb/s ATX Motherboard - 3x M.2 Clips - Wi-Fi Antenna - 2x SATA Cables - I/O Shield - Driver DVD - European Union Regulatory Notice - Quick Installation Guide - MSI 3 Year Limited Warranty Features: PRO Z790-P Wi-Fi Motherboard supports 12th and 13th Gen Intel Core Processors Lightning Gen 5 is the latest PCIe 5.0 solution with up to 128GB/s bandwidth for maximum transfer speed Latest DDR5 memory and MSI Memory Boost technologies enhances performance Wi-Fi 6E supports 6GHz spectrum MU-MIMO and BSS color technology, delivering speeds up to 2400Mbps Premium 2.5G LAN deliver better network experience Specifications: CPU: Supports 12th/ 13th Gen Intel CoreTM Processors, Pentium Gold and Celeron Processors Processor socket LGA1700 Chipset: Intel Z790 Chipset Memory: 4x DDR5 memory slots, supporting up to 128GB
Supports 1R 5600 MHz (by JEDEC & POR)

Max. overclocking frequency:
1DPC 1R Max speed up to 7000+ MHz
1DPC 2R Max speed up to 6400+ MHz
2DPC 1R Max speed up to 6400+ MHz
2DPC 2R Max speed up to 5600+ MHz

Supports Intel XMP 3.0 OC
Supports Dual-Controller Dual-Channel mode
Supports non-ECC, un-buffered memory Expansion Slots: 3x PCIe x16 slots PCI_E1 slot (From CPU) Supports up to PCIe 5.0 x16 PCI_E3 & PCI_E4 slots (From Z790 chipset) PCI_E3 supports up to PCIe 4.0 x4 PCI_E4 supports up to PCIe 3.0 x1 PCIe x1 slot (From Z790 chipset) PCI_E2 supports up to PCIe 3.0 x1 Onboard Graphics: HDMI 2.1 with HDR port, supports a maximum resolution of 4K 60Hz DisplayPort 1.4 port with HBR3, supporting a maximum resolution of 4K 60Hz SATA Ports: 6x SATA 6Gb/s ports (From Z790 chipset) M.2 SSD Slots: 4x M.2 slots (Key M) M2_1 slot (From CPU) Supports up to PCIe 4.0 x4 Supports 2242/ 2260/ 2280/ 22110 storage devices M2_2 slot (From Z790 chipset) Supports up to PCIe 4.0 x4 Supports 2242/ 2260/ 2280 storage devices M2_3 slot (From Z790 chipset) M.2 SSD Slots (Contd.): Supports up to PCIe 4.0 x4 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices M2_4 slot (From Z790 chipset) Supports up to PCIe 4.0 x4 Supports SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices RAID: Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1 , RAID 5 and RAID 10 for M.2 NVMe storage devices Audio: Realtek ALC4080 Codec: 7.1-Channel High Definition Audio LAN: Intel 2.5Gbps LAN controller Wi-Fi & Bluetooth: Intel Wi-Fi 6E:
The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz (160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.2, FIPS, FISMA Power Connectors: 24-pin ATX main power connector 2x 8-pin ATX 12V power connectors Internal USB Connectors: USB 3.2 Gen 2x2 20Gbps Type-C port (From Z790 chipset) USB 3.2 Gen 1 5Gbps connector (From Z790 chipset) Supports additional 2 USB 3.2 Gen 1 5Gbps ports
2x USB 2.0 Type-A connectors (From Hub-GL850G) Supports additional 4 USB 2.0 ports Fan Connectors: 4-pin CPU fan connector
4-pin water-pump fan connector
6x 4-pin system fan connectors System Connectors: Front panel audio connector
2x System panel connectors Chassis Intrusion connector TPM module connector Tuning controller connector TBT connector (Supports RTD3) Jumpers: Clear CMOS jumper LED Features: 4x EZ Debug LED
4-pin RGB LED connector

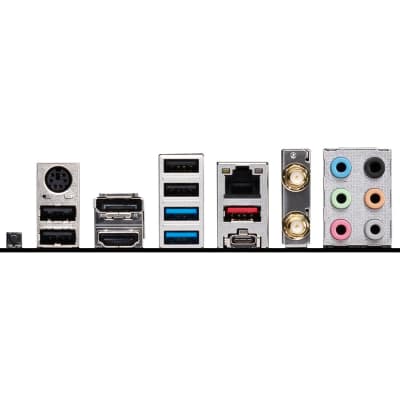

2x 3-pin ARGB Gen2 LED connectors Back Panel Connectors: Flash BIOS button PS/2 port 4x USB 2.0 Type-A ports (From Z790 chipset) DisplayPort HDMI port LAN (RJ45) jack 2x USB 3.2 Gen 1 5Gbps Type-A ports (From Z790 chipset) USB 3.2 Gen 2 10Gbps Type-A port (From Z790 chipset) USB 3.2 Gen 2x2 20Gbps Type-C port (From Z790 chipset) 2x Wi-Fi Antenna connectors 6x Audio jacks I/O Controller: NUVOTON NCT6687D-M Controller Chip Hardware Monitor: CPU/ System/ Chipset temperature detection CPU/ System/ Pump fan speed detection CPU/ System/ Pump fan speed control Form Factor: ATX Form Factor 12 x 9.6 (30.5 x 24.4cm) BIOS Features: 256 Mb flash UEFI AMI BIOS ACPI 6.4, SMBIOS 3.5 Multi-language Software: Drivers MSI Center Intel Extreme Tuning Utility CPU-Z MSI GAMING NortonTM Internet Security Solution AIDA64
