Orla DSE 24 - Dynamic Sound FM Expander Module Synth (made in Italy in 1986) with the super rare original manual!

We are selling this rare and vintage italian FM expander synth Orla DSE 24 from 1986, rebranded from the German model Dr. Böhm 12/24, originally based on Yamaha FM chips!

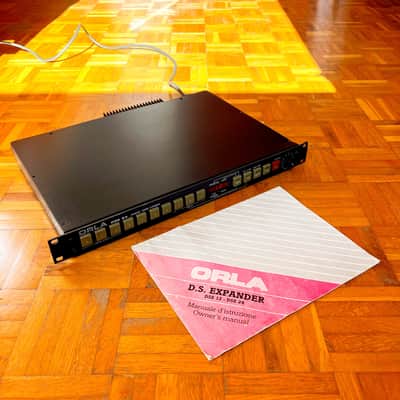

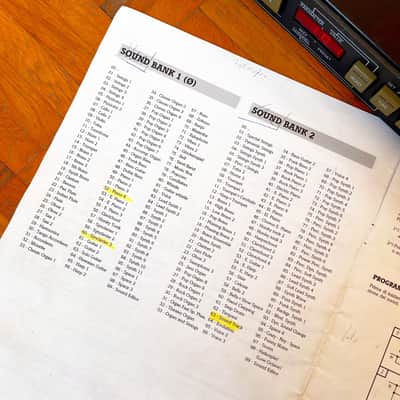

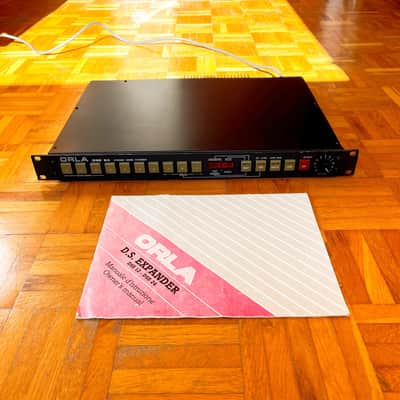

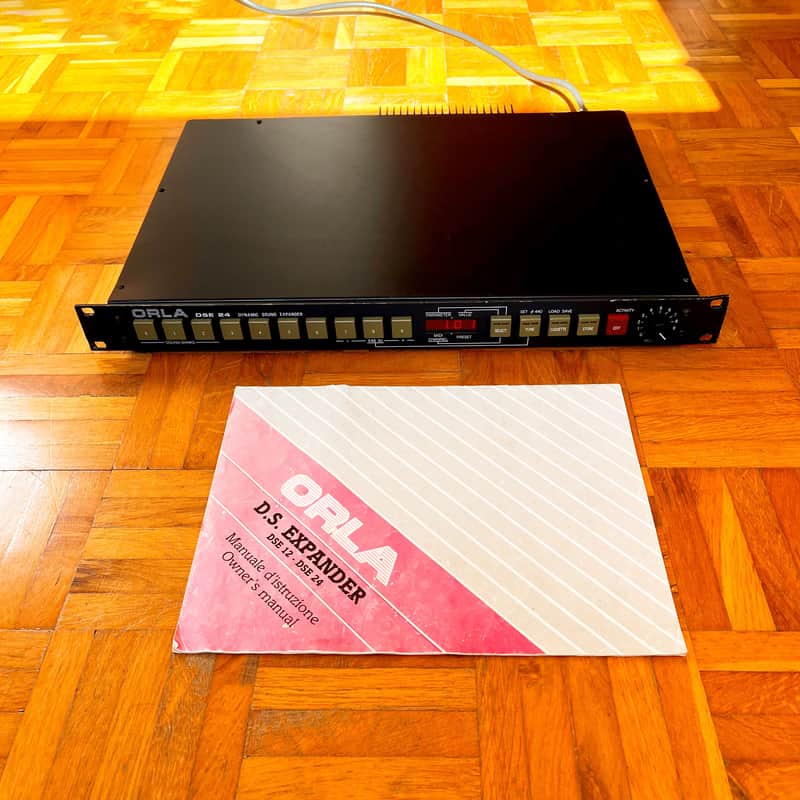

CONDITION: This synth is fully working and in very good cosmetical condition for its age with some cosmetical traces of use. It comes with a compatible power cord and the original Owner’s printed manual. Works perfectly with any MIDI controller. Comes With European power cord. 220 Volt.

It’s a super rare gem: it was listed originally for $699.00!

DESCRIPTION:

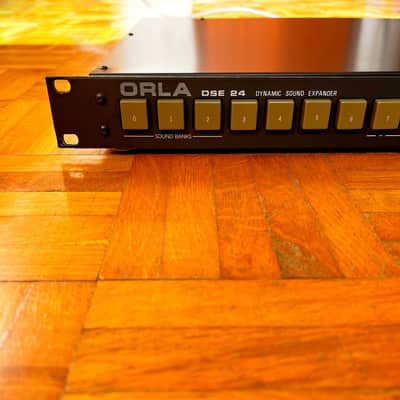

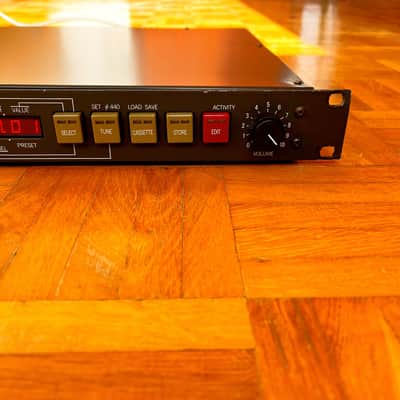

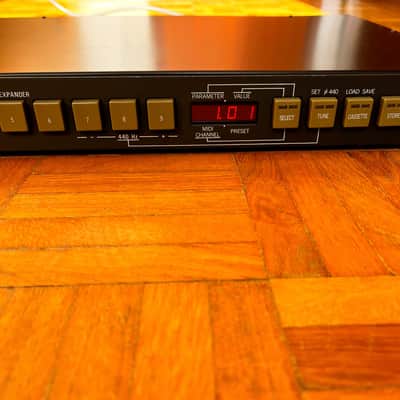

- MAIN PANEL features a simple segments display, 15 buttons and 1 volume knob.

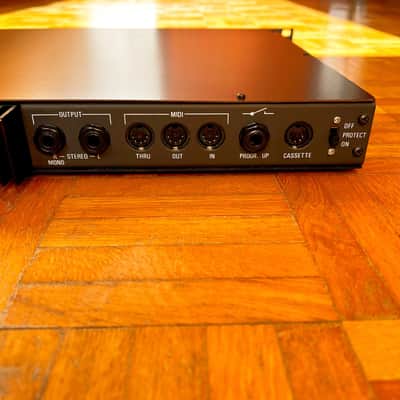

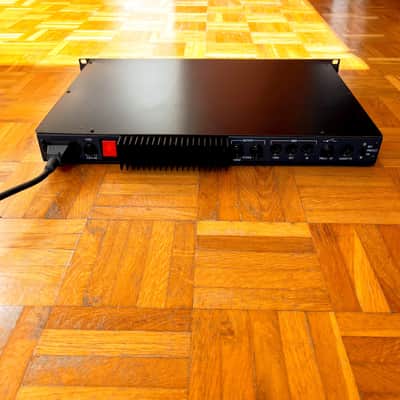

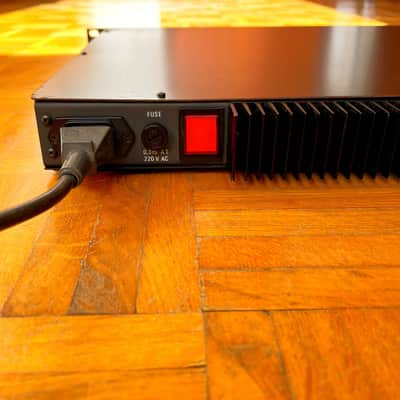

- BACK PANEL terminal connectors are:

• Master out
• Midi interface
• Tape interface
• Footswitch input for patch increase

- VOICE up to 24 voices polyphony which hardware is based on Yamaha YM chips:

• 4 oscillators operators
• 8 connection diagram algorithms

- FM SYNTHESIS concept is close to 4OP Yamaha TX-81Z concept but with only sinewave and thus no harmonic variations. There are 4 sinewave operators organized as algorithms, assigned as carrier or modulator linked between them on different pathways interacting on their harmonic contents depending on the variable feedback strength.

• Carrier: defines the amplitude and the spectral frequency
• Modulator: sets the sound timbre and the relative harmonic contents.

The module offers 8 algorithms with frequency ratio or fixed frequency: the output is fed back to its input with 7 different levels feedback, as general rule: high values feedback results in richer harmonic contents.

LFO 2 delayed modulators with variable depth amount and 2 destinations:
• LFO amplitude
• LFO pitch

ENVELOPE up to 5 EGs:
• 1 EG for each OP: 4 segments +1 sustain time
• 1 EG pitch and 7 preset templates
• EG scaling tracking amplitude on lower or higher octaves

PERFORMANCE up to 16 parts with some functions:
• Monophonic mode with glide option
• Voices stack
• Detune mode

Weight: 4.5 Kg

Measurements: 48 x 31 x 4.5 cm

What sets this synth aside from the more conventional 4OP FM offerings such as the DX9 is that not only does the triple ensemble generator add a whole new dimension to the sound it starts to make you view the FM side as a starting point to the final found rather than the sound itself.

With this way of thinking it is possible to generate everything from remarkably analog sounding Solina style strings to warm complex evolving pads!

THIS ORLA DSE-24 IS FULLY WORKING AND IN VERY GOOD COSMETICAL CONDITIONS FOR ITS AGE. IT WILL BE PACKAGED IN A PROFESSIONAL WAY (PLEASE, READ OUR FEEDBACK), BUT IN ANY CASE IT WILL BE SOLD AT BUYER'S RISK, WITHOUT WARRANTY AGAINST POSSIBLE DEFECTS DUE TO TRANSPORT: WE CAN'T OFFER ANY REFUND OR RETURN!

This is your chance to get your hands on a super rare and ultra cool FM synthesizer!

See photos & condition description for condition details, but feel free to ask questions.

OPEN TO OFFERS!
