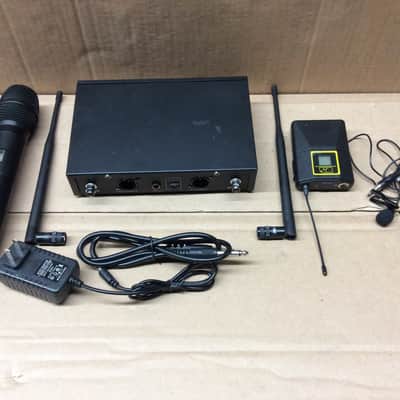

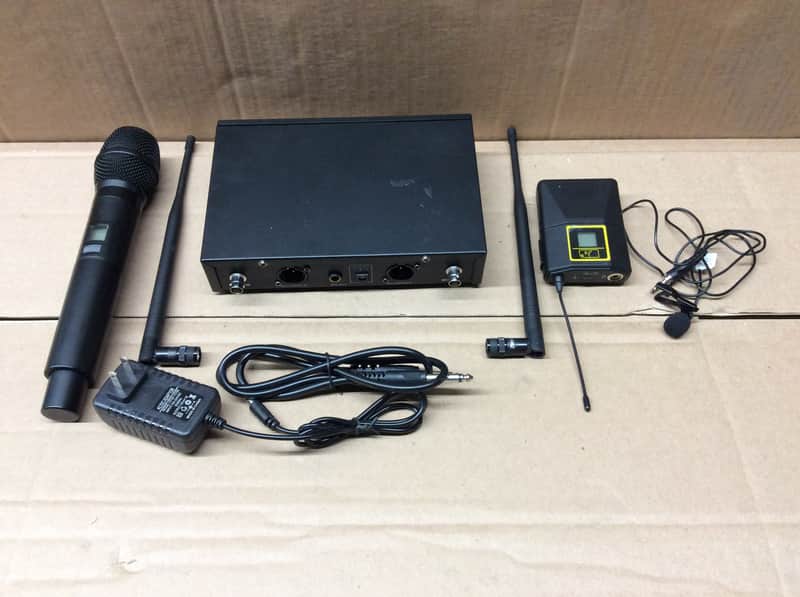

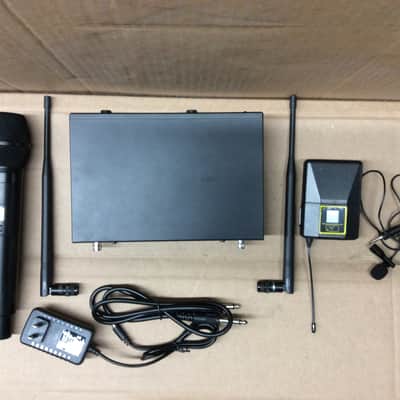

Wireless mic dsp system with echo EQ Anti-howling 200 channels software control

Specification:

• (1) comprehensive characteristics

• Radio frequency range: 694MHz--758MHz

• Digital modulation method: pi/4DQPSK

• Oscillation mode: VCO oscillation inside the chip

• Signal-to-noise ratio S/N:>80dB

• Distortion: <0.5%(1KHz,A-weighted)

• Audio sample rate: 48kHz sample rate mode

• Frequency response: 30Hz~18KHz±3dB

• Cover range: 100M


• (2) Receiver:

• ① ECHO: 3 level

• ② EQ: 3 level

• ③ Anti-howling: 1 level

• ④ Exciter: 3 level

• ⑤ 200 channels

• ⑥ Software control

• Working voltage: DC-12V

• Antenna access: TNC/50Ω

• Sensitivity: -98dBm

• Audio output: XLR balance,1/4"unbalance plug


• (3) Transmitter: Bandwidth:50MHz

• Sync frequency: IR

• Transmit Power: 10mW

• Harmonic Radiation:<-75dBm

• Maximum input sound pressure: 100dB

• Microphone head: Dynamic

• Channels: dual channels

• Battery: AA1.5*2

• Battery Life: About 6 hours
