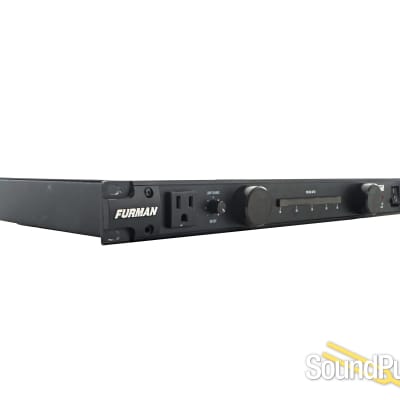

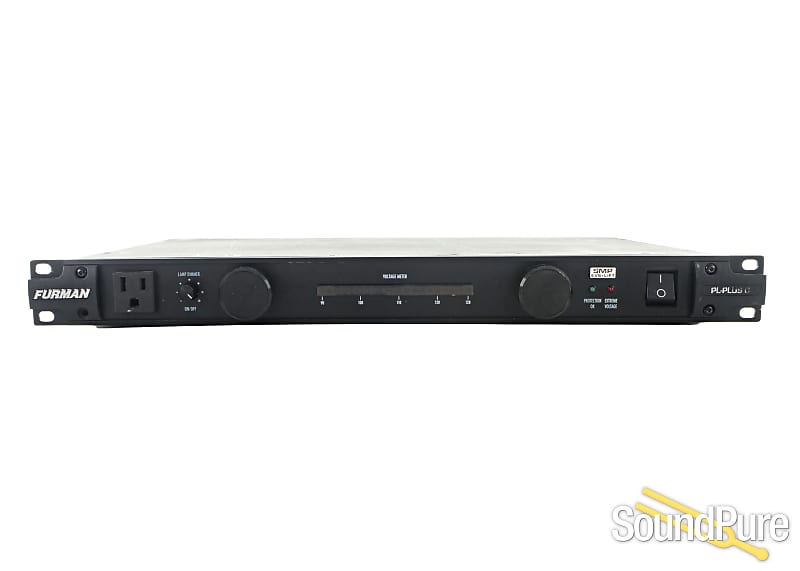

Furman PL-Plus C Power Conditioner - Used

Short Description:

Rack Mountable Power Conditioner with Volt Meter. In Used, Excellent Condition

Manufacturer Description:

The Classic Series from Furman brings together superior protection and outstanding performance in a sturdy, rack-mountable design. The Classic Series features Furman’s revolutionary Series Multi-Stage Protection (SMP), Linear Filtering Technology (LiFT), and Extreme Voltage Shutdown (EVS). Together, these technologies comprise what is, without question, one of the world's most advanced and comprehensive transient voltage surge suppressors.

Features

Surge Protection

Furman's exclusive SMP technology provides the highest level of surge & spike protection available.

Noise Filtration

LiFT offers AC power filtering to ensure clean power for unequaled audio & video clarity.

Voltage Protection

Advanced EVS circuitry detects dangerous voltage irregularities and safely powers down itself and connected equipment in unsafe conditions.

Pull-out Lights

Dual smooth track retractable LED lights illuminate equipment in your rack.

Diagnostic Lights

LED status indicators warn you when voltage is outside of nominal range or when protection has been compromised.

LED Voltmeter

Segmented LED voltmeter monitors and displays incoming line voltage.

Isolated Banks

Isolated outlet banks minimize inter-component interference and noise contamination.

Wall Wart Spacing

Three widely spaced outlets accommodate bulky AC power transformers.

15 AMP Rating

15 Amp rating featuring a high inrush magnetic circuit breaker for added protection.

Nine Total Outlets

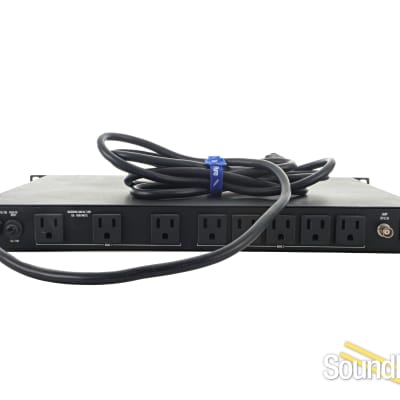

Nine total outlets (8 rear panel outlets and one front panel convenience outlet).

BNC Lamp Connector

Rear panel BNC connector powers any standard gooseneck lamp for rear rack illumination.

Specifications:

Maximum Output Current: 15 amps

Line Cord: Captive 3/14 AWG, 10 ft. black cord with NEMA 15 plug

Pull-out Lights: Two multi-LED, dimmable lamps

BNC Socket w/Switch: Rear rack lamp, 12VAC 500MA maxx (lamp not included)

Operating Voltage: 90 to 139 VAC

Spike Protection Mode: Line to neutral, zero ground leakage

Spike Clamping Voltage: 188 VAC peak @ 3,000 Amps

Response Time: 1 nanosecond

Maximum Surge Current: 6,500 Amps

Noise Attenuation: 10 dB @ 10 kHz, 40 dB @ 100 kHz, 50 dB @ 500 kHz

Dimensions: 19” W x 10.5” D x 1.75” H

Weight: 12 lbs.

Power Consumption: 12 watts

Safety Listing:  cTUVus
