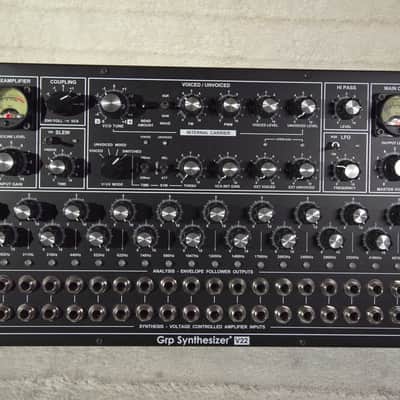

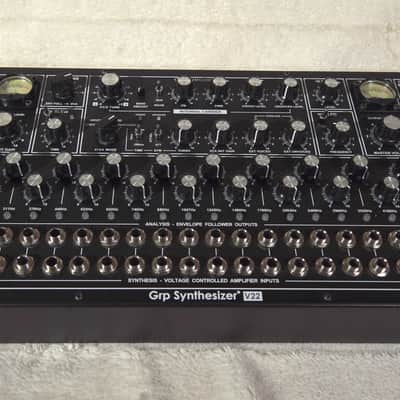

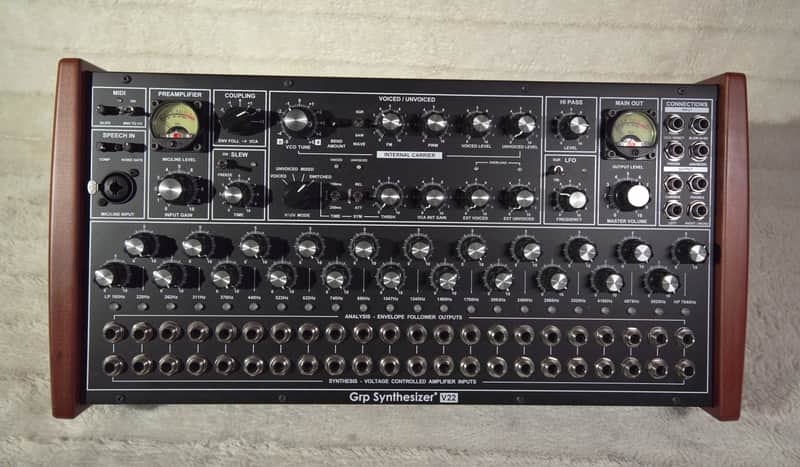

GRP V22 Vocoder 2021 - Black

***(Canada Post is on strike, shipping rates are higher with couriers, for shipping outside of Canada/US please message me for an accurate quote. ***

Product information "Grp Synthesizer - Vocoder V22"

Fully analog 22-band vocoder with twenty bandpass filters, one lowpass filter and one highpass filter, analysis section with compressor and noise gate in a noble, large housing with wooden side panels and 6.3mm sockets, midi integration, generous user interface and VU meters as far as the eye can see.

• 22 band full analog design vocoder
• • LP48dB@185Hz&HP48dB@7040Hz
  • 20 BP Filters 48 dB BP @ 220, 262, 311, 370, 440, 523, 622, 740, 880, 1047, 1245, 1480, 1760, 2093, 2489, 2960, 3520, 4186, 4978, 5920 Hz

• Analysis section full analog with 20 BP, 1 LP, and 1 HP analysis filters
• • Speech In/Analysis with Compressor & Noise gate freely adjustable
  • Mic/Line combo XLR/TRS/TS input – no phantom power
  • Mic/Line Level Input Gain with dedicated analog Vu-meter

• Synthesis section full analog with 20 BP, 1 LP & 1 HP analysis filters
• • Internal Carrier Oscillator with selectable Saw/Pulse Wave and dedicated VCO Level
  • Wide range VCO TUNE pot, with CV and MIDI external control capabilities! Freely adjustable
  • MIDI & CV Bend Amount over Internal Carrier VCO
  • FM on Saw/PW on Pulse wave freely adjustable
  • Internal Carrier Noise Generator with dedicated Noise Level
  • Voiced/Unvoiced Detector, for automatic switching between internal VCO and Noise
  • Voiced and Unvoiced activities LED
  • V/UV Mode OFF, Mixed V/UV, SWITCHED
  • Threshold V/UV freely adjustable
  • Time response for V/UV switching selectable Slow/Medium/Fast
  • Time response selectable for Symmetry Attack/Release, only Attack, only Release! Slew Rate fully adjustable from very fast to full freeze
  • Dedicated Freeze Slew switch, with external Gate and MIDI control
  • External Voiced and External Unvoiced signals with dedicated analog connections and level controls
• Analysis/Synthesis controls
• • Each analysis band has dedicated envelope follower output, VCA control input & VCA output level for band mixing
• Analysis/Synthesis interaction
• • Internal normalization 1-by-1 between analysis and synthesis bands
  • Front panel patching 1/4” for free re-configuration analysis/synthesis
  • Coupling control for different internal re-configuration with selectable offset
  • Env Foll -> VCA in 1-by-1 or +1/+2/+3/-1/-2/-3 offset from Env Foll to VCA CV In

• Dedicated high-pass filter on the main output
• Main output level control with dedicated Vu-Meter
• MIDI interface
• • MIDI In/Thru on cabinet back panel
  • Dedicated hardware MIDI SubModule for 5U modular mounting
  • MIDI Note On/Off with MIDI Pitch Bend on Carrier Internal VCO Pitch or MIDI Mod Wheel for Slew Limiter Time control
  • MIDI Sustain On/Off for Slew Limiter Freeze On/Off

• Front panel connections
• • Audio Input Connections: Combo XLR/TRS Mic/Line Inputs, external Voiced signal, external
  • Unvoiced signal
  • Control Input Connections: VCO 1V/Oct, Freeze Momentary Switch, Slew Time 0/+5V control ino Audio Output Connections: Internal VCO Output, Internal Preamp Output, Phones Output, Left
  • Output (odd numbered bands output), Right/Mono Output (even numbered bands output)o Control Output Connections: V/UV Control Output

• Physical
• • Same hardware standard of Grp A2 Synthesizer & R-24 Step Sequencer
  • Fully independent HW cabinet with wooden panels
  • Optional “tolexed box” cabinet with upper handle and metal angles for real vintage loop.
  • Tolexed box has internal power for easiness of transport External power unit
  • 8-unit width in 5U modular format
  • Can be installed in 5U modular cabinets with DotCom and Moon Modular powering standards
