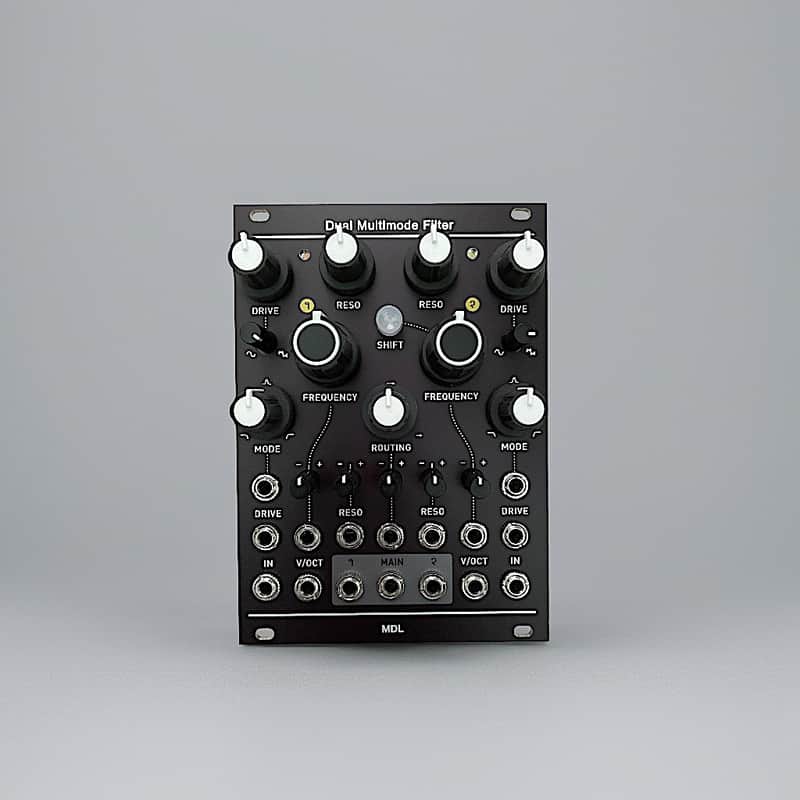

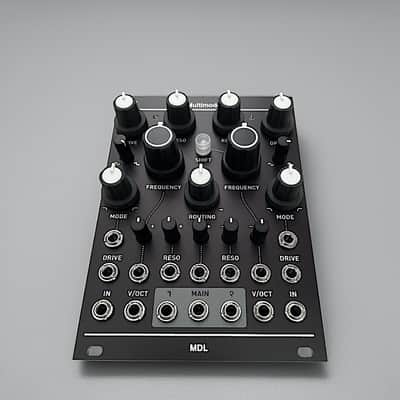

MDL Music Dual Multimode Filter - Black Anodized Panel (Mutable Instruments Blades 2024)

a Mutable Instruments Blades clone.

The module is 1to1 identical to the original. Built with the greatest care. Original components are a matter of course!

Green circuit board professionally soldered in the reflow process and of course calibrated and tested.

Panel: 2 mm Black Anodized Aluminium

This Module is a Brandnew Design from 2024.

Incl. ribbon cable and screws.

1 Year Warranty!

The manual can be found on github.

A dual multimode filter...

A CV-controlled overdrive circuit capable of wavefolding.

A clean 12dB/octave multimode filter self-oscillating cleanly across the audio range.

Times two. And this could have stopped here.

For all the in-betweens...

What sets Blades apart is that options commonly presented as multiple choices (low-pass or high-pass? serial or parallel?) are presented here as a continuum, ready to be explored at the twist of a knob or with a CV.

The filter response is continuously variable between low-pass, band-pass and high-pass, and delivers intermediate shelving responses, for more nuanced spectral coloring.

A dual crossfader circuit allows the routing between the two filters to smoothly vary from single to parallel to series.

And more...

Originally thought as a complex filter, Blades turns out to be capable of much more:

• A dual distortion with spectral color control?
• An oscillator mixer with crossfading, wavefolding, and enough filtering to clean up the mess?
• A voice, using one filter as an oscillator, then distorting, folding it and filtering it with the second filter?
• A complex oscillator capable of FM, PM and AM?
