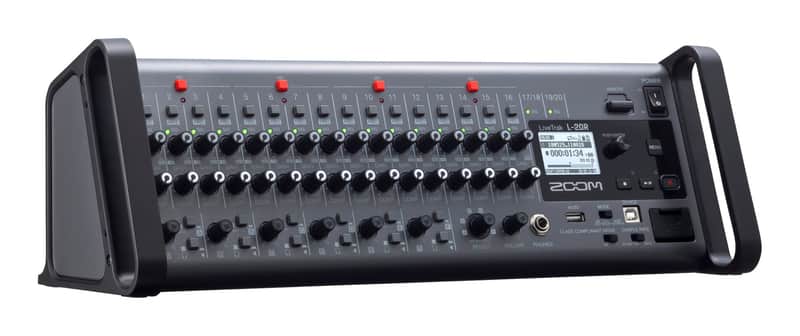

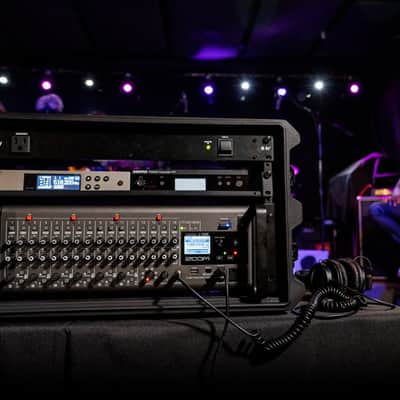

Enter the era of live mixing and recording where everyone is the master of their mix with Zoom's LiveTrak™ L-20R rack-mountable digital mixer. This portable mixer allows musicians to do it all - control their live mix right from the stage. With wireless control, 20 discrete channels, 22 tracks of recording and six custom monitor mixes, the L-20R offers a complete solution for any venue. Mix remotely, record directly.

The LiveTrak L-20R is a robust 22-in/4-out USB audio interface that routes inputs to any DAW, streaming software, or iOS device*—even while recording to an SD card. Featuring 16 mono mic/line inputs and two stereo inputs, the L-20R can handle the most demanding stages. The L20R offers two EFX busses and each channel includes a 3-band EQ, pan controls and compressor. During your live performance, record 20 channels plus a stereo mix directly to an SD card, then transfer your tracks to your DAW for your final edit.

With six independent monitor outputs, the LiveTrak L-20R enables musicians to wirelessly create their own custom mix. A dedicated output enables the FOH engineer to easily switch between monitoring the main and sub mixes. With iPads, the FOH engineer and 6 musicians can control their own mix, including fader levels, EQ settings, channel effects, and more from anywhere in the venue.

NOTE:*Apple Lightning to USB Camera Adapter required.

• LiveTrak L-20R
• AD-19 AC Adapter
• BTA-1 Bluetooth Adapter
• Rack Ears
• Quick Guide

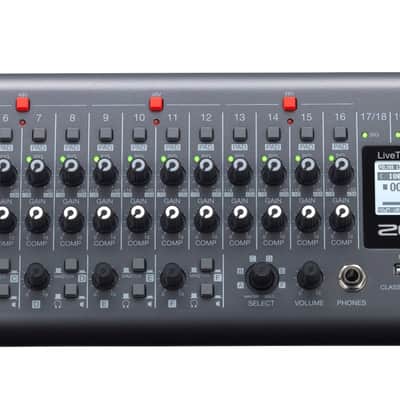

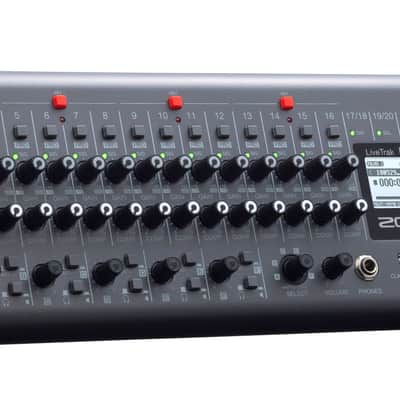

• 20 discrete channels (16 mono plus 2 stereo) with XLR or ¼-inch connectivity
• 22-track simultaneous recording, 20-track playback
• 22-in/4-out USB audio interface connectivity
• Records up to 24bit/96kHz audio to SD card
• Built-in compression control (Channels 1-16)
• Main outputs plus 6 customizable monitor outputs
• Dedicated headphone output for sound engineer

• SKU: ZL20R
• Inputs:

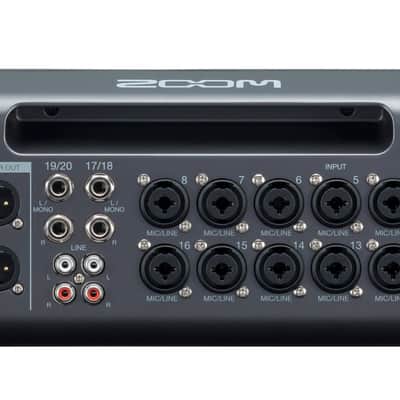

  • Mono (MIC/LINE): 16
  • Stereo (LINE): 2
• Output:
  • MASTER OUT: 1
  • MONITOR OUT: 6
  • PHONES: 1
• INPUTS 1-16
• Mono (MIC/LINE):
  • Type: XLR/TRS combo jacks (XLR: 2 HOT, TRS: TIP HOT)
• Input gain:
  • PAD OFF: +16 – +60dB
  • PAD ON: - 10 – +34 dB
  • Hi-Z ON: +6 – +50 dB
• Input impedance:
  • XLR: 3 k Ω
  • TRS: 10 k Ω /1 M Ω (when Hi-Z ON)
• Maximum input level:
  • PAD OFF: 0 dBu (at 0 dBFS)
  • PAD ON: +26 dBu (at 0 dBFS)
• Phantom power: +48 V
• Stereo (LINE):
  • Type: TS phone/RCA pin (unbalanced) jacks
  • Maximum input level: +10 dBu
• Outputs:
• MASTER OUT:
  • Type: XLR jacks (balanced)
  • Maximum output level :+14.5 dBu
  • Output impedance: 100 Ω
• MONITOR OUT A–F (with balanced output) connected to monitor speakers:
• Type: TRS phone jacks (balanced)
• Maximum output level: +14.5 dBu
• Output impedance: 100 Ω
• MONITOR OUT A– F (with unbalanced output) connected to headphones:
  • Type: Standard stereo phone jacks
  • Maximum output level: 42 mW + 42 mW at 60 Ω
  • Output impedance: 100 Ω
• PHONES:
  • Type: Standard stereo phone jacks
  • Maximum output level: 42 mW + 42 mW at 60 Ω
  • Output impedance: 100 Ω
• Buses:
  • MASTER: 1
  • MONITOR: 6
  • SEND EFX: 2
• Channel Strip:
  • LOW CUT: 40–600 Hz, 12dB/OCT
• EQ:
  • HIGH: 10 kHz, ± 15 dB, shelving
  • MID: 100 Hz – 8 kHz, ± 15 dB, peaking
  • LOW: 100 Hz, ± 15 dB, shelving
• Level Meters:
  • Level segments: 12
• Send Effects (20 types):
• EFX 1:
  • Hall 1 (Reverb)
  • Hall 2 (Reverb)
  • Room 1 (Reverb)
  • Plate (Reverb)
  • Church (Reverb)
  • DrumAmb (Reverb)
  • GateRev (Reverb)
  • Vocal 1 (Delay + Hall Reverb)
  • Vocal 2 (Delay + Mono Reverb)
  • Vocal 3 (Delay + Plate Reverb)
• EFX 2:
  • Hall 3 (Reverb)
  • Room 2 (Reverb)
  • Spring (Reverb)
  • Delay (Delay)
  • Analog (Delay)
  • P-P Dly (Delay)
  • Vocal 4 (Delay + Room Reverb)
  • Chorus 1 (Stereo Chorus)
  • Chorus 2 (Mono Chorus)
  • Cho+Dly (Chorus + Delay)
• Recorder:
  • Maximum simultaneous recording tracks: 22 at 44.1/48/96 kHz
  • Maximum simultaneous playback tracks: 20
  • Recording format: WAV 44.1/48/96 kHz, 16/24-bit, mono/stereo
• Recording media:
  • 4 GB – 32 GB SDHC cards (Class 10 or higher)
  • 64 GB – 512 GB SDXC cards (Class 10 or higher)
• Audio Interface:
• 44.1/48 kHz:
  • Recording: 22 channels
  • Playback: 4 channels
  • Bit depth: 24-bit
  • Interface: USB 2.0
• System Requirements for Audio Interface Mode:
• Windows:
  • OS: Windows® 7 SP1 or later / 8.1 / 10 (32bit/64bit)
  • CPU: Intel® Core i3 or faster*
  • USB: USB 3.0/USB 2.0**
• NOTES:
• * Operation is not guaranteed with CPUs from Atom, Celeron or Pentium series or CPUs made by AMD.
• ** Only USB host controllers with Intel Chipsets are supported. Operation is not guaranteed when used with USB hubs or expansion cards.
• Mac:
  • OS: Mac® OS X 10.11 / 10.12 / 10.13 / 10.14
  • CPU: Intel® Core i3 or faster
  • USB: USB 3.0/USB 2.0*
• NOTE: * Operation is not guaranteed when used with USB hubs or expansion cards.
• iPhone/iPad:
  • OS: iOS 9 / 10 / 11
• NOTE: * Apple Lightning-to-USB Camera Adapter required.
• USB HOST:
  • Class: USB 2.0 High Speed
• Other:
  • Sampling frequency: 44.1/48/96 kHz
• Frequency characteristics:
  • 44.1 kHz: -1.0 dB, 20 Hz – 20 kHz
  • 96 kHz: -3.0 dB, 20 Hz – 40 kHz
• Equivalent input noise:
  • Actual measurements: -128dB EIN (IHF-A) at +60dB/150Ω input
• Display: LCD with backlight (128×64 resolution)
• Power: AD-19 AC adapter (DC12V 2A)
• Power consumption: 24 W maximum
• External dimensions (W x D x H): 17.5 x 15.3 x 3.3 in (445 mm × 388.4 mm × 82.6 mm)
• Weight (main unit only): 8.2 lbs (3.71 kg)
