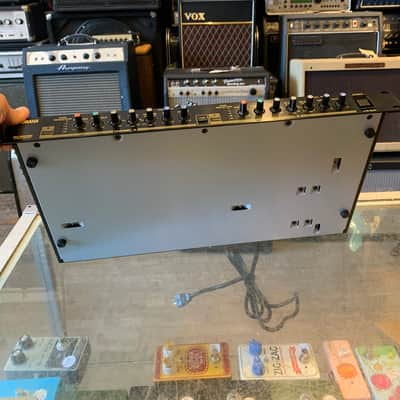

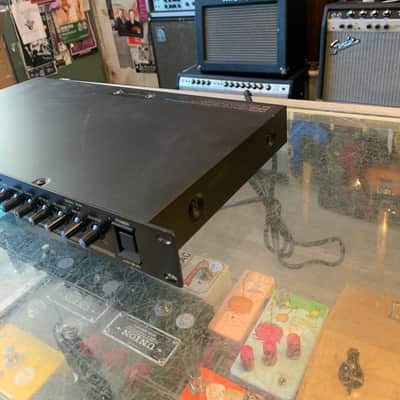

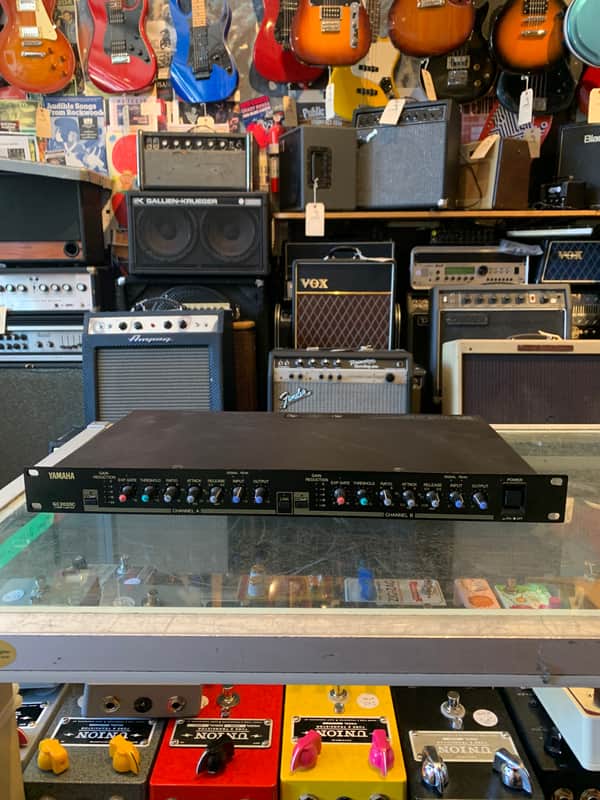

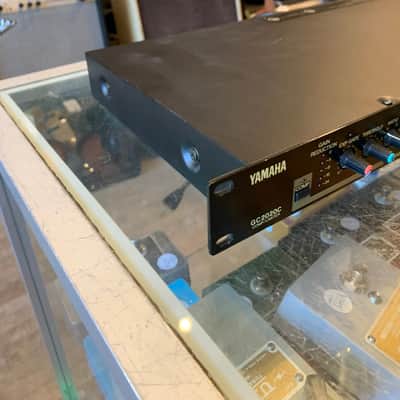

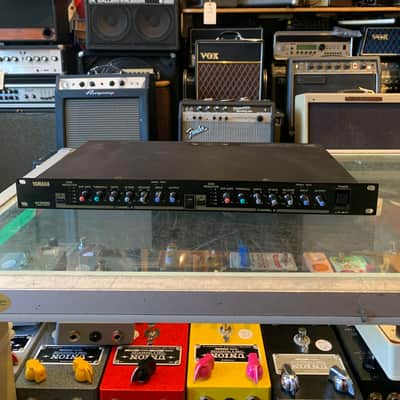

Yamaha GC2020C

Very affordable squeeze, please! Yamaha GC2020C Compressor/Limiter in good shape.

• Type: Rack-mounted Compressor/Limiter
• Channels: Dual Channel (stereo)
• Controls per Channel:
• • Threshold: Adjustable from -20 dB to +20 dB
  • Ratio: Adjustable from 1:1 to ∞:1 (limiting)
  • Attack Time: Adjustable from 0.2 ms to 50 ms
  • Release Time: Adjustable from 50 ms to 1 second
  • Output Level: Adjustable from -20 dB to +20 dB
  • Compression Type: Hard/Soft Knee switchable
  • Metering: LED meters for input/output levels and gain reduction
• Inputs:
• • Balanced XLR
  • Unbalanced 1/4″ TRS

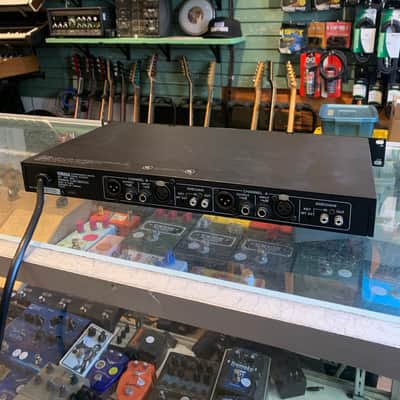

• Outputs:
• • Balanced XLR
  • Unbalanced 1/4″ TRS
• Frequency Response: 20 Hz to 20 kHz, ±1 dB
• Dynamic Range: >110 dB
• Total Harmonic Distortion (THD): <0.05%
• Power Supply: Internal power supply with standard IEC connector
• Dimensions: 1U rack mountable

FEATURES:

• Dual-Channel Operation: Allows for independent or linked stereo operation.
• Variable Controls: Comprehensive control over threshold, ratio, attack, release, and output level.
• Hard/Soft Knee: Switchable compression characteristic for either smooth or aggressive dynamic control.
• High-Quality Audio: Designed to provide transparent compression with minimal coloration of the sound.
• Robust Construction: Built to withstand the rigors of studio and live sound environments.

APPLICATIONS:

• Studio Recording: Ideal for controlling dynamics on individual tracks, mix buses, or mastering.
• Live Sound: Useful for managing levels and preventing distortion in live sound reinforcement.
• Broadcast: Ensures consistent audio levels and prevents over-modulation in broadcasting applications.

Please message us with your Zip/Postal Code for shipping quotes.

All items are sold as photographed, please view all photos carefully.
If you are International please message us to discuss shipping.
Paul's Boutique has been buying, selling and consigning used and vintage music gear in Toronto's Kensington Market for twenty years- stop by if you're in town and have a play!
