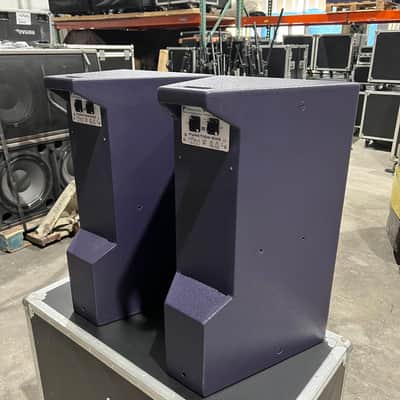

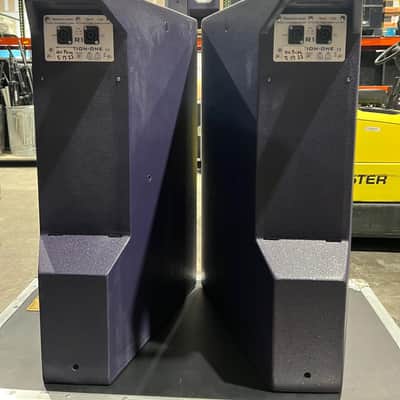

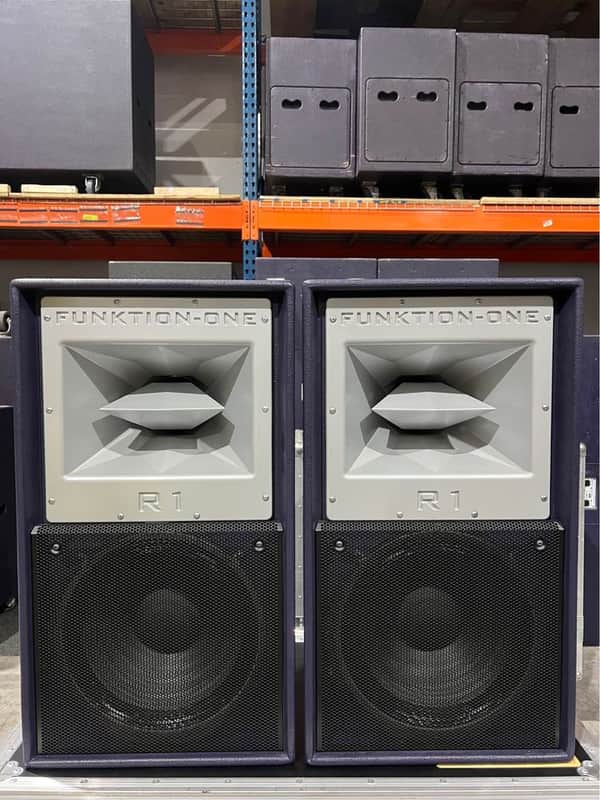

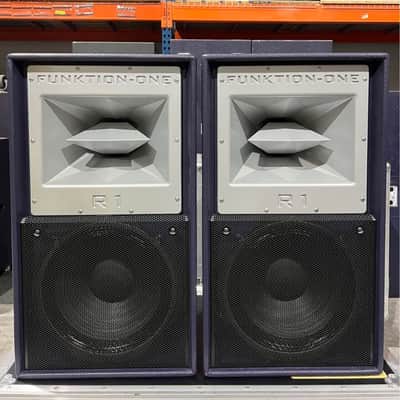

2 x Pair of Funktion One Resolution 1 loudspeakers (price listed is per pair).
The units are in excellent condition. They sound and operate perfectly. All serial numbered.

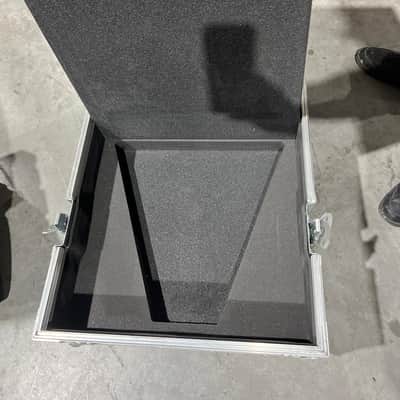

Can be sold with optional touring flight case (Fits 2 units) - *currently not included in sale price
Please reach out for an accurate shipping rate. Items can be collected in person (no shipping fees).
Item Description:
The Resolution 1 is a radical, 2-way loudspeaker enclosure, resulting from Tony Andrews’ 40 years pioneering research and development of high efficiency cone mid-range. A unique Funktion-One 5” loudspeaker eliminates the need for compression drivers with their associated harshness and distortion. This device, when used in conjunction with the dedicated Axhead-loaded waveguide, smoothly reproduces both mid-range and high frequencies with exceptional coherency and detail. Further, this 5" device seamlessly connects with the 12" ported low frequency driver at 520Hz. This is in contrast to conventional 2-way systems where compromised compression drivers are stretched to (almost) meet equally stretched and indistinct 12" or 15" low frequency drivers at between 1 and 2kHz. The accuracy, projection and imaging detail of the R1 make it ideally suited to high intelligibility applications including theatrical use.
The enclosure shape has a rear recess that can be fitted with the optional PX1 passive crossover module. The waveguide can be rotated for use in either vertical or horizontal formats.
(Driver | Operating Band | Sensitivity (at 1m) | Power (AES)| Nominal Impedance)
12" 25 - 520Hz 102dB at 2.8V 350W 8Ω
5" 520 - 15kHz 112dB at 3.5V 75W 12Ω
Frequency Response ± 3dB: 65Hz - 15kHz
Weight (without wheelboard): 19kg (42lbs)
Nominal Dispersion: 40° Horizontal x 25° Vertical
Connectors: 2 x Neutrik NL4
This item is sold As-Described
This item is sold As-Described and cannot be returned unless it arrives in a condition different from how it was described or photographed. Items must be returned in original, as-shipped condition with all original packaging.Learn More.
