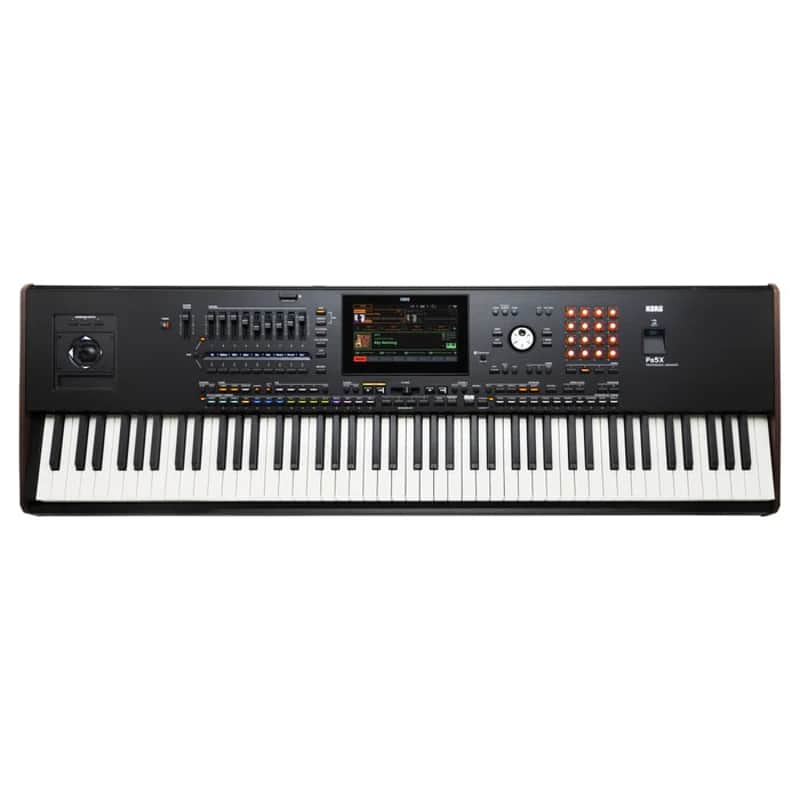

Create and Perform - The Korg Pa5X88 88-Key Professional Arranger Keyboard

Pa5X is the new flagship in the KORG Professional Arranger lineup, redefining an arranger keyboard. Completely redesigned with a state-of-the-art sound engine and a streamlined color-driven user interface, Pa5X produces a stunningly rich and unique sonic experience to inspires you! Pa5X comes packed with thousands of inspiring Sounds and hundreds of fresh Styles, all instantly accessible through an inviting workflow. A completely new front panel featuring an assignable Pad Matrix and Mixer section, multicolored LED buttons, and a huge tilt-able touchscreen puts you in control of your music making experience at all times. Pa5X excels both as a live performance instrument and as a powerful creative tool in the studio, allowing you to find your ideal sound no matter where your music takes you.

• Modern and Streamlined User Interface
• Stunningly rich sound-engine: EDS-XP
• Real-time controllers
• Advanced chord recognition, and a library full of chord sequences
• Smooth transition between Sounds, Styles and Songs
• Two cross-fading Players able to mix everything: Styles to Midi-files, or Midi-files to MP3-files, or Styles to Styles (unique to the Pa5X)
• Each player displays lyrics and score
• Create your own Styles and Songs.
• SongBook, a music library always with you
• A complete sound library
• Onboard mixer with insert, master, final and mastering effects
• Dedicated Microphone and Guitar inputs with dedicated effects for each
• MIDI, USB, HDMI, Audio In and Out, Pedal connectors

SPECIFICATIONS

• Case: Aluminum case with wooden side panels
• Operating System: Upgradable Operating System
• Polyphony: 160 Voices, 160 Oscillators
• Guitar Processor: Guitar rack (4 effect-slots) with stompbox and amp simulation
• Sounds and Drum Kits
• • Factory: More than 2,200 Factory Sounds
  • Five multilayer Stereo Acoustic Pianos with Damper/Body Resonance, GM/XG Sound Sets, more than 130 Drum Kits including Ambient Drums and Round Robin-based Drum Kits
  • User Area: 768 Sounds, 384 Drum Kits
  • Digital Drawbars: 9 Footages, Percussion, Key On/Off, Leakage, Vibrato/Chorus, Rotary Speaker with Amp Simulator
  • Natural Ambience Drum Sounds, Round Robin features
  • Defined Nuance Control (DNC) Technology
  • Quick and Full Sound Editing, Drum Family and Full Drum Kit Editing
• Pads
• • Factory: More than 400 Pads
  • Four Assignable Pads + Stop Buttons
  • Pad Record function
• Scale Controls: On-screen Quarter Tone and Arabic Scale, memorized in the Keyboard Sets; Presets assignable to any button or footswitch
• Control Inputs: Damper Pedal; supports half-pedaling with the optional KORG DS-1H pedal 2 Assignable Pedal/Footswitch
• Audio Inputs
• • Mic: Mono with Gain control and Phantom Power (Combo XLR, balanced)
  • Guitar: Mono with Gain control (1/4-inch jack, unbalanced)
  • Line 1: Left/Right (1/4-inch jacks, balanced)
  • Line 2: Stereo (1/8-inch mini-jack, unbalanced)
• Audio Outputs
• • Line: Main Left/Right, Separate Outs 1/2/3/4 (1/4-inch jacks, balanced)
  • Headphones (1/4-inch jack)
• Video Output: HDMI connector
• MIDI
• • IN, OUT, THRU standard MIDI connectors
  • USB to MIDI, through the USB Device port
  • 16 User-definable MIDI Presets
• USB:
• • Type A (Host 3.0, for storage devices and controllers): 1 front, 2 rear
  • Type B (Device 2.0, for personal computers and tablets): 1 rear
• Display: 8-inch Wide capacitive color TouchView TFT display, 800 x 480 resolution
• Clock: Internal System Clock
• Power Consumption: 100-240 Volts, 50/60 Hz < 0.2 Watt in standby / 20 Watt normal / 45 Watt with PaAS installed
• Dimensions (without music stand, display fully lowered): 1,262.0 x 396.4 x 146.0 mm (49.68 x 15.60 x 5.74 inches)
• Weight: 20.1 kg (44.31 lbs)
