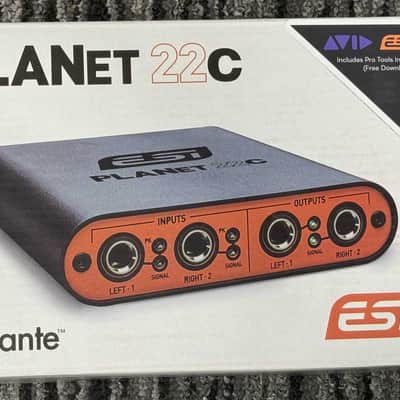

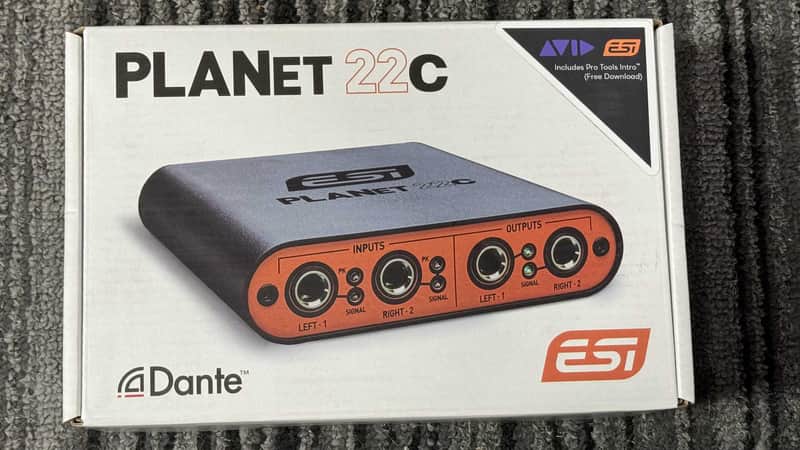

ESI Planet 22c - Dante Interface - Brand New

This listing is for a brand-new device in a factory sealed box (Reverb doesn't allow it to be marked as "brand new" as I'm not a dealer). Shipments will use Reverb's "safe shipping" option which will require an adult signature upon delivery.

This device is a Dante-compatible Ethernet-based ADC/DAC. Please note that this is NOT a traditional audio interface for a computer, e.g. it does not have a USB port. You typically use a device like this to interface with something like a DANTE-compatible mixer. Though you can use this to interface to a computer, you'll need additional software (not included).

Details from the manufacturer:

planet 22c is an extremely compact interface box that provides 2 analog input and 2 analog output channels at pristine reference audio quality in a Dante IP audio network.

The lightweight and sturdy I/O solution is equipped with ultra high quality 24-bit / 96kHz analog-to-digital and digital-to-analog converters. Supporting balanced line audio signals with home (-10dBV) and professional (+4dBu) signal levels, it works as an ideal interface wherever high quality audio is needed within the Dante network.

Features

• Dante network audio interface with 2 analog inputs and 2 analog outputs
• reference level audio quality for professional applications
• supports -10dBV (consumer) and +4dBu (professional) audio levels for input and output
• balanced analog inputs (TRS, 6.3mm, 1/4")
• BurrBrown PCM1804DB 24-bit stereo ADC with 110dB dynamic range (A-weighted)
• maximum input level: +6dBV (-10dBV setting), +20dBu (+4dBu setting)
• input frequency response: 20Hz to 20kHz +/- 0.1dB
• balanced analog outputs (TRS, 6.3mm, 1/4")
• BurrBrown PCM1796DB 24-bit stereo DAC with 120dB dynamic range (A-weighted)
• maximum output level: +6dBV (-10dBV setting), +20dBu (+4dBu setting)
• output frequency response: 20Hz to 20kHz +/- 0.05dB
• supports 44.1, 48, 88.2 and 96 kHz at 24-bit
• latency based on network configuration, typically around 1ms
• power supply via network cable (PoE / Power over Ethernet)
• optional 12V DC power supply included
• dimensions: around 10.5cm x 11cm x 2.5cm
• weight: around 236g
