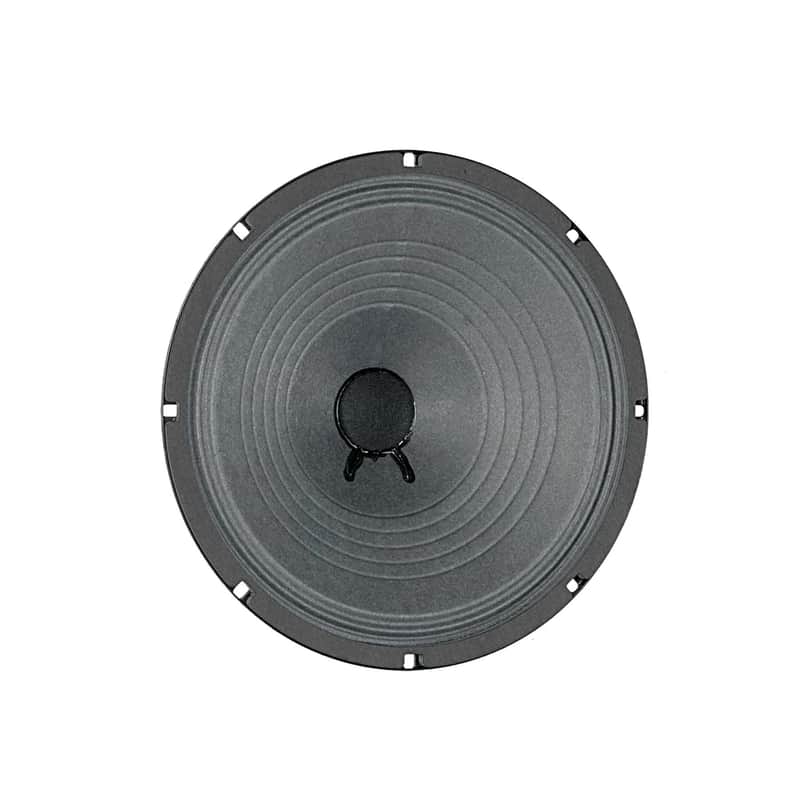

Eminence Legend Series 1028K 10" 35-Watt Replacement Speaker - 8 Ohm 2010s - Black
This seller has not set a shipping cost for Brazil. Please contact them to ask about shipping.
Only 1 left
Grab it before it's gone
Our users rate Reverb
The Eminence Legend 1028K guitar speaker is a classic stage fixture. Vintage American tone with moderate, but tight, percussive lows and extended highs. Hard-working under the bright lights.
Series Legends
Model Legend 1028K
Application 10" Open or Closed Back
Configuration 1, 2, or 4 X 10"
Low End Response Subdued
Low End Shape Tight
Mid-Range Response Moderate
Mid-Range Shape Warm
High-End Response Aggressive
Volume/Power Loud
Overall Coloration* Vintage American tone with moderate, but tight, percussive lows and extended highs.
Break-up Modes Fast
Power Range Up to 35 watts
Instrument* Lead/Rhythm Guitar, Harmonica
Genre of Music* Country, Blues, Rock
SPECIFICATION
Nominal Basket Diameter 10", 254 mm
Nominal Impedance* 8 Ω
Power Rating*
Program Power N/A
Watts 35 W
Resonance 95 Hz
Usable Frequency Range 100 Hz - 5 kHz
Sensitivity* 97.4 dB
Magnet Weight 6 oz.
Gap Height 0.25", 6.4 mm
Voice Coil Diameter 1", 25 mm
THIELE & SMALL PARAMETERS
Resonant Frequency (fs) 95 Hz
DC Resistance (Re) 5.8 Ω
Coil Inductance (Le) 0.51m H
Mechanical Q (Qms) 17.96
Electromagnetic Q (Qes) 1.61
Total Q (Qts) 1.47
Compliance Equivalent Volume (Vas) 31.5 liters / 1.11 cu.ft.
Peak Diaphragm Displacement Volume (Vd) 72.4 cc
Mechanical Compliance of Suspension (Cms) 0.19 mm/N
BL Product (BL) 5.7 T-M
Diaphragm Mass Inc. Airload (MMs) 15 grams
Efficiency Bandwidth Product (EBP) 59
Maximum Linear Excursion (Xmax) 2.1 mm
Surface Area of Cone (Sd) 344.9 cm2
Maximum Mechanical Limit (Xlim) N/A
MOUNTING INFORMATION
Recommended Enclosure Volume
Sealed Acceptable
Vented Acceptable
Driver Volume Displaced 0.027 cu.ft. / 0.77 liters
Overall Diameter 10.11", 256.8 mm
Baffle Hole Diameter 9.13", 231.9 mm
Front Sealing Gasket Yes
Rear Sealing Gasket N/A
Mounting Holes Diameter 0.22", 5.6mm
Mounting Holes B.C.D. 9.6", 243.8mm
Depth 4.8", 121.9 mm
Net Weight 2.9 lbs, 1.32 kg
Shipping Weight 4 lbs, 1.81 kgs
MATERIALS OF CONSTRUCTION
Coil Construction Copper voice coil
Coil Former Polyimide former
Magnet Composition Alnico magnet
Core Details Non-vented core
Basket Materials Pressed steel basket
Cone Composition Paper cone
Cone Edge Composition Paper cone edge
Dust Cap Composition Solid composition felt dust cap
