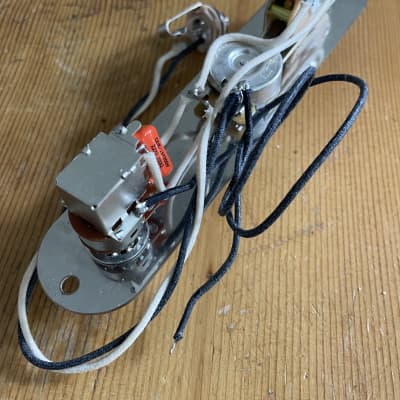

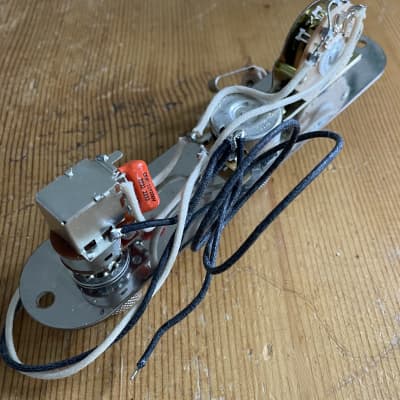

Fender Telecaster Wiring Harness Upgrade 250k CTS Pots .022 Orange Drop Cap Oak Grigsby Switch PUSH/PULL Series/Parallel

What is it?

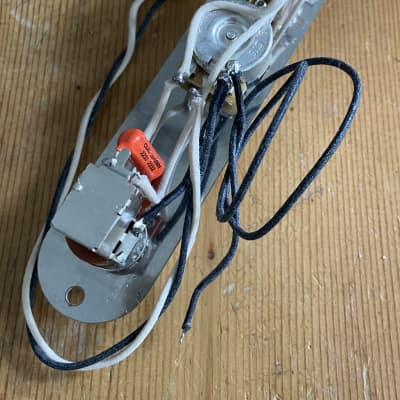

-Pre-wired Telecaster wiring harness upgrade for American or Mexican Fender Telecasters (two pickup, v/t).

-Features a Push/Pull potentiometer on the tone for series/parallel. When pulled up, it puts the neck and bridge pickups in series for a boost in output and a fatter humbucker tone.

-NOTE: The neck cover will need to be separately grounded for the series/parallel switch. Snip the little jumper wire that connects the neck cover to the pickups main ground and separately ground the cover to the long black wire, that comes pre-soldered to the back of the volume.

-Hand wired with the highest quality parts and cleanest solder connections from a professional guitar tech. This wiring harness will give you the clearest signal possible with even and balanced volume/tone roll off.

Includes:

-CTS 250k solid shaft potentiometer Master volume

-Bourns 250k push/pull master tone-series/parallel

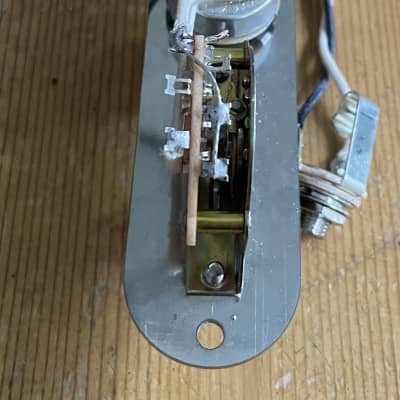

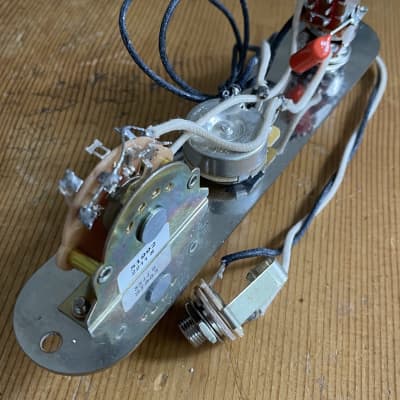

-Oak Grigsby 3 way Switch

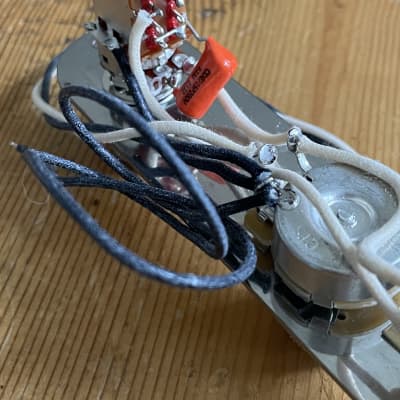

-.022mfd Orange Drop capacitor

-Switchcraft 1/4in jack

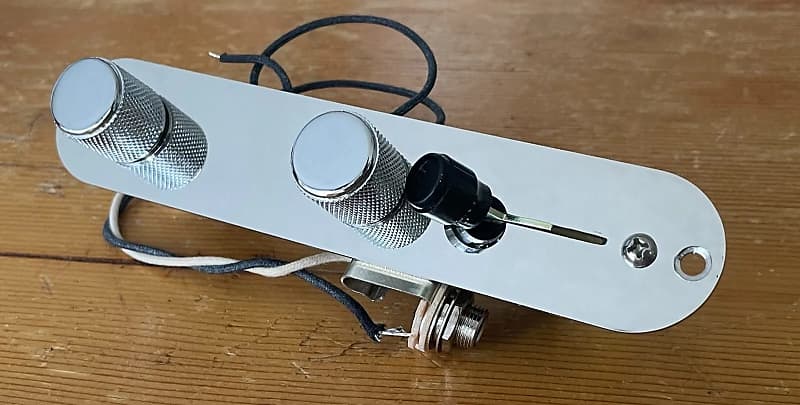

-Stainless Steel control plate

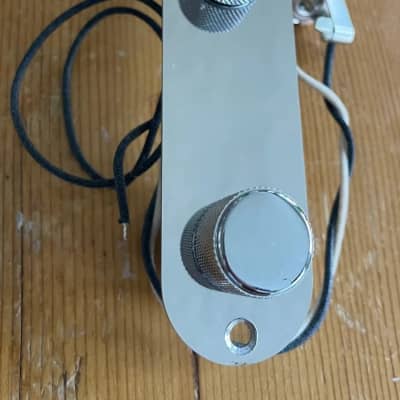

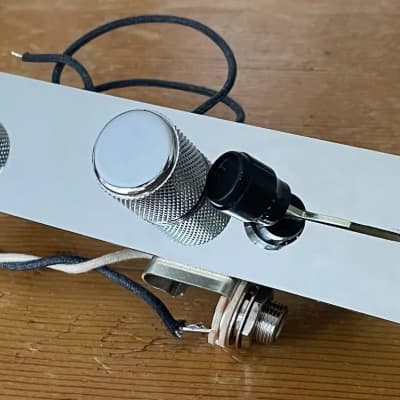

-Flat top telecaster barrel knobs

-Vintage style pull back cloth wire (7 strand 22 gauge wire for the clearest signal path)

-Wiring diagram included

About Smokey B's

I am a guitar electronic specialist and tone enthusiast located in Oak Grove, OR. My custom wiring has been installed in over 12,000 guitars world wide. I was a lead tech and artist rep for many years with Seymour Duncan. I have helped guitar and bass players from bands like The Foo Fighters, Guns N' Roses, Slash, Ozzy, Joe Walsh, Weezer, 311 and many more in search for their perfect tone. More than anything else, I am a guitar exploring sound surfer. Always chasing the new. I feel honored to be able to do what I love and share it with so many. My main goal is to help you fall in love with your guitar again. I offer pre-wired set ups for most any guitar. Custom orders are welcome. Visit my Reverb store for my pre-wired harnesses!
