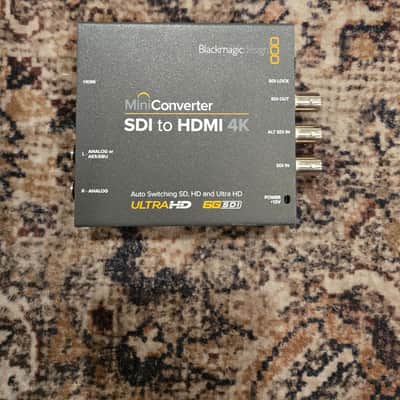

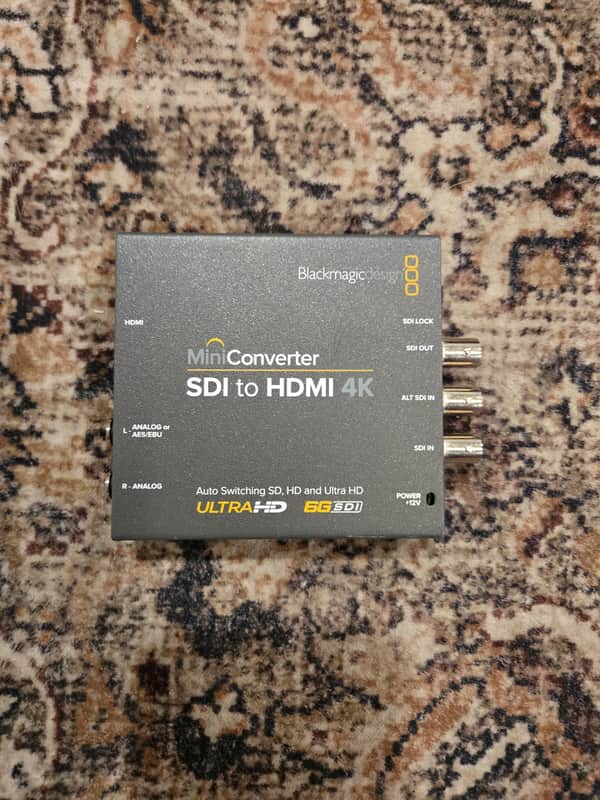

Blackmagic Design Mini Converter SDI to HDMI 4K
This listing has ended
See similar gear from other Reverb sellers
Our users rate Reverb
The Mini Converter SDI to Analog 4K from Blackmagic Design allows you to convert Single Link SD/HD/3G/6G-SDI to analog SD/HD component, composite, or S-Video. The down-converter lets you to connect professional SDI equipment with output resolutions up to Ultra HD 4K (3840 x 2160) and DCI 4K (4096 x 2160) using SD and HD analog video monitors and other equipment. With a compact form factor and easy-to-use controls, the Mini Converter is ideal for a variety of broadcast, post production, and professional AV applications.
Using 6G-SDI technology, the Mini Converter supports resolutions up to UHD 4K at up to 30 fps and DCI 4K at 24 fps. The Mini Converter also supports Single Link SD, HD, and 3G-SDI signals and automatically detects the input video format and instantly changes. A redundant SDI input is provided as an optional back up, and an SDI loop-through output is available for sending the SDI signal to an additional device. Up to 16 channels of de-embedded SDI input audio can be outputted as AES/EBU digital audio or balanced analog audio output via 1/4" output jacks.
The Mini Converter's settings are controlled using the built-in DIP switches or via USB using the included software for Max OS X or Windows computers. The USB port also enables the firmware to be updated. For powering the device, a 12V power supply is included with international socket adapters.
- Features:
- Single Link SD/HD/3G/6G-SDI Input
- Component, Composite, & S-Video Output
- SD, HD, UHD 4K & DCI 4K Input Signals
- Automatic Input Signal Detection
- Redundant SDI Input & Looped SDI Output
- Analog & AES-EBU Digital Audio Outputs
- 24-bit, 48 kHz Audio

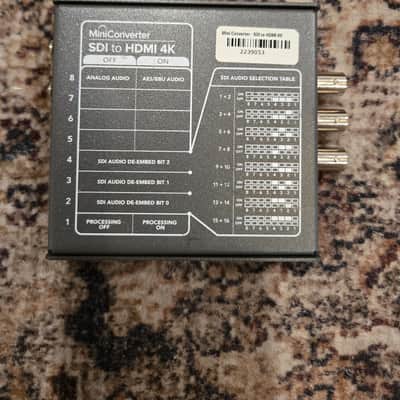

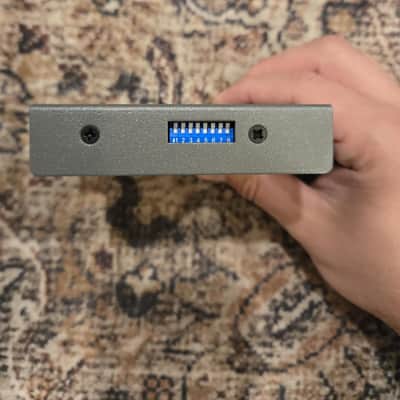

- Control via DIP Switches or Software
- USB 2.0 Port for Firmware Updates
- 12V Universal Power Supply Included
- 4:2:2 Sampling and color precision
- 24-bit, 48 kHz audio sampling
- Compliant with SMPTE 292M, SMPTE 259M, SMPTE 296M, ITU-R BT.656, and ITU-R BT.601 standards
Tested and works - comes with power supply.
This item is sold As-Described
This item is sold As-Described and cannot be returned unless it arrives in a condition different from how it was described or photographed. Items must be returned in original, as-shipped condition with all original packaging.Learn More.
| Listed | 2 years ago |
|---|---|
| Condition | Excellent (Used) Excellent items are almost entirely free from blemishes and other visual defects and have been played or used with the utmost care.Learn more |
| Brand | |
| Model |
|
| Categories | |
| Year |
|
| Made In |
|
