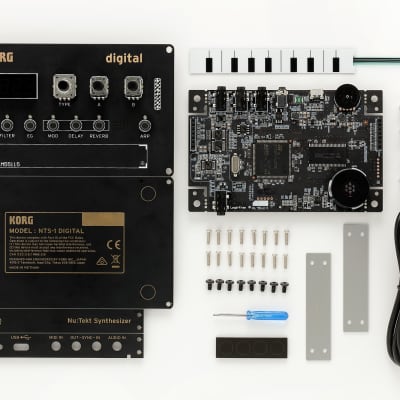

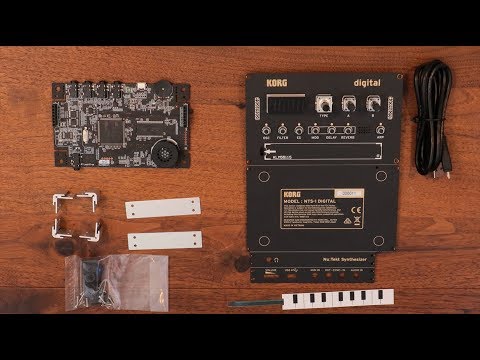

The Nu:Tekt NTS-1 digital KIT is a unique, flexible and easy DIY synthesizer that you can easily assemble yourself, without any soldering (a tool is included). KORG is always building new ways to experience hands-on, fun music making. Now, you can too.

The first of its kind from KORG’s DIY-focused Nu:Tekt brand, NTS-1 packs a powerful synth and multi-effects engine into a compact form factor that you can carry and connect anywhere. Its DIY nature means it’s also very customizable. Explore the possibilities.

NTS-1 is also completely compatible with the logue-SDK*, so it is possible to run any custom oscillator and effect content available for minilogue xd and prologue, or, create your own.

*When using 3rd-party plug-ins on the NTS-1, please consult with the developer first as the content may sound differently than with minilogue xd or prologue based on polyphony.

Equipped with AUDIO IN, SYNC IN, SYNC OUT and MIDI IN connectors, the NTS-1 can easily be used in conjunction with other hardware and software. You can control it using external MIDI controllers and sequencers, use it to modify any audio signal with its powerful digital effects, or even sync it to other hardware and jam along.

It’s also USB micro-B powered, so you can plug it directly to a portable battery and take it anywhere with you. You can also connect to your computer’s USB port or directly to the power supply using a standard USB power plug.

• Keyboard: Ribbon keyboard
• Sound generation: 1 Digital Oscillator, 1 Multimode filter, 1 EG, 3 LFO
• Effects: MOD (CHORUS, ENSEMBLE, PHASER, FLANGER), DELAY, REVERB
• Input/output jacks: Headphone jack (3.5 mm stereo mini phone jack), AUDIO IN jack (3.5 mm stereo mini-phone jack), SYNC IN jack (3.5 mm stereo mini-phone jack, 20V maximum input level), SYNC OUT jack (3.5 mm stereo mini-phone jack, 5V output level), MIDI IN connector (3.5 mm stereo mini-phone jack) connector, USB port (micro B type)
• Power supply: USB bus power mode, Current consumption: 500 mA or less
• Dimensions (WxDxH): 129 mm x 78 mm x 39 mm/5.08” x 3.07” x 1.54”
• Weight: 124 g / 4.37 oz.
• Included items: USB cable, owner’s manual, screwdriver
• *When using 3rd party plug-ins on the NTS-1 please consult with the developer first as the content may sound differently than with minilogue xd or prologue based on polyphony.
