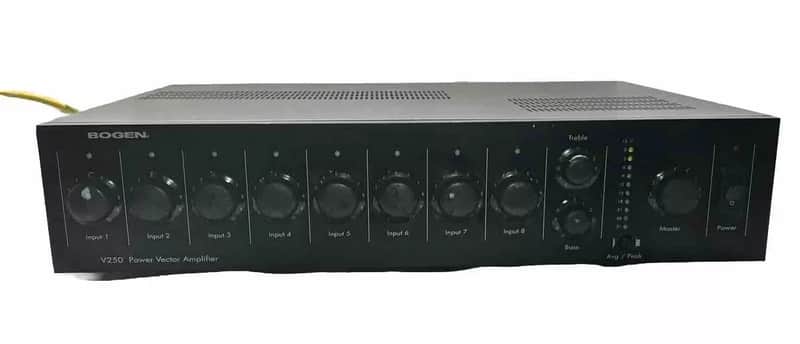

Bogen V250 Power Vector Modular Input 250W Amplifier WITH TBL1S & 2 MIC1S Module 90s

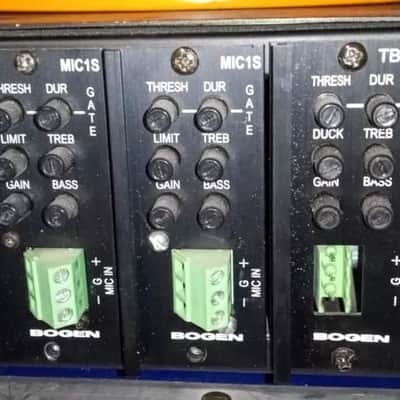

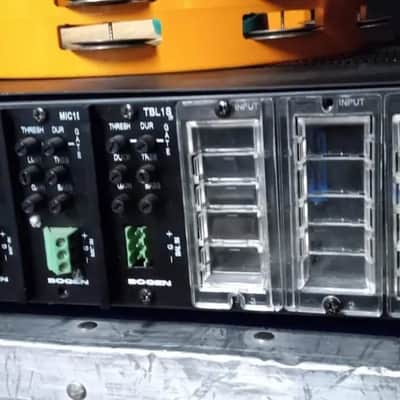

Used but still works like new! Comes with 3 modules already installed - TBLS1 and 2 MIC1S inputs. Bogen Communications TBL1S Features: Transformer-isolated line level input Gain/Trim control Bass & Treble controls Variable ducking level when muted Fade back from mute Screw terminals Bogen Communications TBL1S Specifications: Gain: -11 dB to +19 dB Frequency Response: 10 - 40 kHz (+0/-3 dB) S/N (20 Hz - 20 kHz): -75 dBV Distortion: < 0.3%, 20 Hz - 20 kHz @ 1V Input Impedance: 10k ohms/600 ohms (jumper selectable) Gate Threshold: 5 mV to disable Gate Duration: 0.5s to 5s Priority: Four levels Duck Level: -10 dB to -72 dB Tone: +/- 10 dB @ 100 Hz & 10 kHz CMRR: > 80 dB @ 1 kHz Controls: Gain, Bass, Treble, Duck, Gate Threshold, GateDuration Connector: Pluggable Euro Screw Type Dimensions (WxHxD): 1-3/8" x 3-1/8" x 3-1/2" Weight: 3.8 oz. The MIC1S from Bogen is a Transformer-Balanced Microphone Input Module with a screw terminal connector. This module has 24V phantom power and is bus assignable. Controls Gain Bass Treble Limit Gate Threshold Gate Duration About the unit: The 250W Bogen V250 Power Vector Amplifier features 8 module bays for a wide array of inputs and outputs. Modules are separately available for signal processing and inputs such as: balanced and unbalanced inputs, stereo or mono, telephone systems/PBXs, transformer-isolated, microphones, tone generator, and bridging. The Power Vector automatically senses each module and inserts it into the signal path. A 5-position barrier strip allows for 4-/8-ohm or 25/70V output loads. When you need an amplifier with flexibility and reliability, the Power Vector V250 is the obvious choice. 8 module bays for inputs and outputs. Each input has an independent volume control 4 levels of priority between modules 125 Hz Lo-cut filter for module 6 11-segment LED output level meter monitors the output level of the power amplifier with peak and average meter switch Grounded, un-switched AC convenience receptacle with a 500W maximum capacity provided for external equipment Remote volume control panel can operate motorized volume control (RVCP sold separately) Number of Channels 8 Amplifier Power Rating 250 W Load Impedance / Voltage 70 / 25 V 4 / 8 Ohms Audio I/O 1 x RCA Unbalanced Pre-EQ Output 1 x RCA Unbalanced Signal Processor Output Amplifier Form Factor/Type Tabletop Number of Channels 8 Amplifier Power Rating 250 W Load Impedance / Voltage 70 / 25 V 4 / 8 Ohms Performance Frequency Response 45 Hz to 20 kHz (70/100 V) 20 Hz to 20 kHz (Low-Z) SNR System: -94 dB Aux Module: -70 dB Mic Module: -60 dB Telephone Module: -70 dB Distortion < 0.5% Signal Processing Ducking/Muting Yes Connectivity Audio I/O 1 x RCA Unbalanced Pre-EQ Output 1 x RCA Unbalanced Signal Processor Output Number of Module Slots 8 Power AC Outlet 500 W Max Load (Unswitched, Grounded) Physical Dimensions 16.5 x 3.5 x 12.0" / 419.1 x 88.9 x 304.8 mm Weight 40 lb / 18.1 kg Packaging Info Package Weight 32.6 lb Box Dimensions (LxWxH) 20.7 x 18 x 8"
