ETC ION-XE-20-2000 Lighting Control Console with 2048 Outputs and 20 Faders

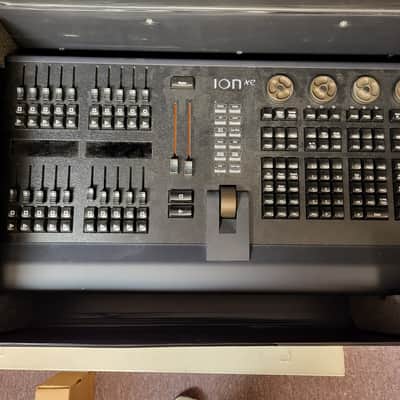

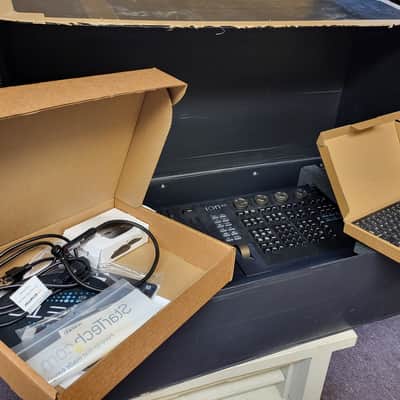

This lighting console is nearly new and in excellent condition. It is fully functional. It was delivered in the spring of 2023 after being on back order for a year. Unfortunately, the theatre closed in June 2023, and the board was only tested but not really used. Buy it here and skip the backorder wait! It is still in its original box.

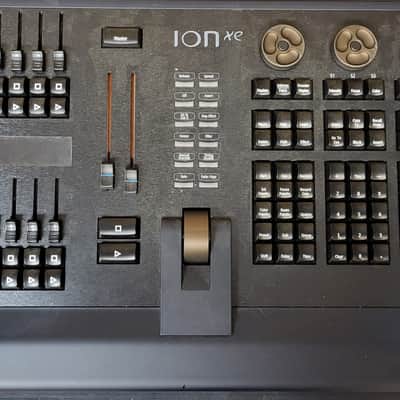

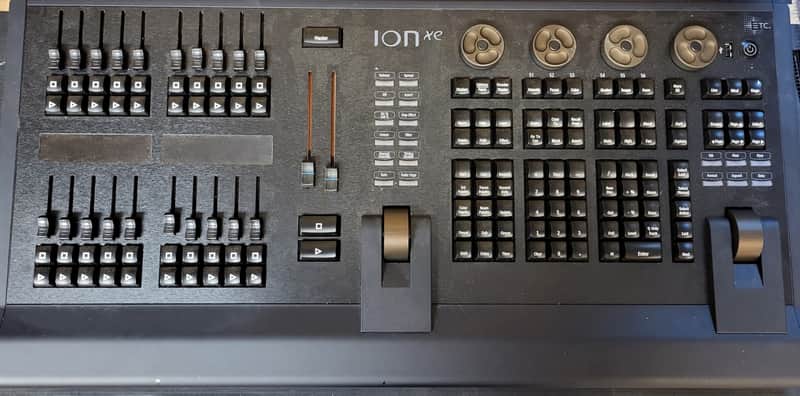

The Ion Xe 20 is a compact console that includes programming and playback controls. In addition to the backlit keyboard and full-featured software that are a part of other Eos Family consoles, Ion Xe 20 also has twenty non-motorized faders and dedicated displays to easily run control manually.

Eos Family software includes:

• Approachable yet powerful syntax for programmers of every level
• Industry-leading color control tools
• Magic Sheets for custom programming and displays
• Augment3d 3D programming and visualization environment
• Virtual Media Server function for pixel-mapping
• Timecode and automation integration
• Multi-user and multi-programmer working environment.

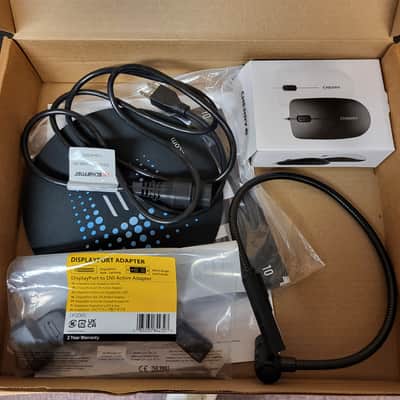

Includes:

• One three-button scroll mouse and mousepad

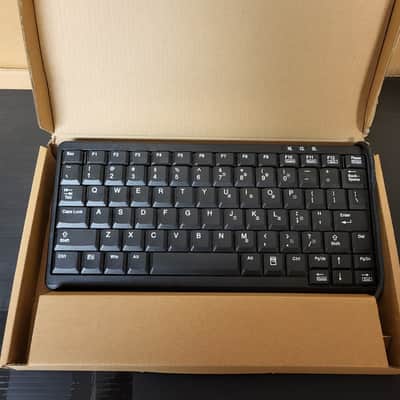

• Alpha-numeric keyboard
• Locking regionalized IEC power cord
• Two active display port to DVI adapters
• One 18-inch LED gooseneck Littlite
• Augment3d AR target kit • Dust cover

Hardware and Interfaces:

• Supports two external display port monitors (1920x1080 minimum, 3840x2160 maximum), with optional single-touch or multi-touch screen control and DDC/CI support
• 20 45mm standard faders, 100 10-fader pages configurable as channels, submasters, palettes/presets, timing and effect rate/speed playback control
• Two internal monochromatic LCD displays for fader content
• Main Playback with two 100mm standard faders
• Four encoders for non-intensity parameter control
• Dedicated high-resolution intensity level wheel
• Backlit Eos keypad
• Included USB keyboard
• Solid-state hard drive

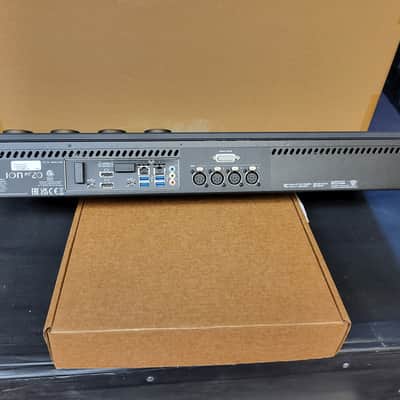

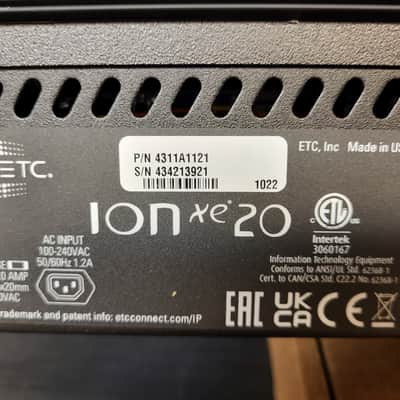

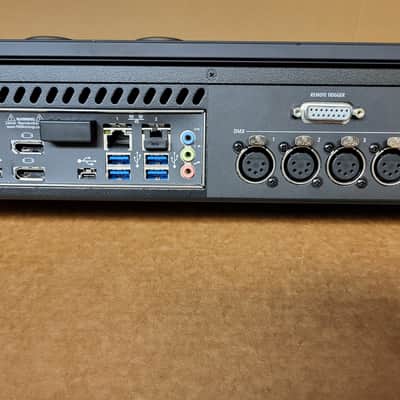

• IEC power input (100-240 VAC at 50/60Hz), fused mains power switch, locking regionalized power cable included
• Two individually configurable Gigabit Ethernet ports, RJ45 connectors

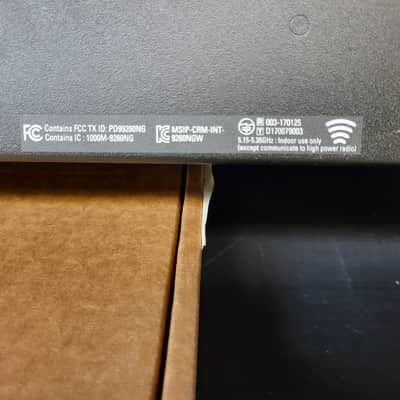

• One 802.11ac WiFi Ethernet adapter (to be enabled with future software)
• Bluetooth 5.1 for connecting input accessories (to be enabled with future software)
• sACN and Art-Net network output protocols
• Four DMX-512 / RDM 5-pin XLR ports
• Contact closure triggers via D-Sub connector
• USB 3.1 ports, for flash drives, pointing devices, keyboards (5 USB-A ports, 2 USB-C ports)
• One Littlite XLR port
• One Kensington lock port
• Multiple MIDI and/or SMPTE timecode inputs, MIDI In and Out, Analog/Serial Inputs, OSC transmit/receive, UDP transmit/receive through network interface or Response Gateways
