Fuchs Audio Overdrive Supreme ODS-30 Head, 30w, D-Sound, Loop, Footswitch, 6V6, Solid

FUCHS AUDIO OVERDRIVE SUPREME ODS-30 HEAD, 30W, D-SOUND, LOOP, FOOTSWITCH, 6V6

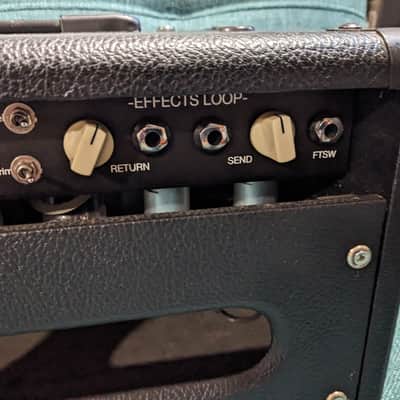

Fuchs has been a force to be reckoned with as far as guitar amplification is concerned for quite some time. This earlier Fuchs Overdrive Supreme 30 follows in this family. The ODS30 is designed to produce the widest range of tones possible, as required by today's music. Favored by many guitarists, the ODS30 features classic preamp circuitry, and a unique power supply, providing you with the sounds you want at the volumes you need. Featuring an input gain control to set the clean channel level and first drive level to the overdrive stage, the features a variety of controls to amp up the gain and the drive, as well as tone shaping switches to provide brite, deep, and rock/jazz settings. The original concept for the ODS series was to get the famous Dumble sound heard on his Overdrive Supreme amp he custom built. Fuchs ODS amp offer all that and much more in terms of versatility. The ODS features a full time effects loop which can handle both line and pedal level signals. It can be run in series or parallel modes, and remains live, whether used as a line out (to drive a mixer or sound system) or a line in (for guitar synth, keyboard, drum machine, etc.). A spacious Accutronics 3-spring long decay reverb pan is used for a natural warm, yet detailed reverb.

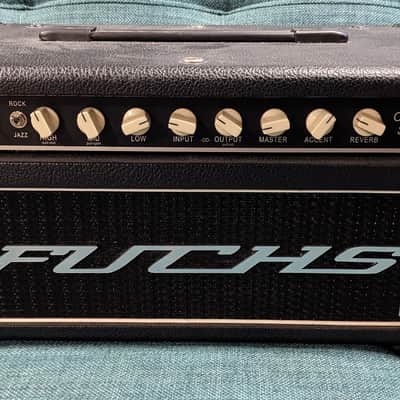

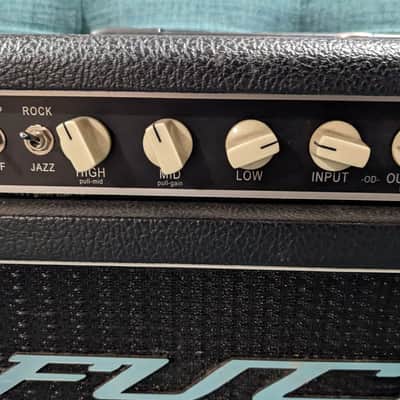

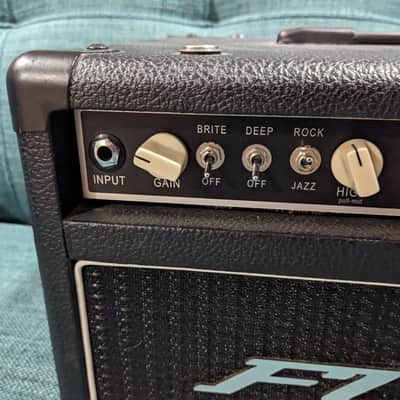

The clean channel has brite and deep switches, as well as a rock/jazz switch, which changes the way the tone controls operate. Rock is a more aggressive and punchy bright tone, which jazz is lean and audiophile-like, being more balanced and smooth. There are passive high, mid and low controls. The high control pulls for a mid boost, the mid control pulls for gain boost (which bypasses the tone controls). The clean channel acts as a preamp to the overdrive channel, and the tone controls and EQ switches are all active during overdrive use, including all boosts.

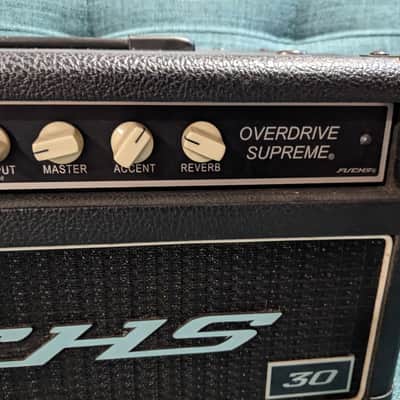

The overdrive channel features separate OD in and OD out controls. OD-in sets the level of saturation in overdrive, while the OD out control sets the final balance between clean and dirty channels. There is a global master volume, master reverb and accent control, which adds presence and edge to the output stage.

The entire audio signal path is fully tube (except reverb). The ODS features a regulated high voltage DC supply for lowest noise, consistent tone despite line voltage variations, and also features regulated DC preamp tube heaters for additional noise reduction. These techniques are used in the finest audiophile and tube studio equipment, and are unique to guitar amps.

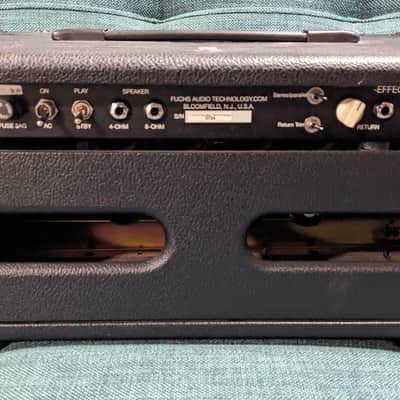

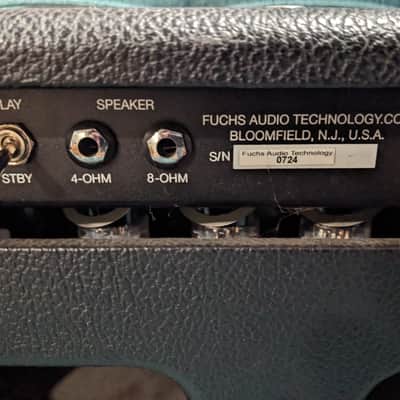

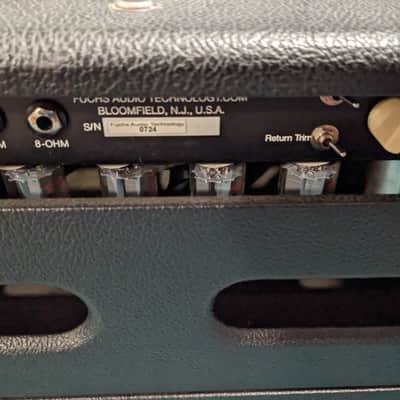

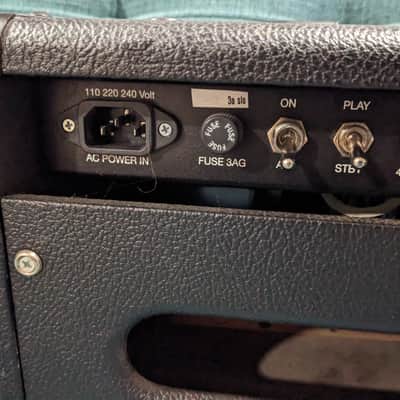

The output stage features separate 4 and 8 ohm outputs, AC and standby switches, as well as a detachable IEC power cord and external fuse. The chassis is made of aircraft grade aluminum, finished in gold iridite for corrosion protection. Fuchs use a combination of point to point and circuit board construction. All tubes are chassis mounted, while the power and output transformers are mounted directly to the chassis. By using single point grounding, the amp is quiet and free of hum at all operating levels. High current power transformers and audiophile grade output transformers are standard, and are custom built to their specifications."

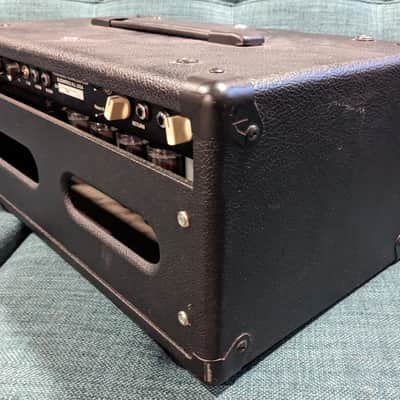

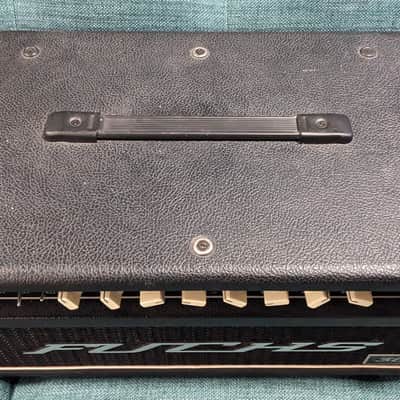

This Fuchs Overdrive Supreme 30 Head is a used item in close to excellent condition. You will find this item is nice shape with only minor wear marks on the outer case from normal use. No deep marks or scratches. This amp has only seen minor diagnostic repair work and all diagnosis and work was done at Fuchs location in NJ. This amp has always performed and sounded great. All controls and materials are original. 2 Button footswitch included. I have used his amps for almost 20 years and there is nothing like them. This spare is being sold for my next Fuchs project. You will receive this item well-packed but without its original packaging or paperwork. Manuals are available online. Please contact this seller for additional information. Returns are limited so please ask all questions before bidding as your satisfaction is important to me before you purchase. Customer 100% satisfaction is our one and only goal. The only way to show that to our customers is via our feedback. If for some reason you are not 100% satisfied, please do not leave negative or neutral feedback. Give us a chance to fix or resolve any problem you may have with your transaction. We want to earn every single positive feedback because we don't plan to work with you only once, we want you to come back. PayPal preferred and all payments need to clear before shipping. Insurance included with shipping. Buyer is responsible for any and all local taxes or custom duties with this purchase. Most importantly, thank you for looking!

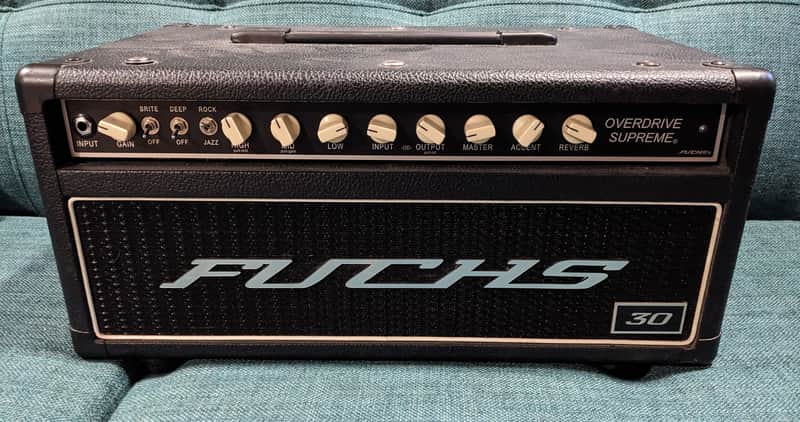

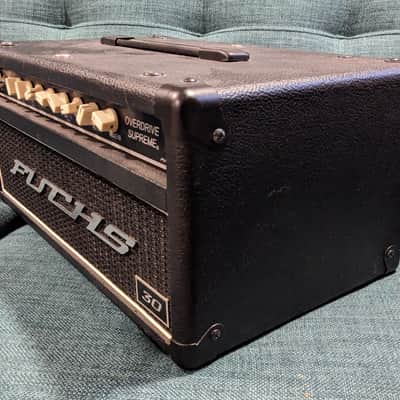

Fuchs Overdrive Supreme 30 Head

• 30 Watts
• 6v6s
• Black Tolex

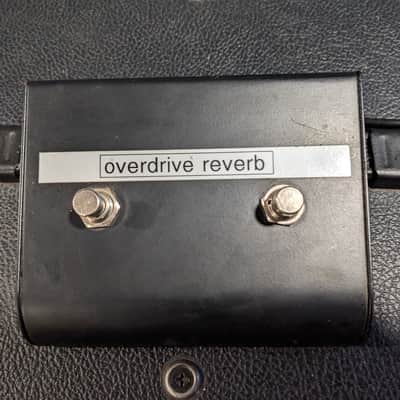

• 2 Button Footswitch
• #0724
