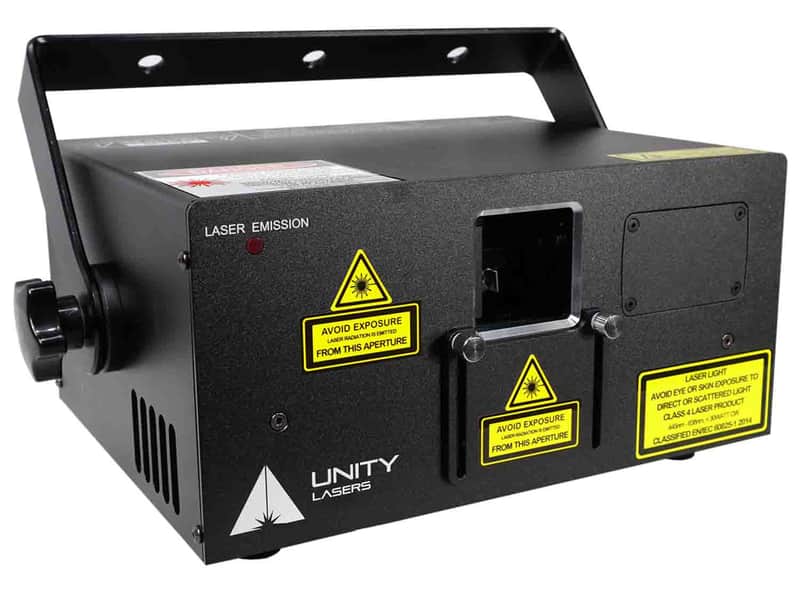

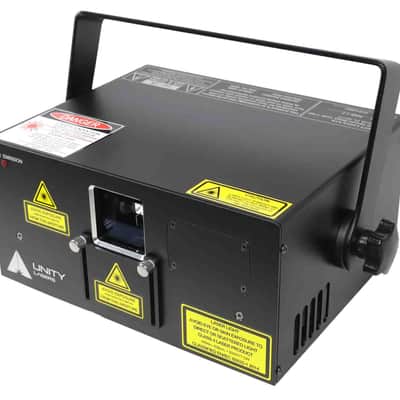

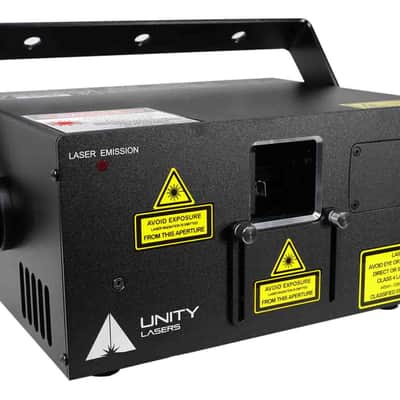

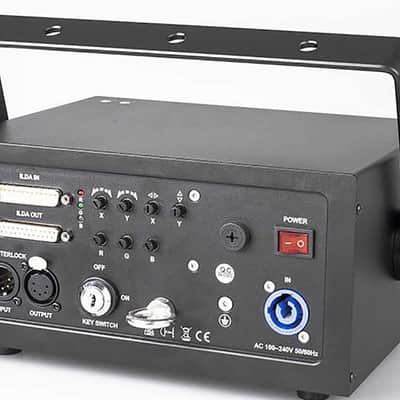

Unity RAW 1.7 Laser Light Show Fixture

The Unity RAW 1.7 Laser Light Show Fixture is a full-color RGB, diode-based laser system, designed for clients who need impactful aerial beam effects, with the ability to also produce laser graphics, logos, and text.

Applications

The RAW Series is perfect for DJs, nightclubs, and entertainment venues, where you need an impactful and easy-to-use laser system, at an economical price point. It is suitable for venues up to 2,000 people incapacity.

Control

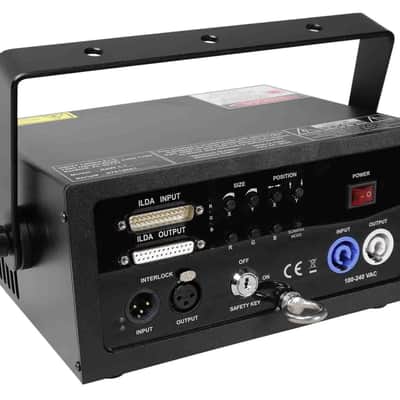

Raw Series lasers are incredibly easy to setup and use. And can easily be controlled via ILDA, or via DMX / ArtNET (with Pangolin software). The Raw1.7 RGB Laser fixture required to us a Laser Software to operate and We recommend using the Pangolin FB3QS or FB4 control hardware, with QuickShow software.

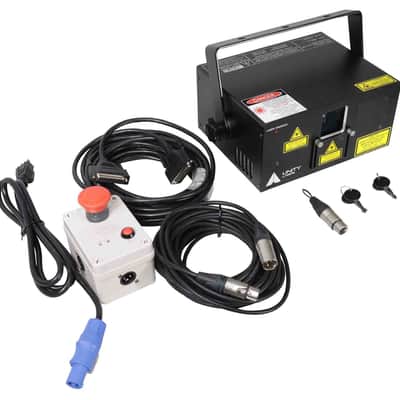

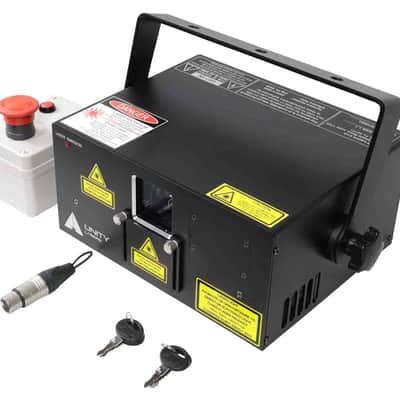

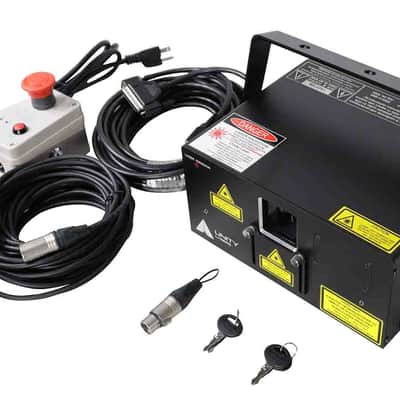

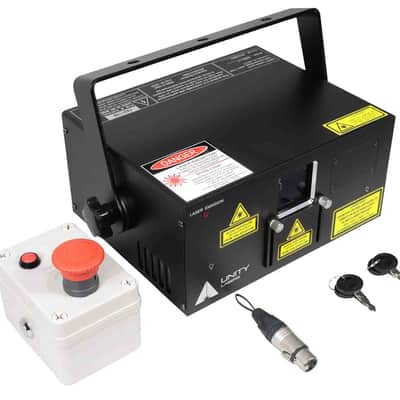

What’s in the box?

The RAW 1.7 includes all of the accessories you'll need right out of the box.

RAW 1.7 Laser Projector

ILDA cable

E-stop safety system and E-stop cables

Safety Interlocks

Safety Keys

Product Specification:

Guaranteed optical output: >1700mw

Control signal: ILDA

Scanning system: 25kpps @ 8°

Safety: fully complies with the latest EN 60825-1, and FDA regulations

Beam size [mm]: 5 x 3

Beam divergence: <1.1mrad [full angle]

Modulation: analog, up to 50kHz

Power requirements: 100-230V/50Hz

Consumption: max. 90W

Operation temperature: 10-40 °C

Ingress protection rating: IP54

Dimensions: Length: 238

Width: 192

Height: 114

Shipping Dimensions: 13.00"L x 11.00"D x 12.00"H

Shipping Weight: 16.00 lbs
