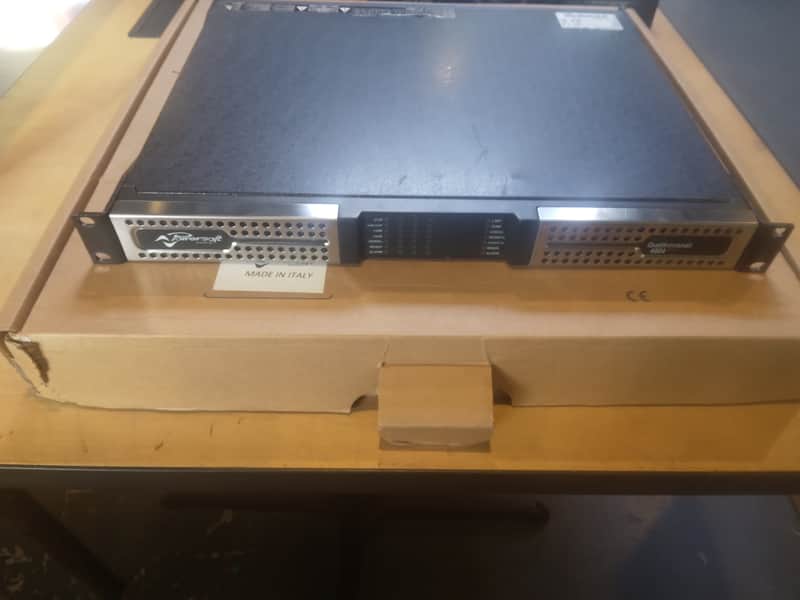

Powersoft - QUATTROCANALI 4804 DSP+D 4800W/4-Channel Flexible Amplifier with DSP and Dante
This listing has ended
See similar gear from other Reverb sellers
Our users rate Reverb
**This amp were used by a single owner for speaker testing purposes. Well cared for in a smoke-free environment. Has some visible wear. Fully functional. No Warranty.**
Overview
Quattrocanali 4804 offers the traditionally amazing sound quality and reliability of all Powersoft products.
The patented SRM (Smart Rails Management) technology allows to maximize the efficiency of the system and drastically reduce power consumption in any load and usage condition. Quattrocanali features the lowest thermal dissipation in the industry, reducing the need for external cooling devices.
Quattrocanali is designed to operate with Lo-Z (from 2 Ω) and 70V/100V distributed lines or any mix of the two.
DSP+D versions of the Quattrocanali grant in-depth control and monitoring via Armonìa, tailoring the sound and managing the system can be done by a remote, decentralized location.
This Amplifier Platform can also be trusted in mission-critical applications, such as fire alarm systems, thanks to the cleverly engineered power supply that allows reliable operation even when connected to a UPS.
MyPowersoft services are available for this product
Power supply
Patented output filter with ripple cancellation network
Low Inrush Limiting reduces AC inrush current, removing the need for expensive power sequencers
Detachable AC mains cable with IEC C19/22.2 (16A for EU, 20 A for USA) socket
Protections
Fully protected circuit design with:
Ac protection: shut down power supply when AC mains voltage is outside operating range
Clip limiter: prevents severely clipped waveforms from reaching loudspeakers, while still maintaining full peak power output
DC protection: protects against infrasonic signal at the outputs
VHF protections: protects the loudspeakers against non audible, strong, non musical high frequency signals
Short circuit protection: protects the amplifier from short circuit or other stressful events for the output circuits with automatic protection reset
Long term limiter: protects the loudspeaker against steady long term RMS (non audio) signals, by reducing maximum output
Thermal protection: output stages operating temperature up to 80 °C (176 °F)
Temperature controlled continuous variable speed fan, front to back airflow
Temperature forecast with LCD traced historical behavior
General
Fixed frequency switch-mode output stage for high grade sound accuracy
Compact size – all models only 1 RU for reduced rack cost and space
Light weight – for easier racking and shipping: 7 kg (15.4 lbs)
Standard Phoenix connectors: analog audio outputs, aux supply, alarms and GPIO
Remotely switchable double input (main and aux) per channel
Settings
Built-in defeatable clip limiters for each channel
Digital gain-attenuator control
Defeatable gate selection for each channel
User selectable gain/sensitivity
User selectable maximum output power for each channel
User selectable maximum mains current draw
Lockable set-up by user selectable access key code
Built in remote control via the RS-485 interface provides full diagnostic, operational setting and system monitoring
Digital Signal Processing
TI C6000 DSP platform
AD/DA converter: dual 24bit @ 48 kHz Tandem® architecture
Input/output independent equalizers per channel providing PEQ, raised cosine, shelving IIR filters as well as custom output FIR filters
Delay up to 100 ms for time alignment
Active DampingControlâ„¢ for cable compensation
Peak, RMS voltage, RMS current, TruePowerâ„¢ limiters
Remote Control and Monitoring
Via Software:
Control and diagnostics monitoring via ArmoniaPlus
Dedicated WebApp
Via Hardware:
Attenuation (from 0dB to 26dB)
High-pass filters (35Hz, 70Hz)
Lo-Z/Hi-Z/70V/100V output selection
Adjustable gain (from 26dB to 35 dB)
GENERAL
Output power per Channel
Output power per Channel 1500 W @ 2 Ω 1200 W @ 4 Ω 1200 W @ 8 Ω
Bridge mode 3000 W @ 4 Ω 2400 W @ 8 Ω
Max output voltage / current
Max unclipped voltage @8 Ω 139 Vpeak
Current 45 Apeak
AC MAIN POWER
Power supply Universal, regulated switch mode with PFC (Power Factor Correction)
Nominal power requirement 100-240 V ±10%, 50-60 Hz
Operating voltage 90 V – 264 V
Power consumption/current draw
Idle 115 V: 31.3 W – 0.47 A 230 V: 31.6 W – 0.27 A
1/8 of max output power @ 4 Ω 115 V: 823 W – 7.7 A 230 V: 840 W – 4.3 A
