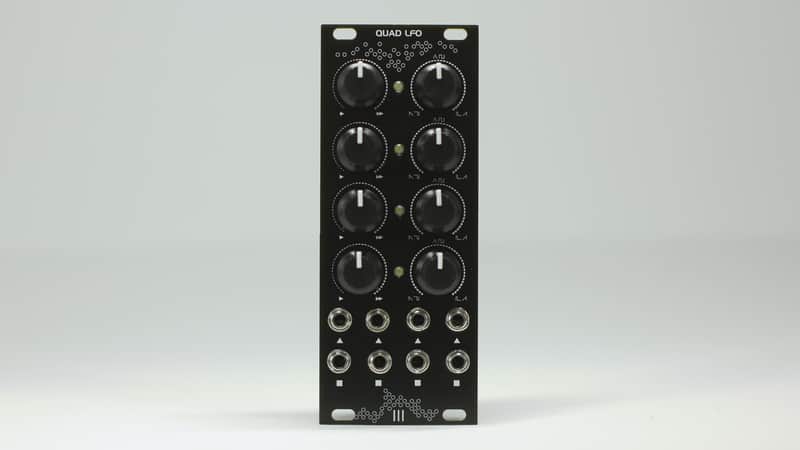

Tre Modular - Quad LFO

Tre Modular - Quad LFO features four independent Low-Frequency Oscillators.

This module is designed to offer both super slow and low audio rate speeds. It ranges from 0.013Hz to 40Hz. You can use it for slow moving patches or for audio rate modulation.

Other notable feature of this Quad LFO is skew/pulse width control. It is similar to one found on Korg`s MS-20 Modulation Generator. Rotate the knob to morph between sawtooth, triangle, and ramp waveforms. Turn counterclockwise for sawtooth waveform and clockwise for ramp waveform and in the middle it produces triangle waveform.

At the corresponding channels square wave output this control changes the pulse width of the square wave.

Specifications:

Speed: 0.013Hz( One cycle in 74 seconds) - 40Hz

Output LVL: 10Vpp

Power consumption :

14mA at +12v

16mA at -12v

Max depth: 2.5cm

Width: 10HP

Panel thickness: 2mm

Module comes pre assembled. Package includes power cable and mounting screws.

Shipping:

In Latvia DPD or Omniva.

Rest of the world Latvian post.

Due to current US import tariffs (15% on EU goods), shipping costs now include estimated import duties. No additional fees should be charged on delivery.
