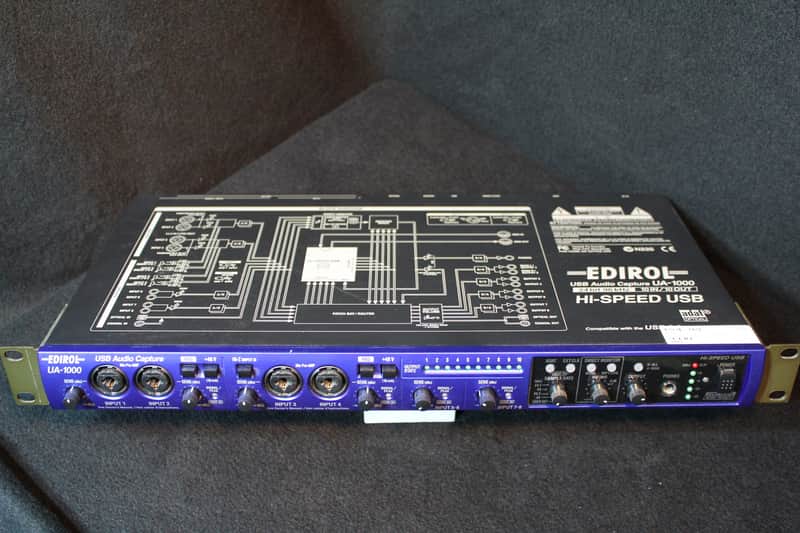

Roland Edirol UA-1000 Audio Interface Rack MountBlue/Blk
This gear has sold
See similar gear from other Reverb sellers
Our users rate Reverb
Ideal as the centerpiece of a project studio and equally at home in your mobile studio.
The world's first multiport, hi-speed USB (USB 2.0) audio recording interface. A single cable connects it to the USB 2 port of your computer. Delivers exceptional audio capabilities on 10 separate channels via a wide variety of connections, offering high quality microphone preamps using premium analog components. These include XLR/TRS combo jacks, Hi-Z guitar, S/PDIF, 8-channel ADAT, MIDI, and even inserts for effect send/return.
- Hi-speed USB 2.0 supports 480 Mbps transfer speed
- 10 In/10 Out 24-bit/96Khz full-duplex performance
- 4 front-mounted XLR/TRS combo jacks with phantom power
- High-quality mic preamps with premium analog components
- S/PDIF (Optical/Coaxial), 8-channel ADAT, MIDI, Word Clock
- 4 inserts for effects sends and returns
- ASIO 2.0 and WDM drivers
- Zero-latency direct monitoring
- Striking blue 1U metal rackmount
- Main Functions
- Multiple 10-in/10-out
- Digital Audio Interface
- Unique Feature
- Hi-speed USB
- Connection
- USB 2
- Main Function
- Multiple 10-in/10-out
- Digital Audio Interface
- Channels
- 10 inputs
- 10 outputs
- Full duplex
- Signal Processing
- AD/DA 24-bit
- Internal 40-bit
- Sample Rate
- Up to 96 kHz
- Frequency Response
- 96kHz: 20Hz-40kHz (+0 dB/-3dB)
- 88.2kHz: 20Hz-40kHz (+0 dB/-3dB)
- 48kHz: 20Hz-22kHz (+0 dB/-3dB)
- 44.1kHz: 20Hz-20kHz (+0 dB/-3dB)
- Inputs/Outputs

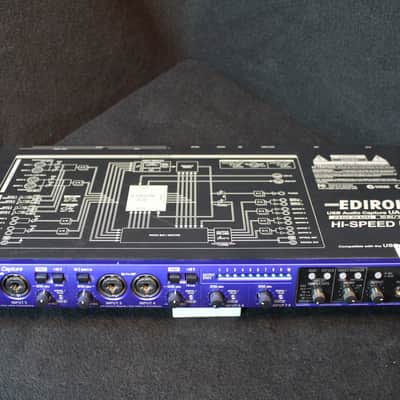

- Front Panel
- Input Jack 1 to 4 (XLR type / 1/4" TRS phone type)
- XLR type (balanced / phantom power)
- 1/4" TRS phone type (balanced)
- Input Jack 3 supports Guitar Hi-Z.
- Headphones Jack (Stereo 1/4" phone type)

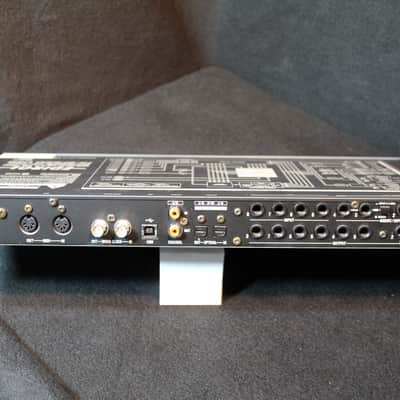

- Rear Panel
- Insert/Input Jack 1 to 4 (1/4" phone type)
- Insert: TRS
- Input: unbalanced)
- Input Jack 5 to 8
- (1/4" TRS phone type (balanced))
- Output Jack 1 to 8
- (1/4" TRS phone type (balanced))
- Digital In Connectors (Coaxial, Optical)
- Digital Out Connectors (Coaxial, Optical)
- MIDI Connectors (In, Out)
- Word Clock Connectors (In, Out) (BNC)
This item is sold As-Described
This item is sold As-Described and cannot be returned unless it arrives in a condition different from how it was described or photographed. Items must be returned in original, as-shipped condition with all original packaging.Learn More.
| Listed | 11 years ago |
|---|---|
| Condition | Very Good (Used) Very Good items may show a few slight marks or scratches but are fully functional and in overall great shape.Learn more |
| Brand | |
| Model |
|
| Finish |
|
| Made In |
|
