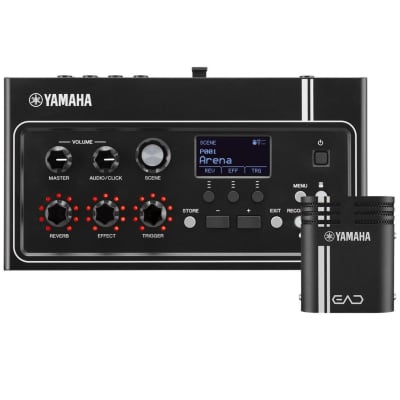

Yamaha EAD10 Acoustic Drum Module with Mic and Trigger Pickup Brand New in Original Packaging SKU: EAD10 Features

• Enhances musical outcome
• 50 presets and 200 user scenes
• Simple installation
• Two in one kick sensor/stereo mic
• Easy to share and transfer
• Suitable for peforming or practicing

Product Description

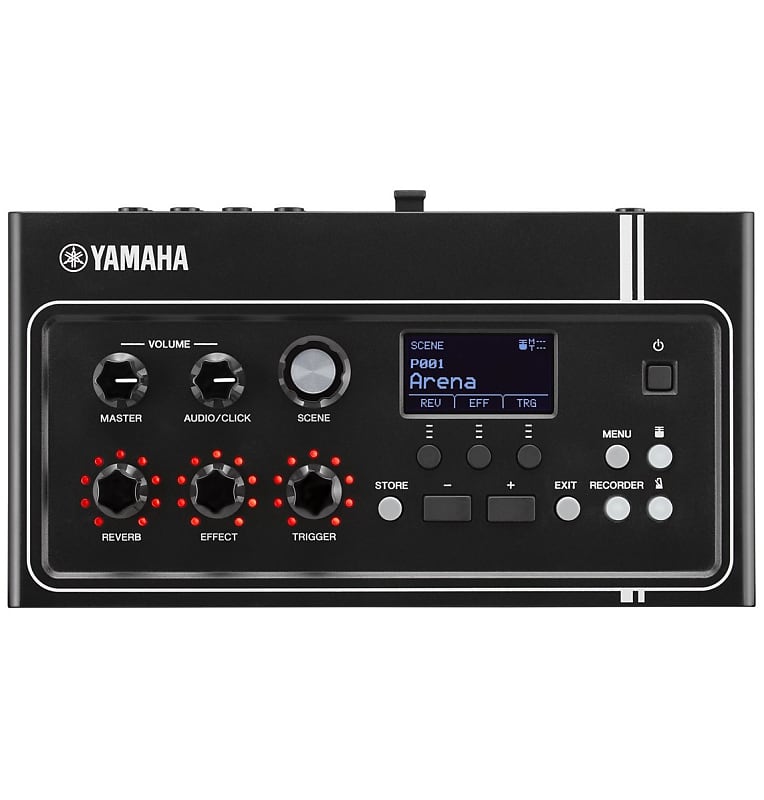

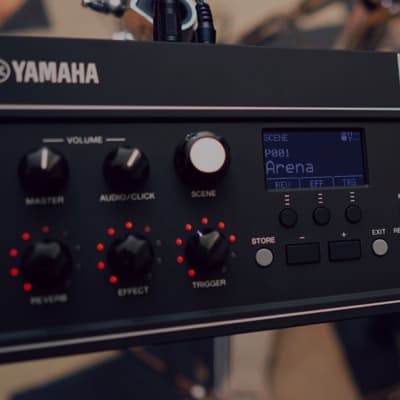

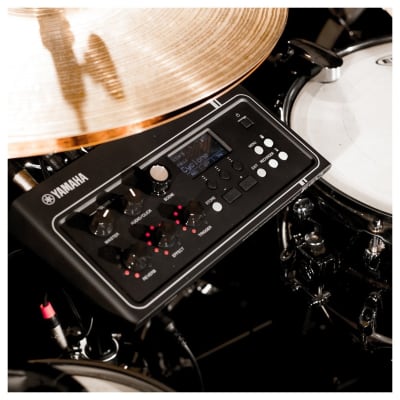

The EAD10 acoustic electronic drum module instantly transforms your acoustic drum kit into a powerful digital/electronic hybrid with sampled sounds and studio quality digital effects. It allows you to play and record your acoustic drums along with your favorite artists from your music library or from tracks from your friends and share them digitally. With the free iOS app you can shoot, edit and upload videos of your drum performances. The EAD10 enhances every aspect of your drumming. The way you practice, record and perform live and makes your acoustic drums do more.

Easy Setup

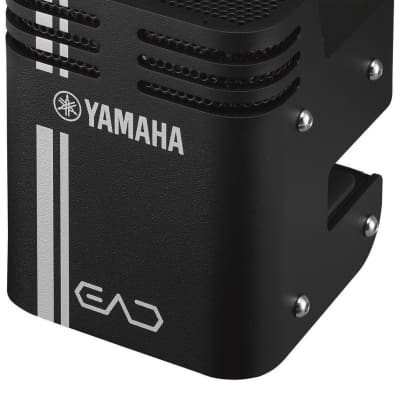

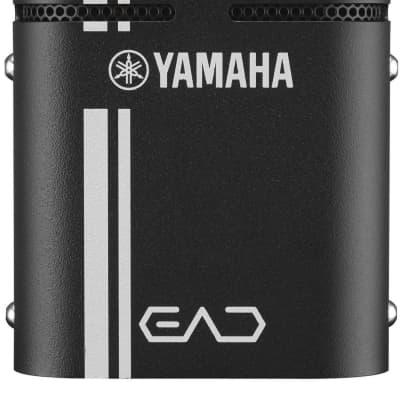

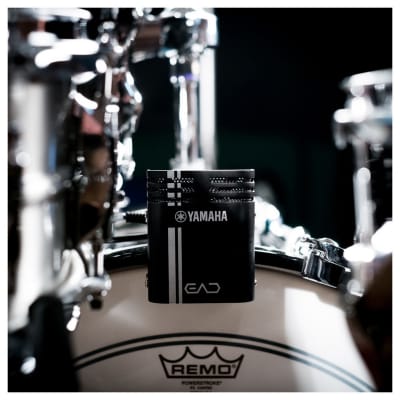

The Yamaha EAD10 system is extremely easy to install into your setup. Just attach the EAD10 sensor to your bass drum and you've created a complete hybrid system with a kick trigger and a stereo microphone. When combined, you will be able to capture and transform your acoustic drum sounds.

Sound and Expandability

The EAD10 has 50 preset and 200 user scenes that customize your drum sound and allow you to connect triggers and drum pads to augment your setup. The Yamaha EAD10 Electronic Acoustic Drum Module & Sensor is an advantageous addition to any acoustic drum system.

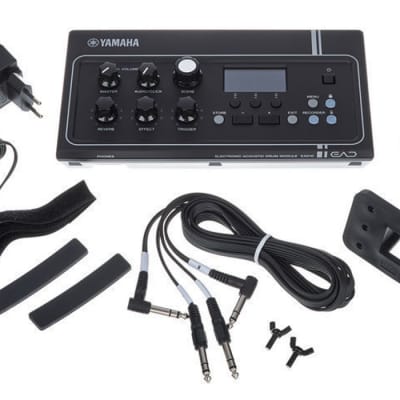

What's in the Box

• Yamaha EAD10 Acoustic Drum Module with Mic and Trigger Pickup
• Ownerƒ??s manual
• Module holder
• Power supply
• Two module holder wing bolts
• 1 pair of connector cables
• Three cable bands
• Two adhesive cushions

Specifications

Dimensions

• Width: 260 mm (main unit), 76 mm (sensor unit)
• Height: Height: 63 mm (main unit), 88 mm (sensor unit)
• Depth: 138 mm (main unit), 78 mm (sensor unit)

Tone Generator

• Scenes: Preset 50, user: 200
• Reverb: 11
• Effects: Mic: 21, trigger: 10

Trigger Sounds

• Tone generator: AWM2
• Maximum polyphony: 64
• Voices: 757

Recorder

• Recording format: WAV (44.1 kHz, 16 bit, stereo)

Audio Files

• Import limit: Up to 100
• Playback sample forma: t44.1 kHz
• Wave memory: 32 MB
• Maximum loadable sample size: 1 mono sample: 1.75 MB, 1 stereo sample: 3.5 MB
• Sample format: WAV (16 bit)

Click-Track

• Tempo: 30ƒ??300 BPM, tap tempo function
• Time signatures: 1/4 to 16/4, 1/8 to 16/8, 1/16 to 16/16
• Subdivisions: Accents, quarter notes, eighth notes, sixteenth notes, and eighth-note triplets

Functions

• Functions: Trigger sensitivity adjustment, USB audio/MIDI, headphone EQ, metronome, auto power off

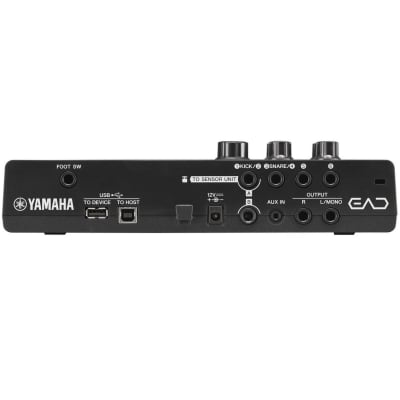

Connectors

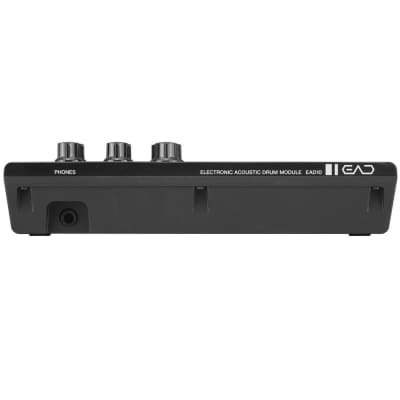

• Connectors: DC IN (12 V), PHONES (standard stereo phone), AUX IN (stereo mini), OUTPUT L/MONO, R (standard mono phone), USB TO DEVICE, USB TO HOST
• Foot Pedal: Foot SW (standard stereo phone)

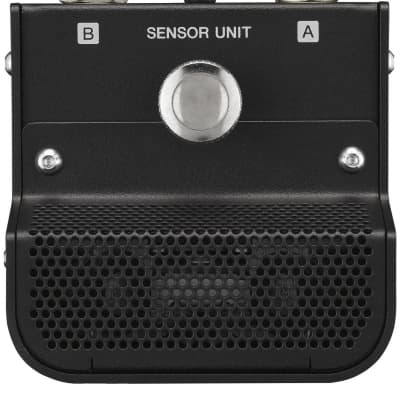

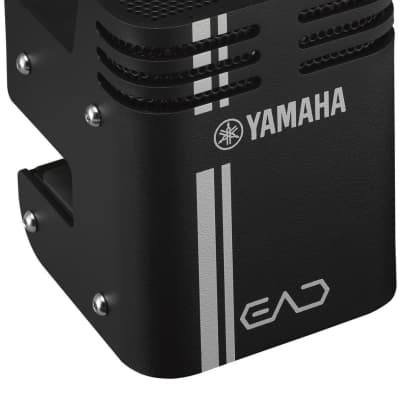

Sensor Types

• Microphone: High SPL mic ?? 2
• Trigger: Exclusive for bass drum ?? 1
